Benelli TNT125 Service Manual

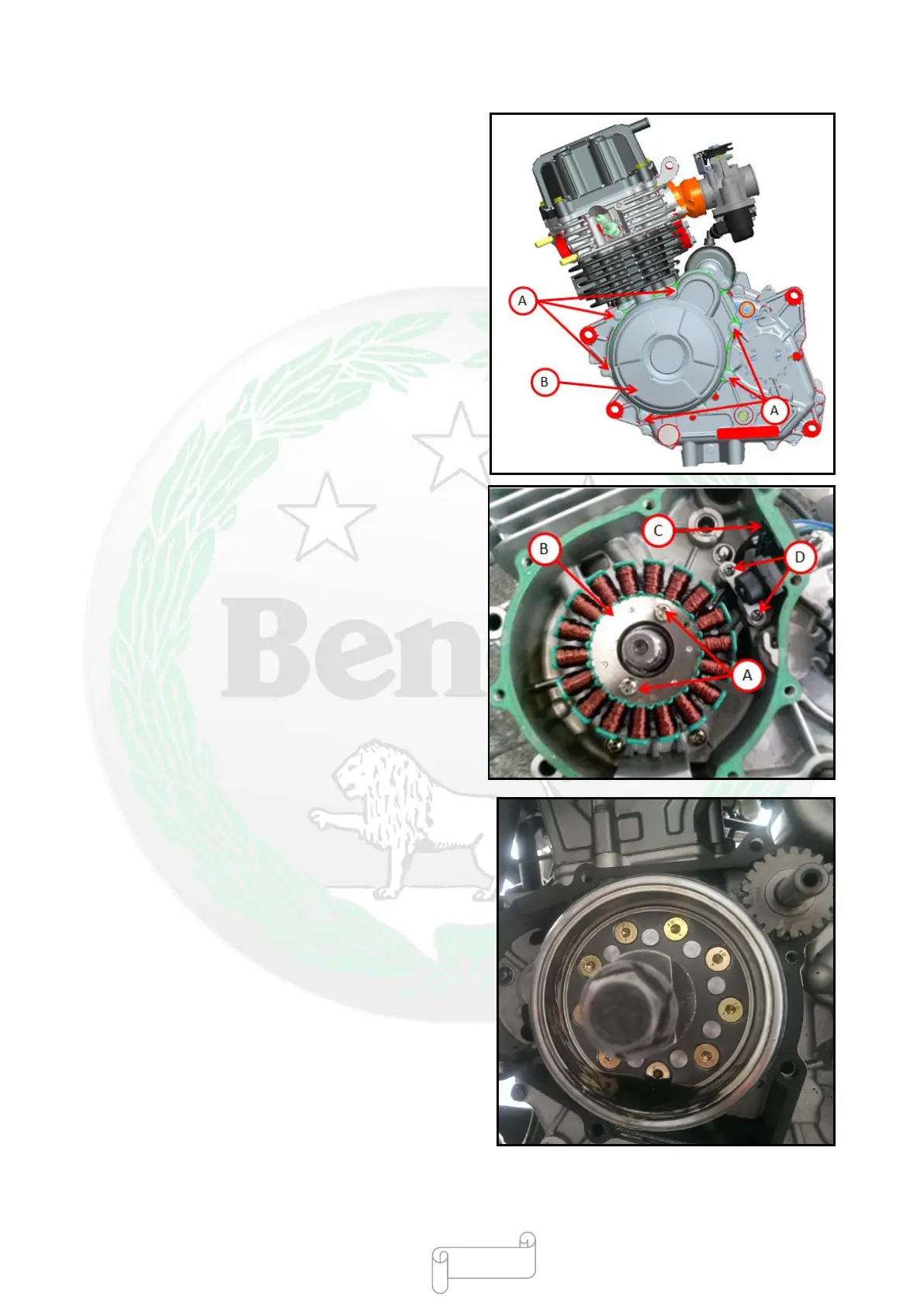

Disassembling Magneto
●Magneto power wire connector
●Put a suitable container below the magneto cover
●Loosen the left cover mounting bolt [A] and remove
the left cover [B] and coil
●Pull out the magneto power wire between the engine
and bracket
●Disassembling stator coil:
Magneto cover (see the magneto cover disassembly
section)
Stator coil bolt [A]
Stator coil [B]
Magneto outgoing line rubber cover [C]
Trigger bolt [D]
●Disassembling flywheel:
Disassemble the magneto cover (see the magneto cover
disassembly section)
Use the flywheel remover to remove the flywheel
mounting bolt.
Disassemble the flywheel from the crankshaft with the
flywheel puller
- 431 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
