Benelli TNT125 Service Manual

Installing Handlebar

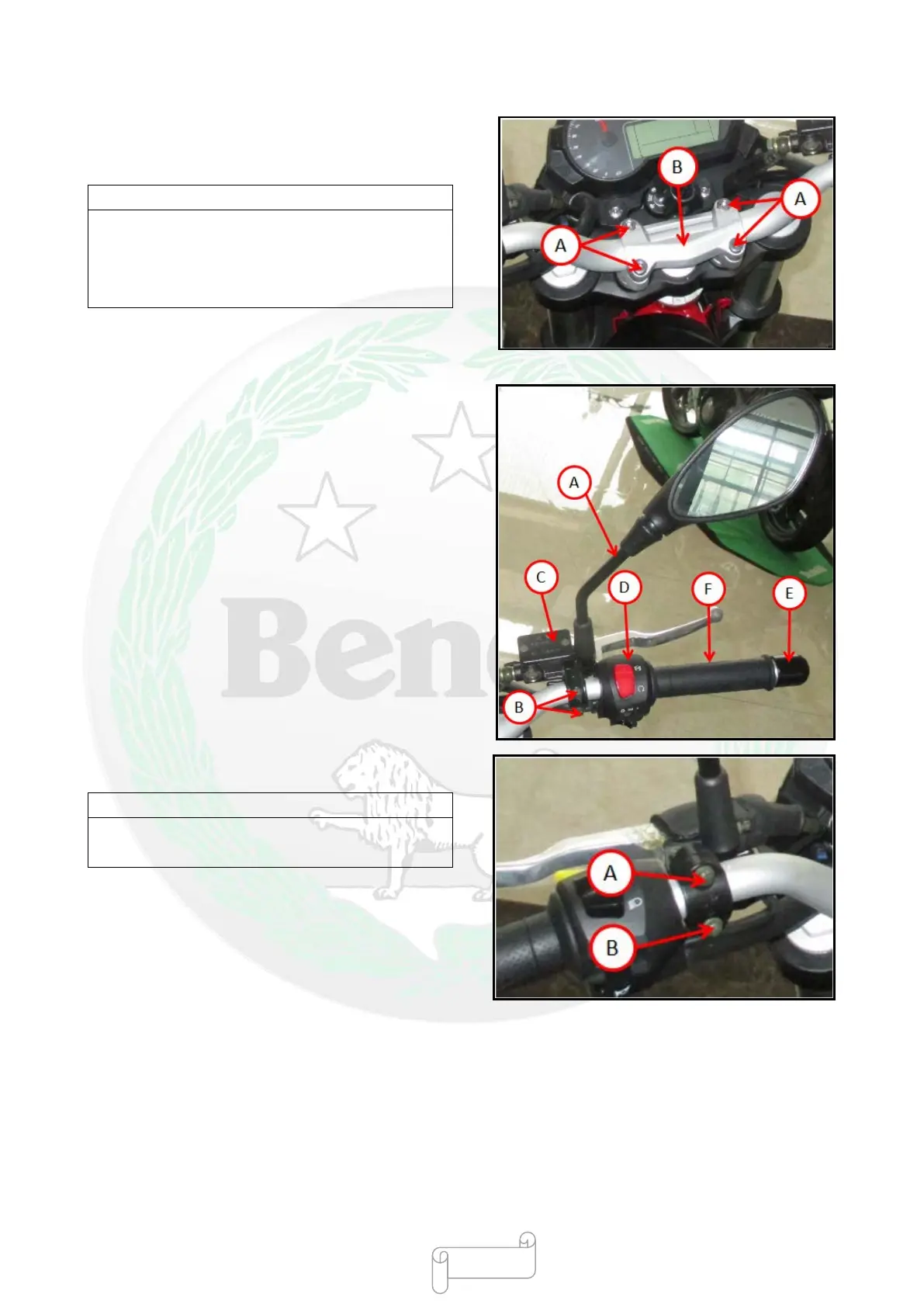

●Install the handlebar installing seat and handlebar on
the upper bracket.
●Tighten the bolt of handlebar installing seat
.
R
emark
○Lock the front handlebar installing seat bolt [A]
and then lock the other one [B].
○Lock two handlebar installing seat bolts twice
alternately to ensure that the locking torque is even.
Locking torque of handlebar installing seat bolt:
22-34 N·m
●Installing:
Front hydraulic brake master cylinder [C] (see “Master
cylinder”—“Installing Front Master cylinder”))
Right combination switch [D]
Throttle handle [F]
Throttle cable [D]
●Apply the thread fastening glue to the thread of
handlebar counterbalance bolt and then tighten the bolt.
●Installing:
Counterbalance [E]
Right rearview mirror [F]
●Installing:
Clutch handle.
Remark
○Lock the upper handlebar installing seat bolt [A]
and then lock the other one [B].
- 366 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
