Benelli TNT125 Service Manual

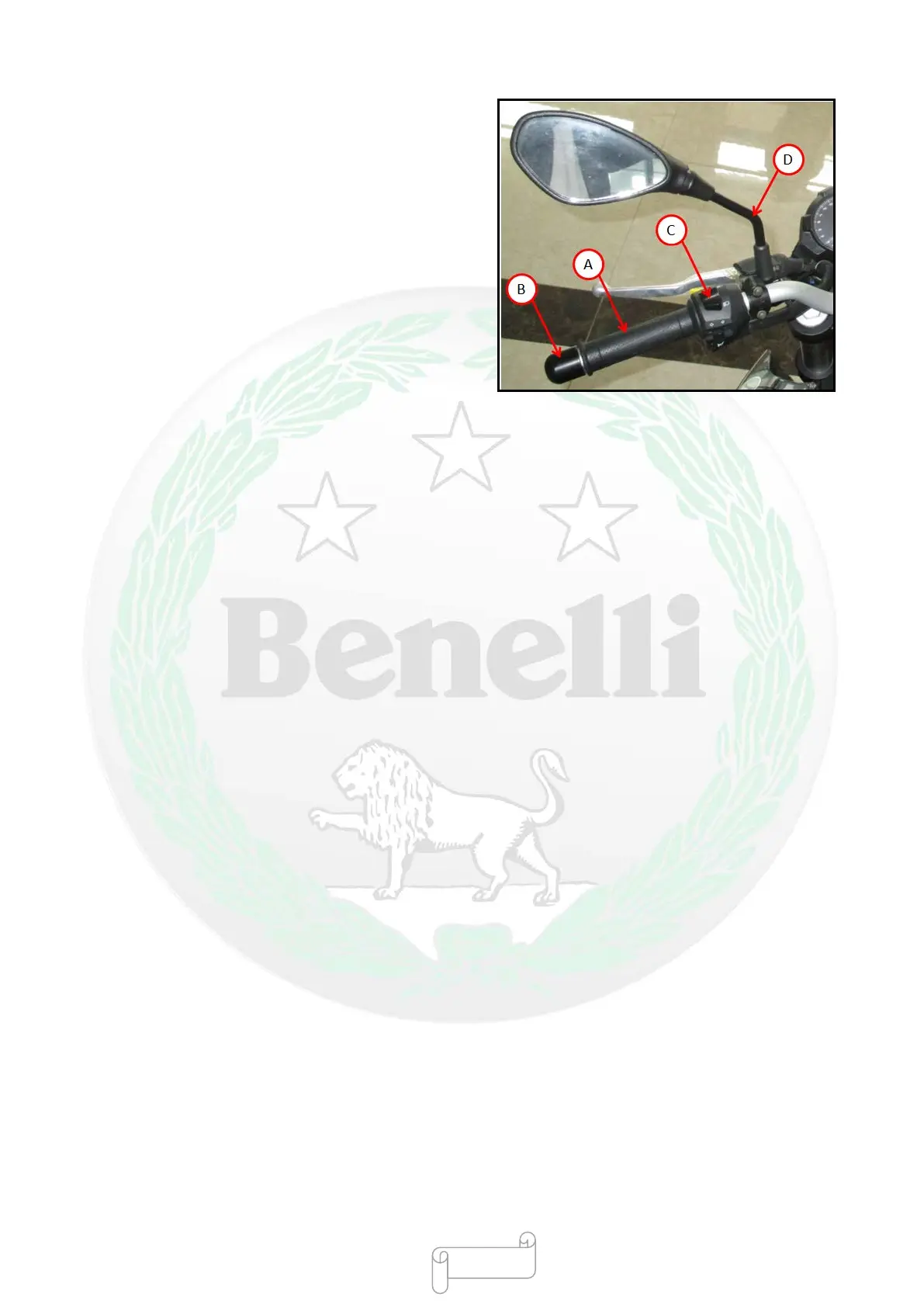

●Installing:
Left handle [A]
Left combination switch [C]
●Apply the thread fastening glue to the thread of
handlebar counterbalance bolt and then tighten the bolt.
●Installing:
Counterbalance [B]
Left rearview mirror [D]
Locking torque of combination switch fastening
screw: 3.5 N·m
- 367 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
