Drive Chain
Checking the Slackness of Drive Chain
See “Regular Maintenance”“Checking the Slackness of Drive Chain”.
Checking the Slackness of Drive Chain
See “Regular Maintenance”—“Adjusting the Slackness of Drive Chain”.
Checking / Adjusting Wheel Alignment
See “Regular Maintenance”“Checking Wheel Alignment”.
Checking the Wear of Drive Chain
See “Regular Maintenance”—“Checking the Lubrication of Drive Chain”.
Lubrication of Drive Chain
See “Regular Maintenance”“Checking the Lubrication of Drive Chain”.
Disassembling Drive Chain

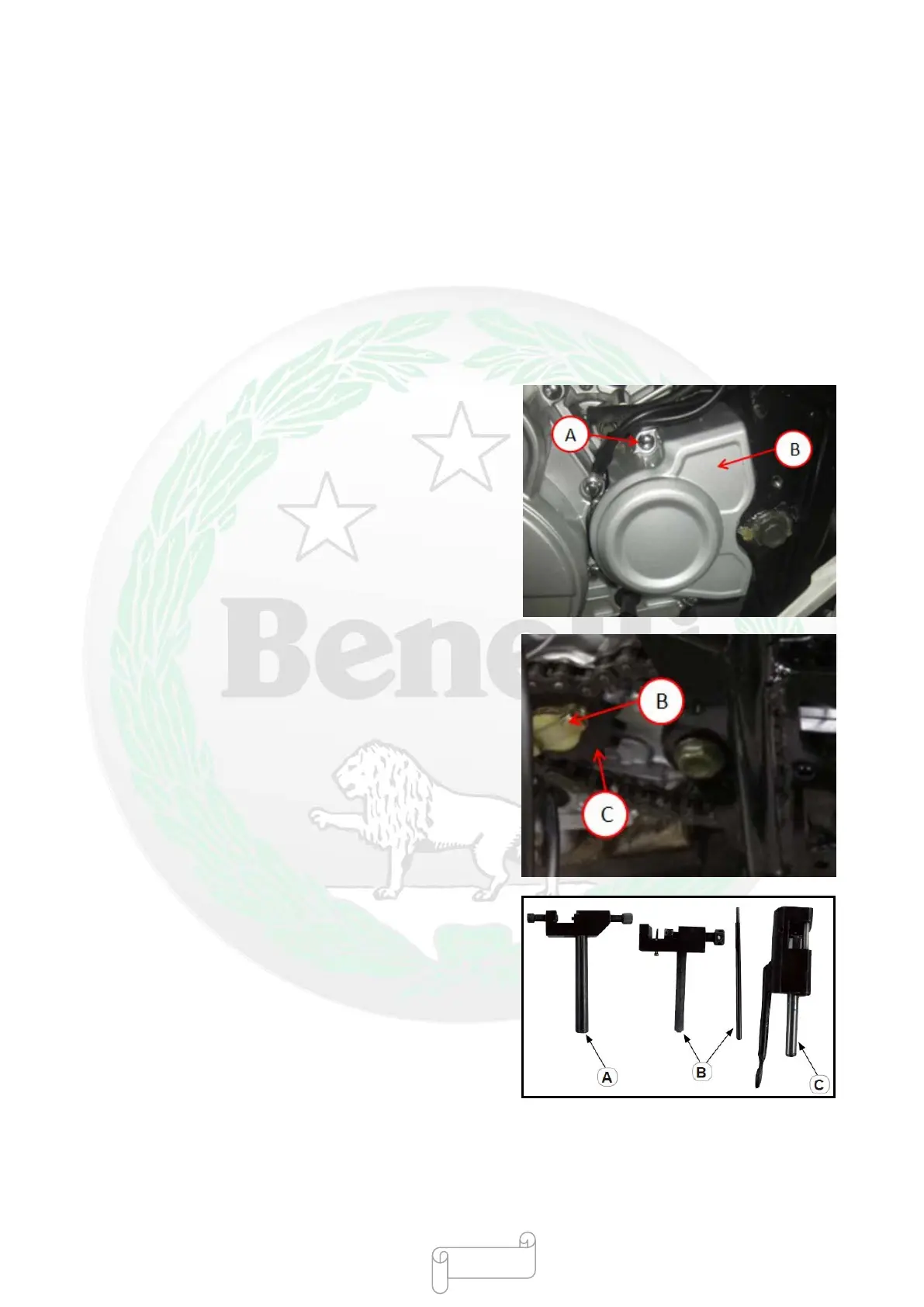

Disassemble drive chain cover screw [A] and drive
chain cover [B].
Disassemble drive chain cover from the swing arm.
Disassemble:
Drive sprocket locking nut [B]
Engine drive sprocket [C] (see “Disassembling Engine
Drive Sprocket”),
Disassemble:
Drive chain [A]
The drive chain used for this chain is equipped with
the master link of safety side plate.
Depending on the chain manufacturer’s specifications
and the type required.
Use Special Tools. There are three tools to remove the
main chain plate [A], assemble side plate [B], and
fasten it to the pin at side plate [C]
