Lubrication System

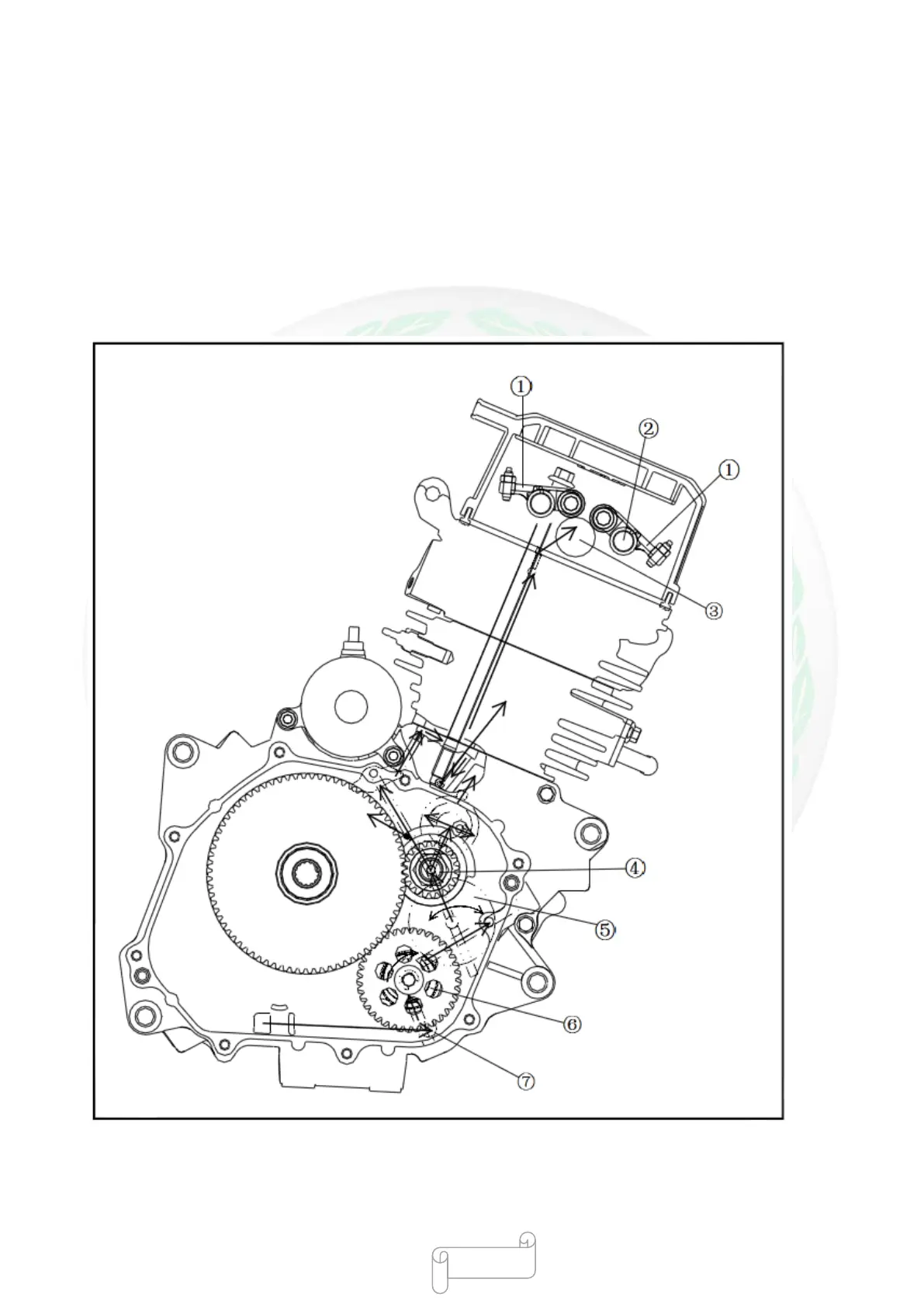

Diagram of Lubrication System

① Rocker

② Rocker shaft

③ Camshaft

④ Crankshaft

⑤ Oil filter

⑥ Fuel pump

⑦ Primary oil filter

- 198 -
