Benelli TNT125 Service Manual

Electrical Wiring
Wiring Inspection
●Visually check the melting, wear and other phenomena of
wires.
★If the wire is broken, replace the damaged wire.

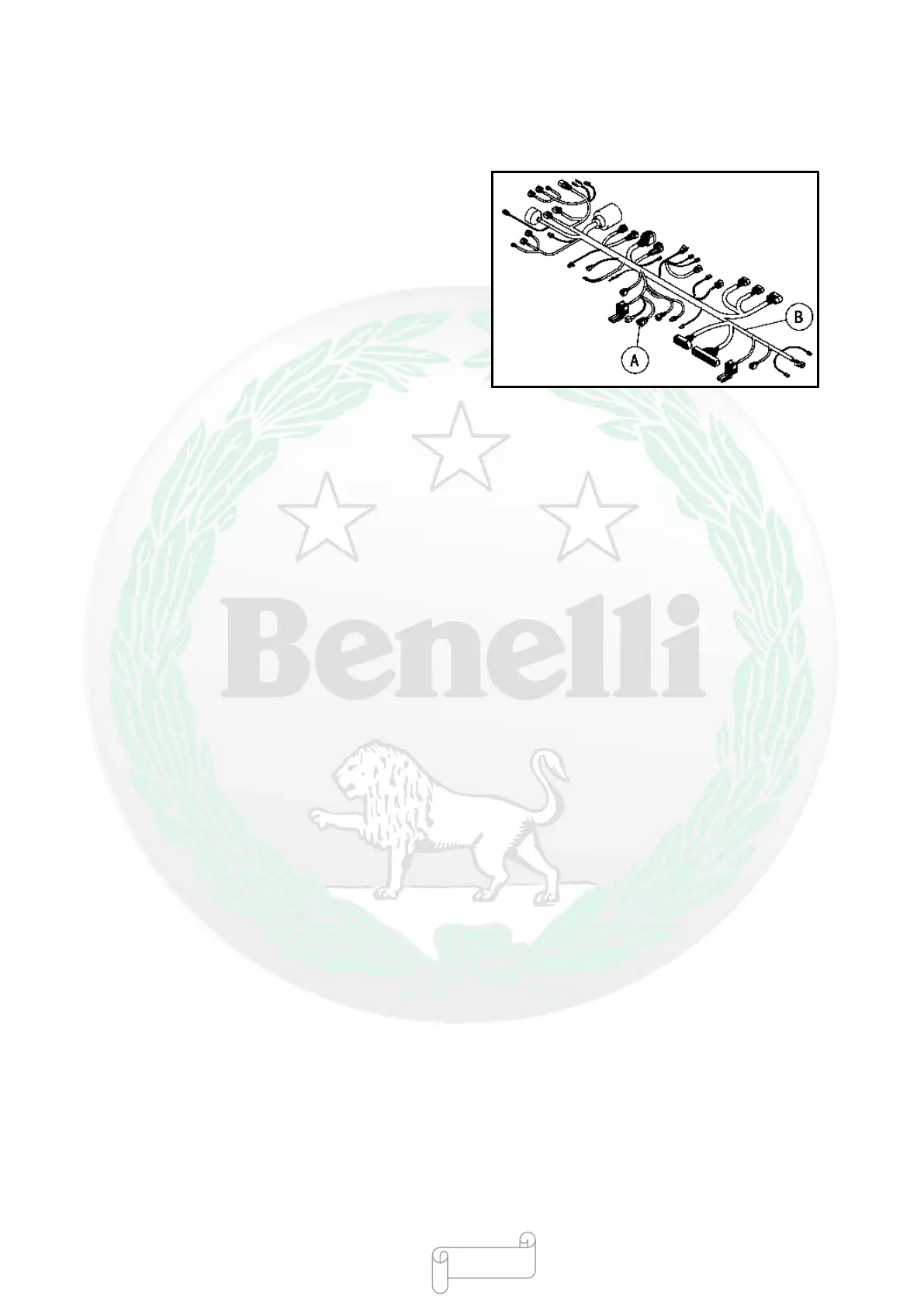

●Pull out each connector [A] to check corrosion, dirt and
damage.
★If the connectors are corroded or soiled, carefully clean
them. If the connectors are damaged, replace them.
●Check whether the connection of circuit is normal.
○Find the power wire terminal which may have problems
by using the wiring diagram.
○Connect the multimeter between the power wire terminals.
Special Tool—Multimeter:
○Set the scope of multimeter as ×1Ω and read the multimeter readings.
★If the multimeter does not have readings and 0 Ω is displayed, there are problems in the power wire. If
necessary, replace the lead or main cable [B].
- 424 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
