Rear Right Pedal

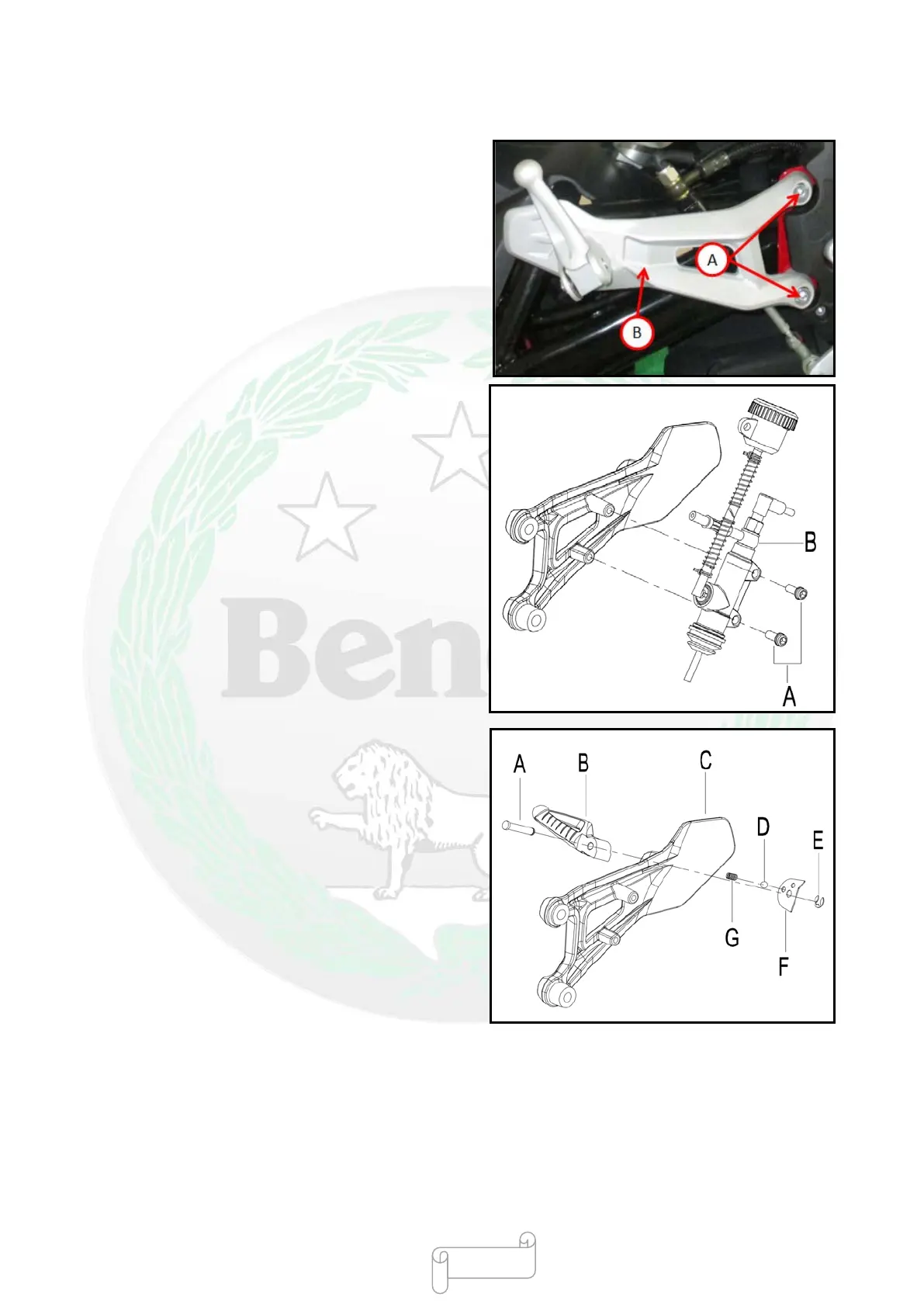

Disassembling Rear Right Pedal
●Disassemble:
Screw [A]
Right rear pedal bracket [B]
●Disassemble:
Screw [A]
Rear master pump [B]
●Disassemble:
Pedal mounting pin [A]
Right rear pedal [B]
Right rear pedal bracket [C]
Pedal ball [D]
Retainer [E]
Pedal mounting plate [F]
Pedal spring [G]
Installing Rear Right Pedal
●
Before installation, apply the grease to the pedal
mounting pin.
●Install it in reverse order of disassembly.
Mounting screw of rear master pump: 10 N·m
Mounting screw of right rear pedal bracket: 22 N·m
- 403 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
