Benelli TNT125 - Checking Fuel Pump

Checking Fuel pump

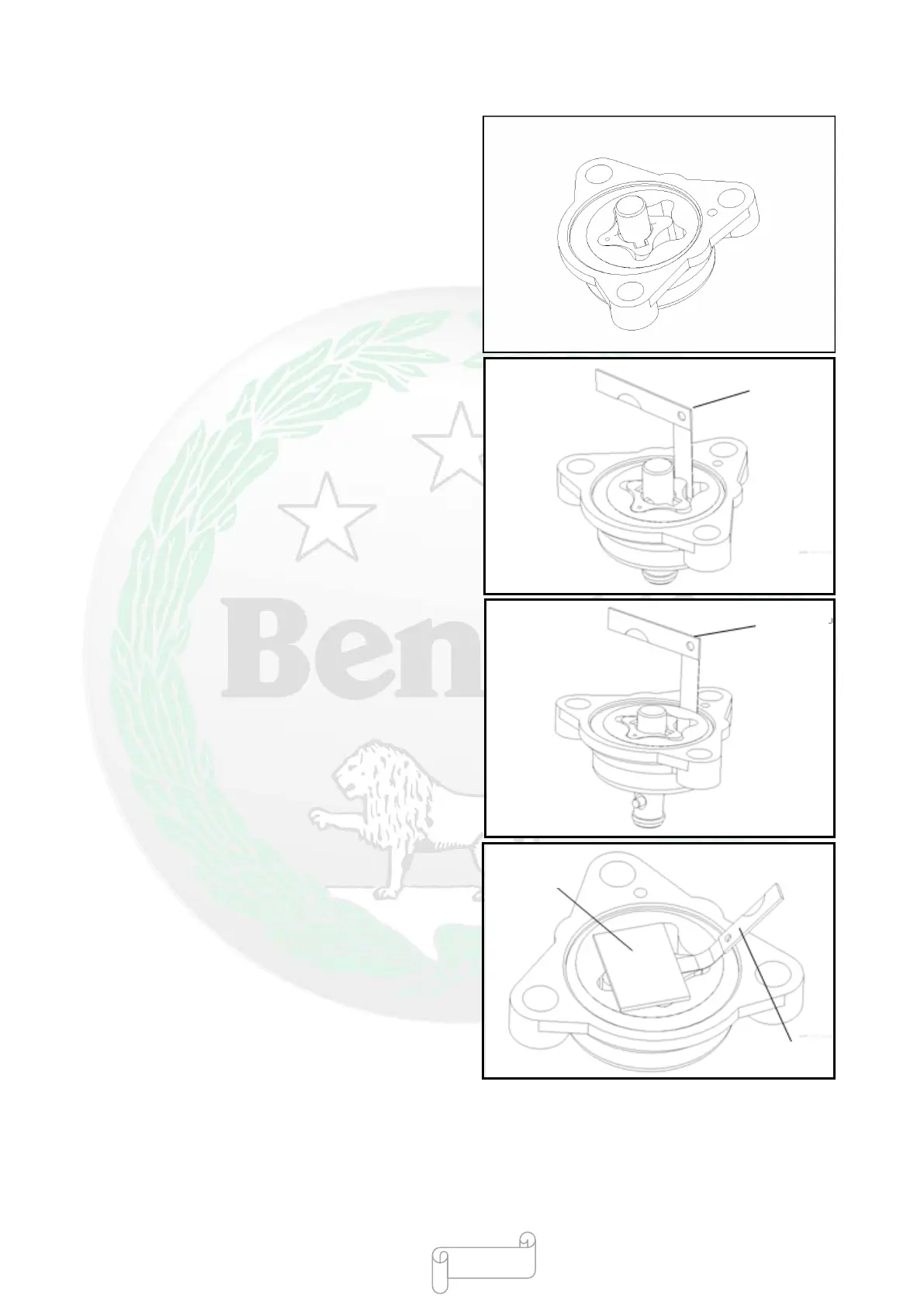

●Remove the fuel pump base and disassemble fuel
pump.
●
Check the radial clearance of internal and external
rotors.
○Allowable limit: 0.15mm。
●Check the clearance between external rotor and fuel
pump base.
○Allowable limit: 0.24mm。
●Check the end clearance of rotor.
○Allowable limit: 0.15mm。
Test gauge
Test gauge
Test gauge
Flat plate
- 206 -
