Benelli TNT125 Service Manual

Replacing Rubber Parts of Master Cylinder

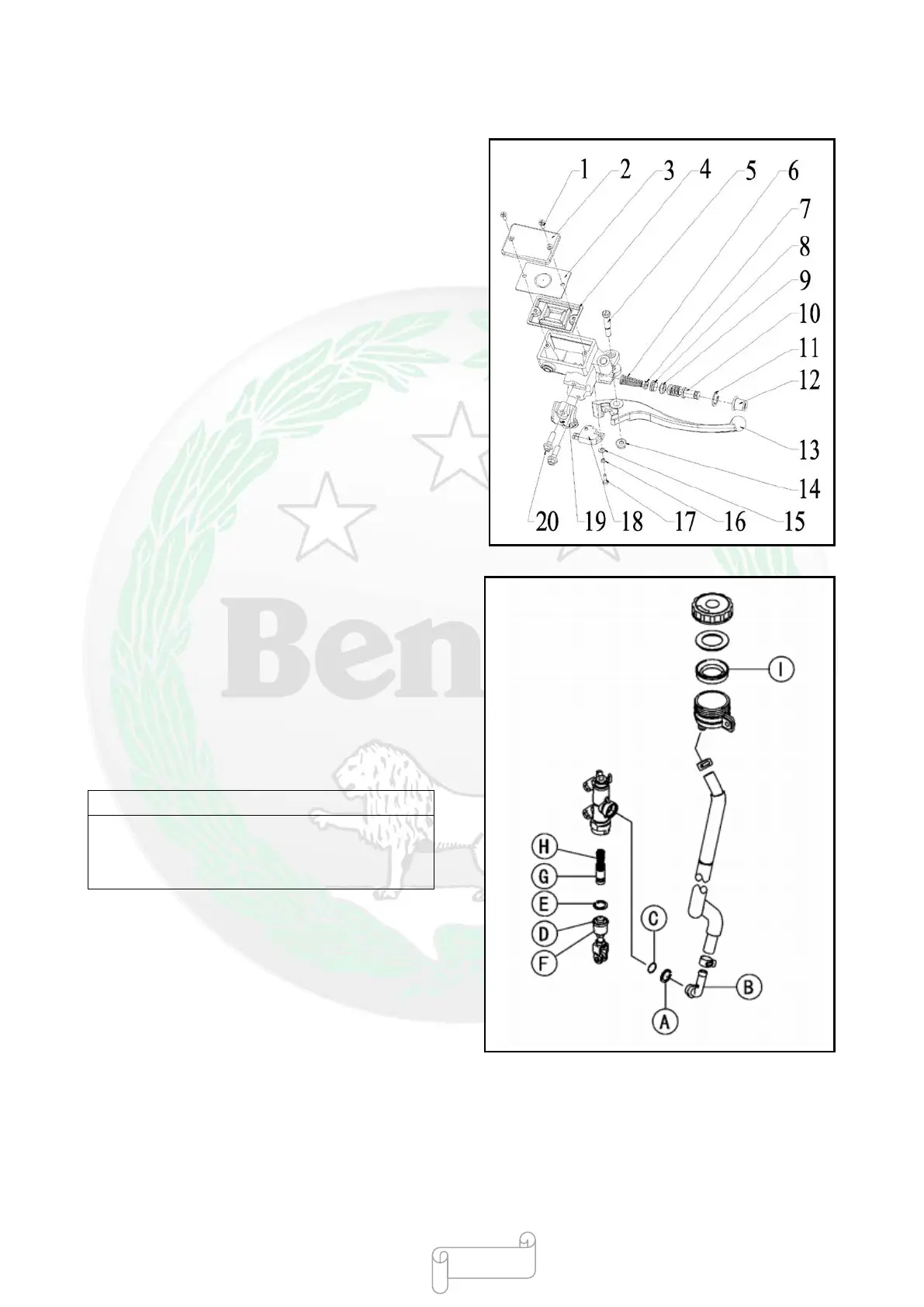

Disassembling Front Master Cylinder
●Remove the front master cylinder (see
“Disassembling Front Master cylinder” in the “Brake”
chapter).
●Remove the sealing cover [4],
spring [11], dust boot
[12] and seal [8].
Special Tools—internal circlip plier:
●Screw out the lock nut [14]and pivot shaft bolt [5] and
then remove the brake handle.
●Remove the spring [11].
●Pull out the piston assembly [10].
●Replacing:
Seal cover: [4],
Spring: [11],
Dust boot: [12],
Seal: [8],
Piston assembly: [10].
Disassembling Rear Master Cylinder
●Remove the rear master cylinder (see “Disassembling
Rear Master cylinder” in the “Brake” chapter).
●Remove spring [A], connector [B] and O-
ring seal
[C].
Special Tools—internal circlip plier:
●Slide out the dust cover [D], and remove the spring
[E].
● Pull out the push rod assembly [F].
●Take the piston assembly [G] and reset spring [H].
Note
Do not remove the secondary cup from the
piston, because they may be damaged when
removed.
●Replacing:
Snap spring: [A],
O-ring seal: [C],
Snap spring: [E],
Push rod assembly: [F],
Piston assembly [G],
Diaphragm: [I].
- 107 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
