Benelli TNT125 Service Manual

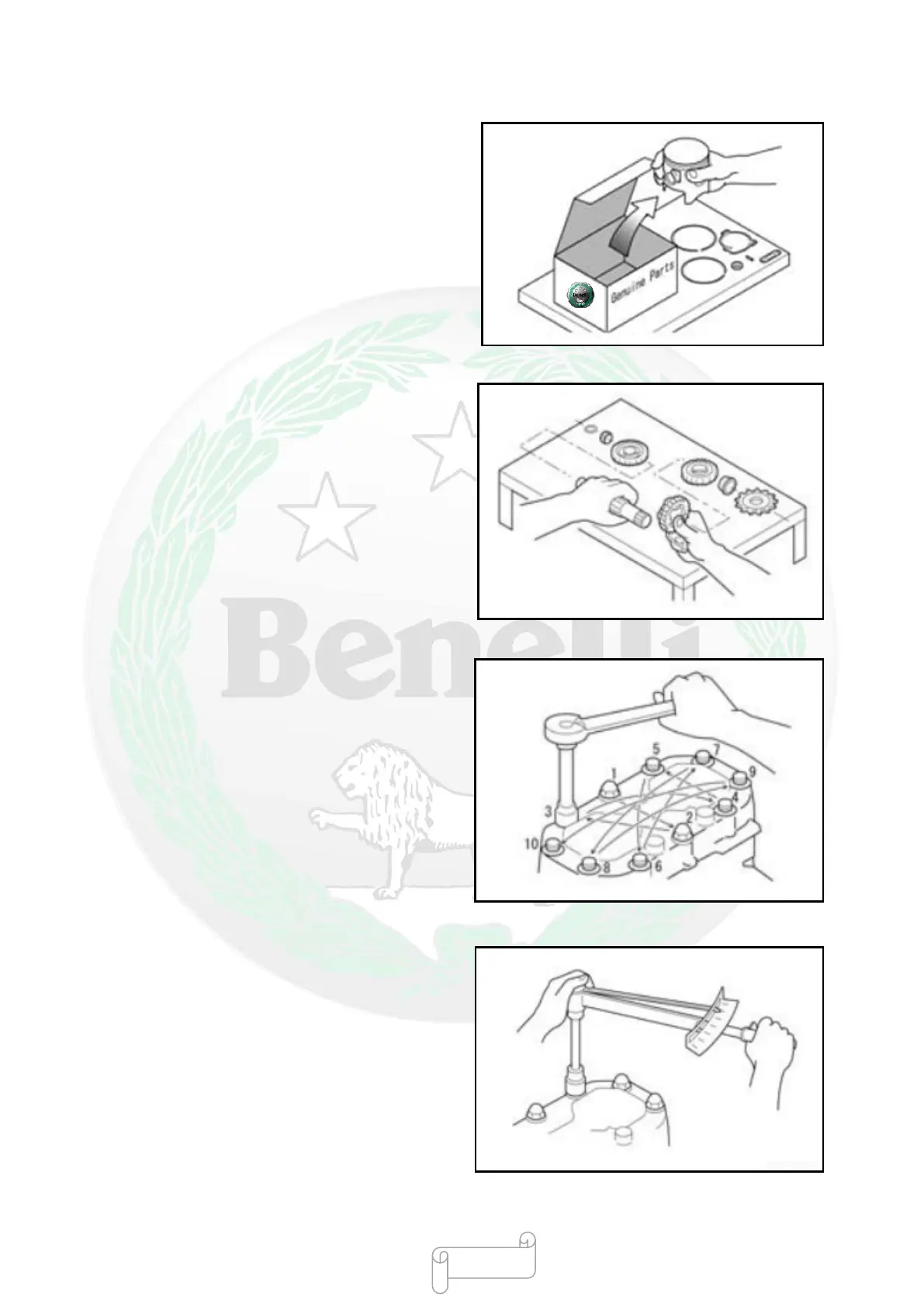

Replacement Part
The replacement part must be an original part of
Benelli or a part recommended by Benelli. Gaskets,
O-ring seals, oil seals, grease seals, circlips or cotter
pins and other parts must be replaced with new parts
once they are removed.
Assembly Order
In most cases, the assembly order is contrary to
the disassembly order, but the assembly must be
carried
out according to the order given if this
Maintenance Manual gives the assembly order.
Fastening Order
In general, when a part is fastened with several
bolts, nuts or screws, put the part into the
corresponding hole, screw them in without applying
torque, and then tighten them in the specified order to
prevent the warping or deformation which can cause
faults of parts. Whereas, if the bolts, nuts or screws
need to be unscrewed, turn a quarter circle, unscrew
them and then continue to screw them off. If the
fastening order is not specified, the fasteners shall be
alternately screwed diagonally.
Tightening Torque
If a wrong torque is applied to a bolt, nut, or
screw, the serious damage may be caused. It is
necessary to tighten the fasteners with a good quality
torque wrench in accordance with the specified torque.
- 23 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
