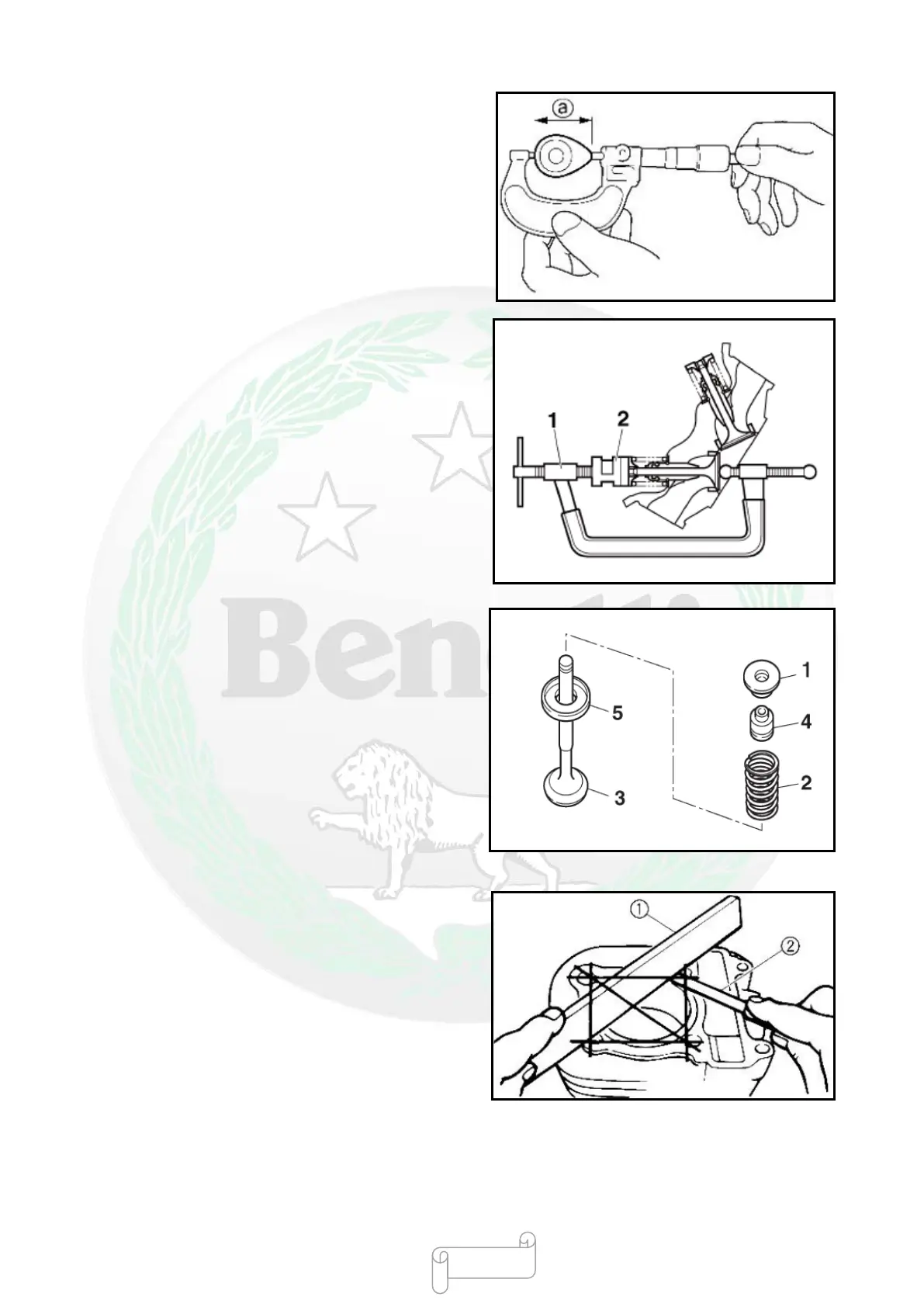

Measure the height of camshaft [a] with a micrometer.
Allowable limit: Height of exhaust camshaft: 29.5376
mm
Height of intake camshaft: 29.5426 mm
Compress the valve spring with valve spring
compression tool and remove valve cotter.
●Disassemble:
Valve upper spring seat [1]
Valve spring [2]
Valve[3]
Valve cottter [4]
Valve lower spring seat [5]
Checking Cylinder Head
●Clear the carbon deposits on the cylinder head.
Measure the flatness of the cylinder head joint
surface.
Allowable limit: 0.05mm
When the flatness of the cylinder head joint surface
exceeds the use limit, place a fine sandpaper on the flat
plate, make the cylinder head joint surface fit the
sandpaper and sand the surface in 8 shape.
- 214 -
