Benelli TNT125 Service Manual

Installatation of fuel tank
●
Conduct installation in the reverse order of
“disassembly”
Note
Do not damage the mounting surface of fuel tank
when installing the fuel pump;
Use new fuel pump seals;
Use new fuel level sensor seals.
Torque value:
Oil level sensor tightening nut tightening torque: 6
N•m
Fuel pump mounting bolt tightening torque: 4 N*m
Fuel tank mounting bolt tightening torque: 10 N*m
Co

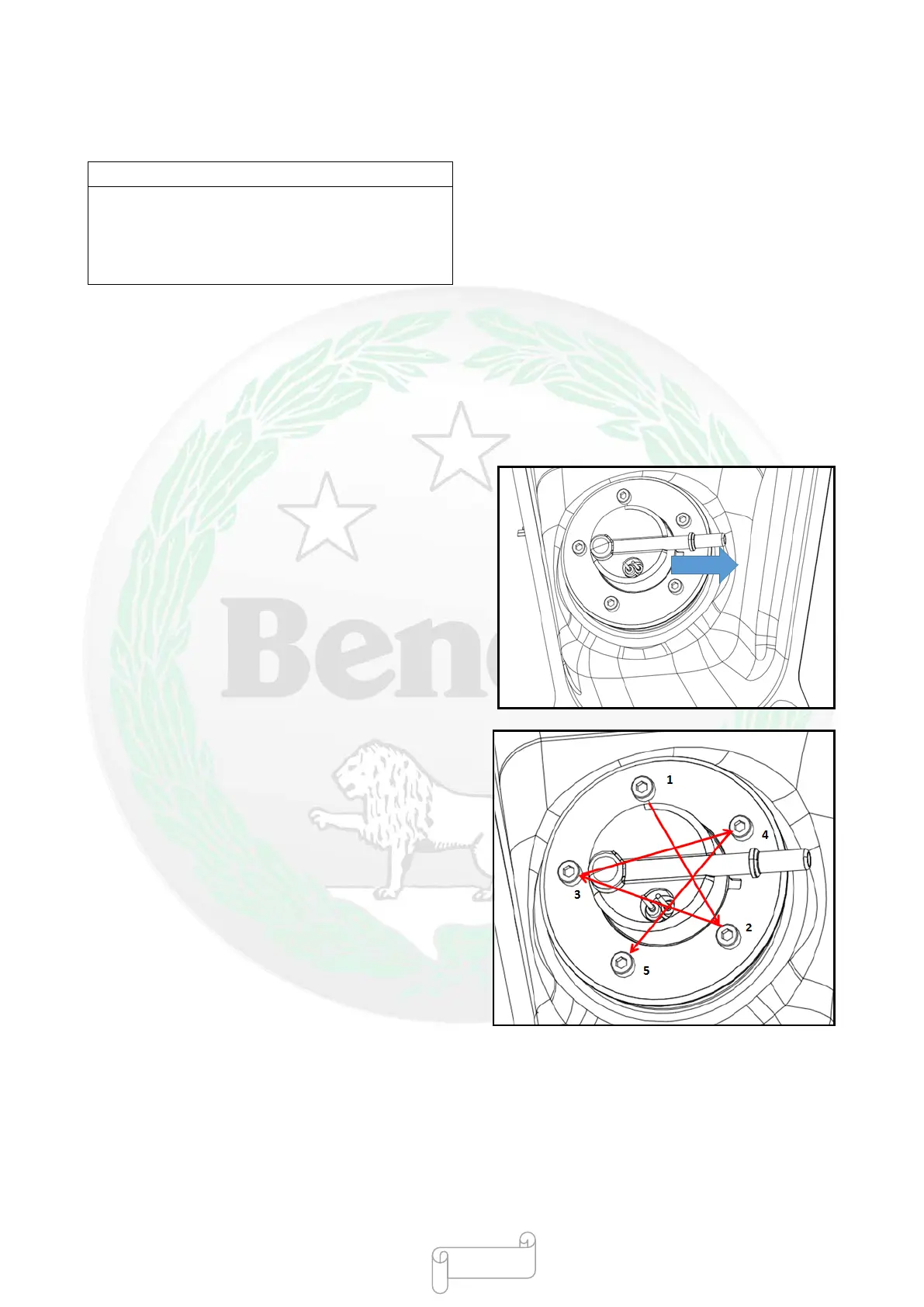

nduct installation as shown in the figure
Install the connector of fuel pump in the direction of
arrow
Lock the fuel pump screw in the correct locking order
as shown in the figure
- 140 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
