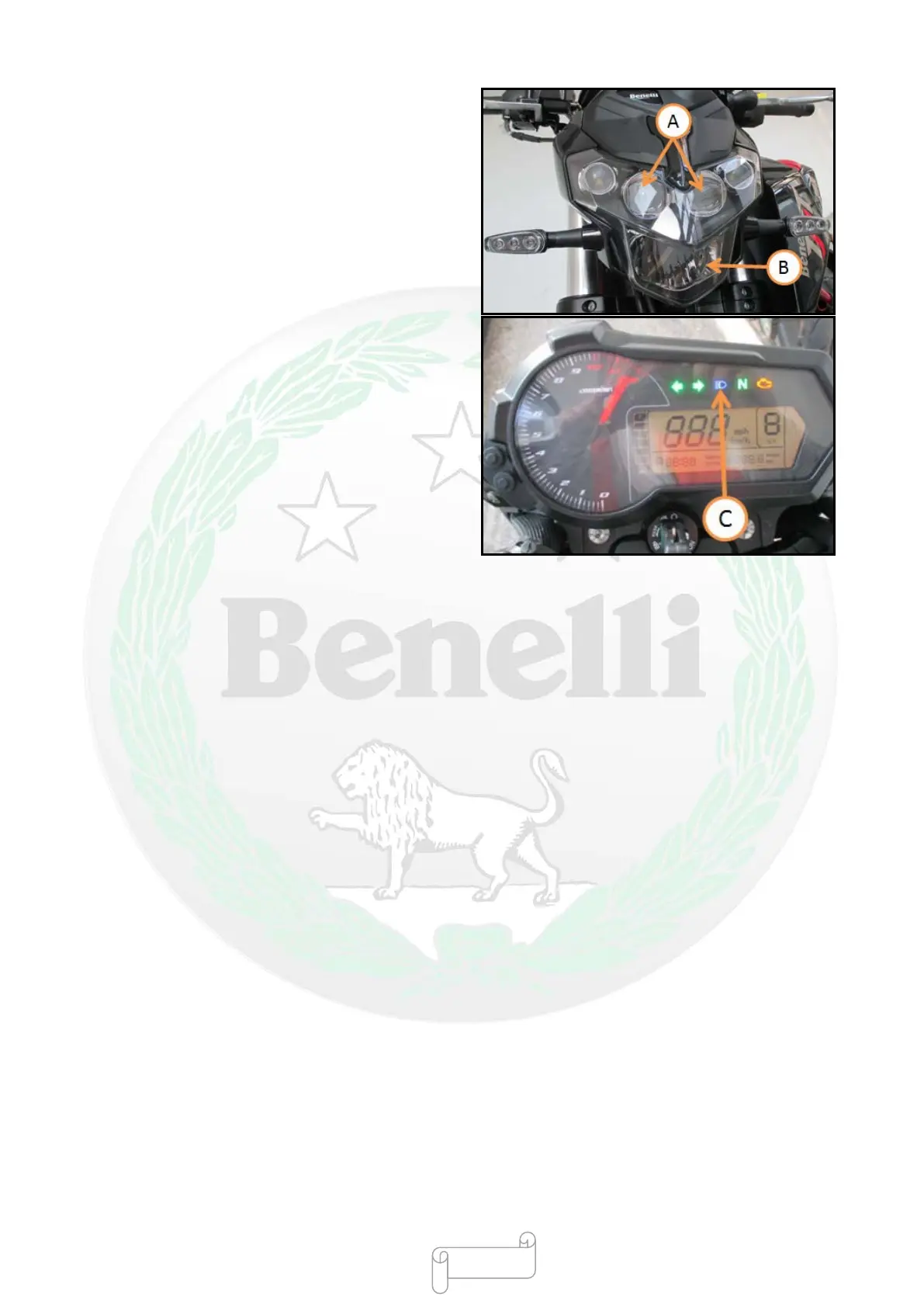

●The low beam headlights [A] and high beam headlight
[B] shall be on.
●
The high beam indicator (LED) [C] shall be on.
If the high beam headlights and/or high beam light
indicator (LED) are/is not on, check or replace the
following parts:
Headlights high beam bulb (see “Replacing Headlights
Bulb” in the “Electrical System” chapter);
20A fuse
of headlights (high beam) (see “Checking
Fuse” in the “Electrical System” chapter);
15A fuse of headlights relay (see “Checking Fuse” in
the “Electrical System” chapter);
Overtaking lamp switch button (models with
overtaking lamp switch button) (see “Checking Switch”
in the “Electrical System” chapter);
Dimmer switch (see “Checking Switch” in the
“Electrical System” chapter);
Headlights circuit relay in the relay box (see “Checking
Relay Circuit” in the “Electrical System” chapter);
Headlights relay (high
beam) (see “Checking
Headlights Relay” in the “Electrical System” chapter);
Wire harness (see “Checking Circuit” in the “Electrical
System” chapter).
●Turn off the emergency flameout switch.
●Low beam headlights and high beam headlights shall
be still on.
★If the headlights and high beam light indicator (LED)
are off, check or replace the following parts:
Headlights circuit relay in the relay box (see “Checking
Relay Circuit” in the “Electrical System” chapter).
●Close the electric door lock.
●The headlights and high beam light indicator (LED)
shall be off.
