Benelli TNT125 Service Manual

○

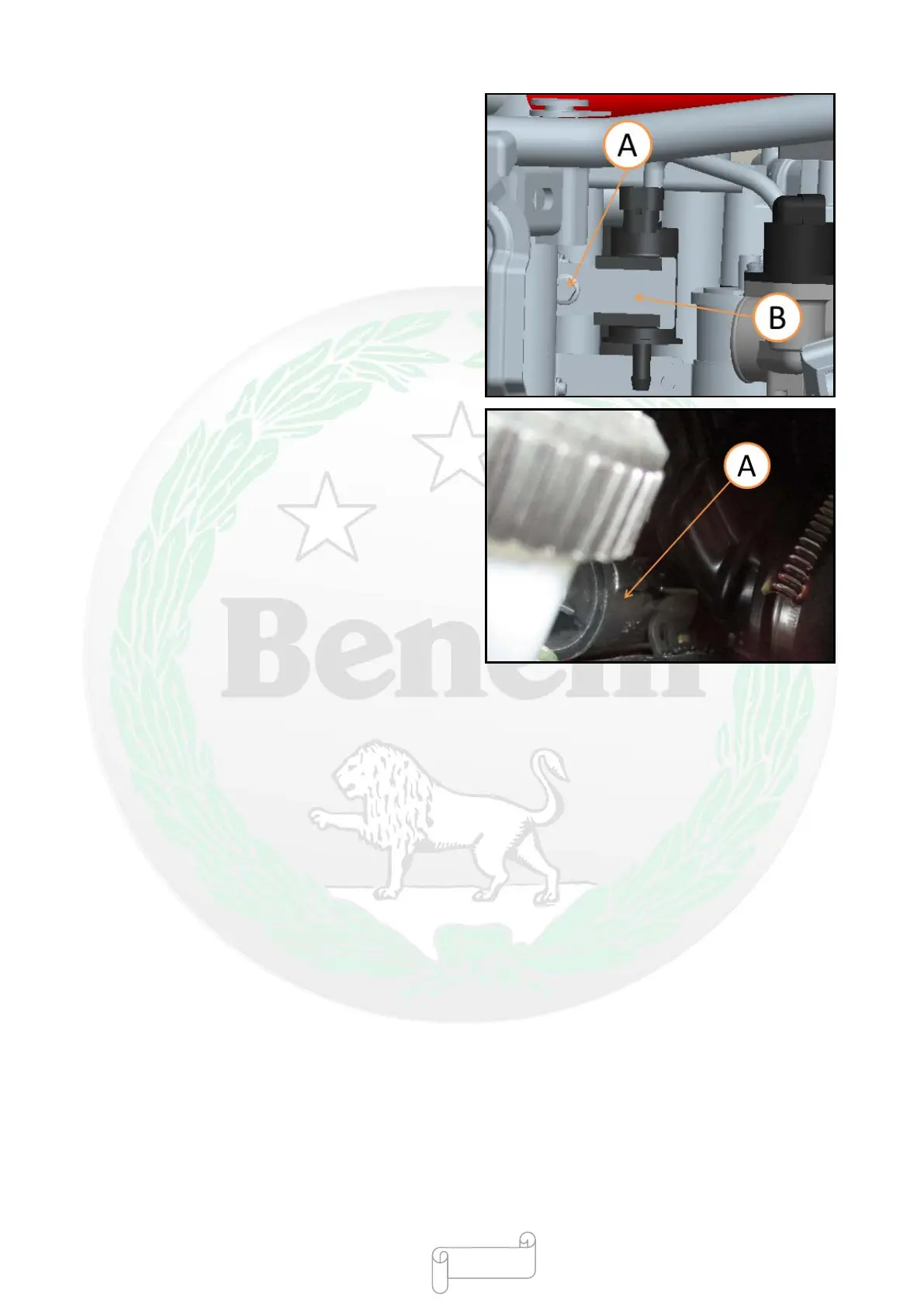

Remove the bolt [A] and take the solenoid valve
bracket of canister.
○Remove the hose used
to connect separator and
remove the canister
solenoid valve [A] from the
motorcycle.
○Check whether there are cracks or other damages on
the canister solenoid valve.
★If any, it must be replaced.
★Check the canister solenoid valve (see “Canister
Solenoid Valve” in “Electronic Fuel Injection System
(EFI)”)
● Check the hose of fuel evaporation and recovery
system according to the following steps.
○Check whether the hose is connected firmly and
whether the clamps are in place.
○Replace the broken, corrosive or damaged hoses.
○Install the negative pressure hose according to the
“Winding Method of Cable, Wire and Hose” section in
the “Accessory” chapter. See Chapter “Electronic Fuel
Injection System (EFI)” for the drawing of fuel
evaporation and recovery system.
○When the hose is installed, avoid bending, tangling or
twisting the hose excessively and do not bend the hose
as much as possible so as to prevent the blocking
caused by evaporative emission.
- 60 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
