Benelli TNT125 Service Manual

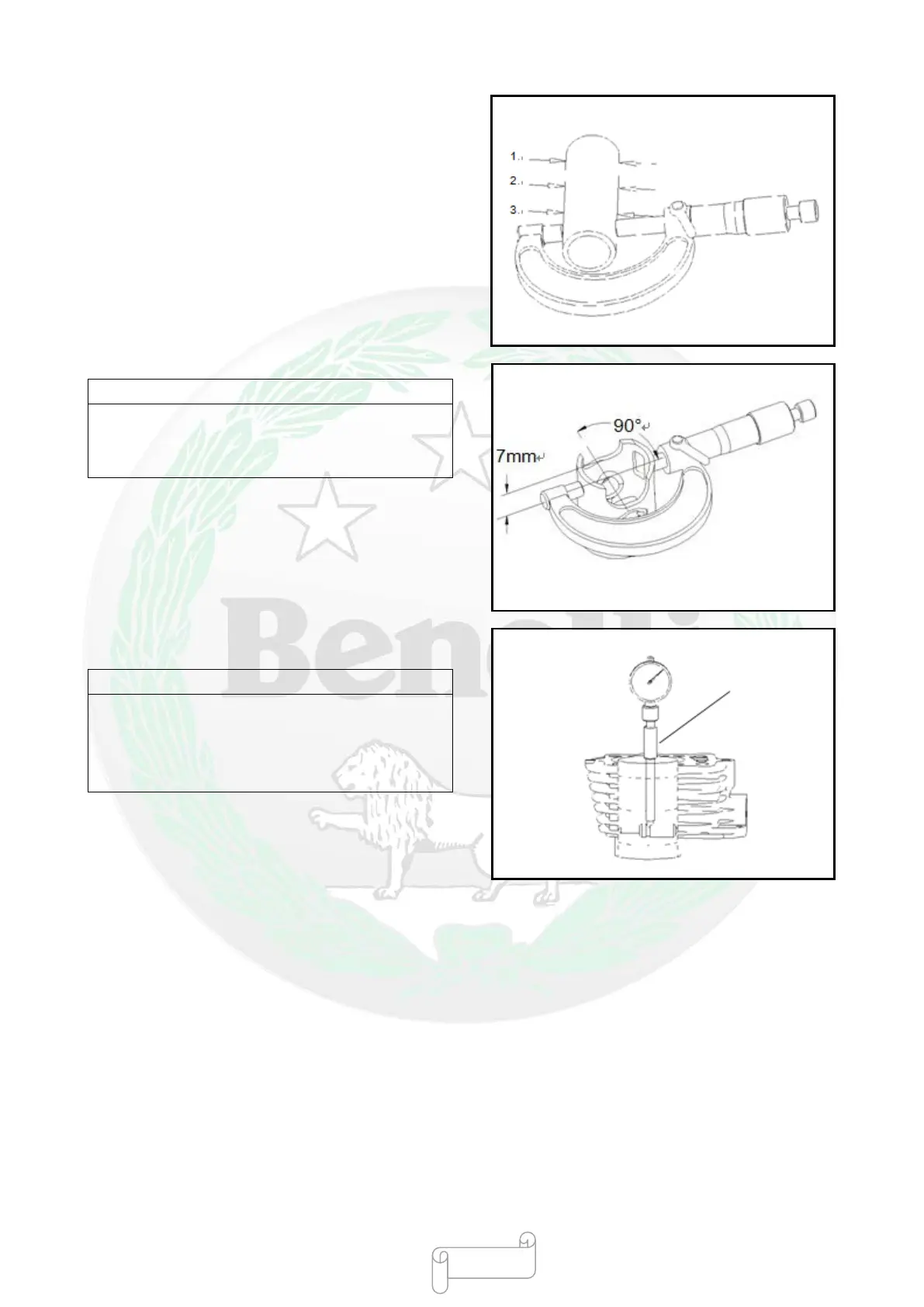

●Measure the outer diameter of piston pin.
○Allowable limit: 13.96mm 。
Allowable limit:
13.96mm.
●Clearance between piston pin hole and piston pin.
○Allowable limit: 0.07mm.
●Measure the outer diameter of piston.
Note
The measurement position forms an angle of 90
degrees with the piston pin and it is 7mm below the
piston skirt part.
○Allowable limit: 53.9mm.
●Check the damage
and wear on the inner wall of
cylinder.
Note:
Measure the inner diameter of cylinder in the
upper, middle and lower positions in the direction
whi
ch forms a right angle (90 degrees) with the
piston pin.
○Allowable limit: 54.11mm 。
Allowable limit:
54.11mm .
●
Measure the clearance between cylinder and piston
and be subject, whichever is the greater
○Allowable limit: 0.17mm.
Inside micrometer
- 230 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
