Benelli TNT125 Service Manual

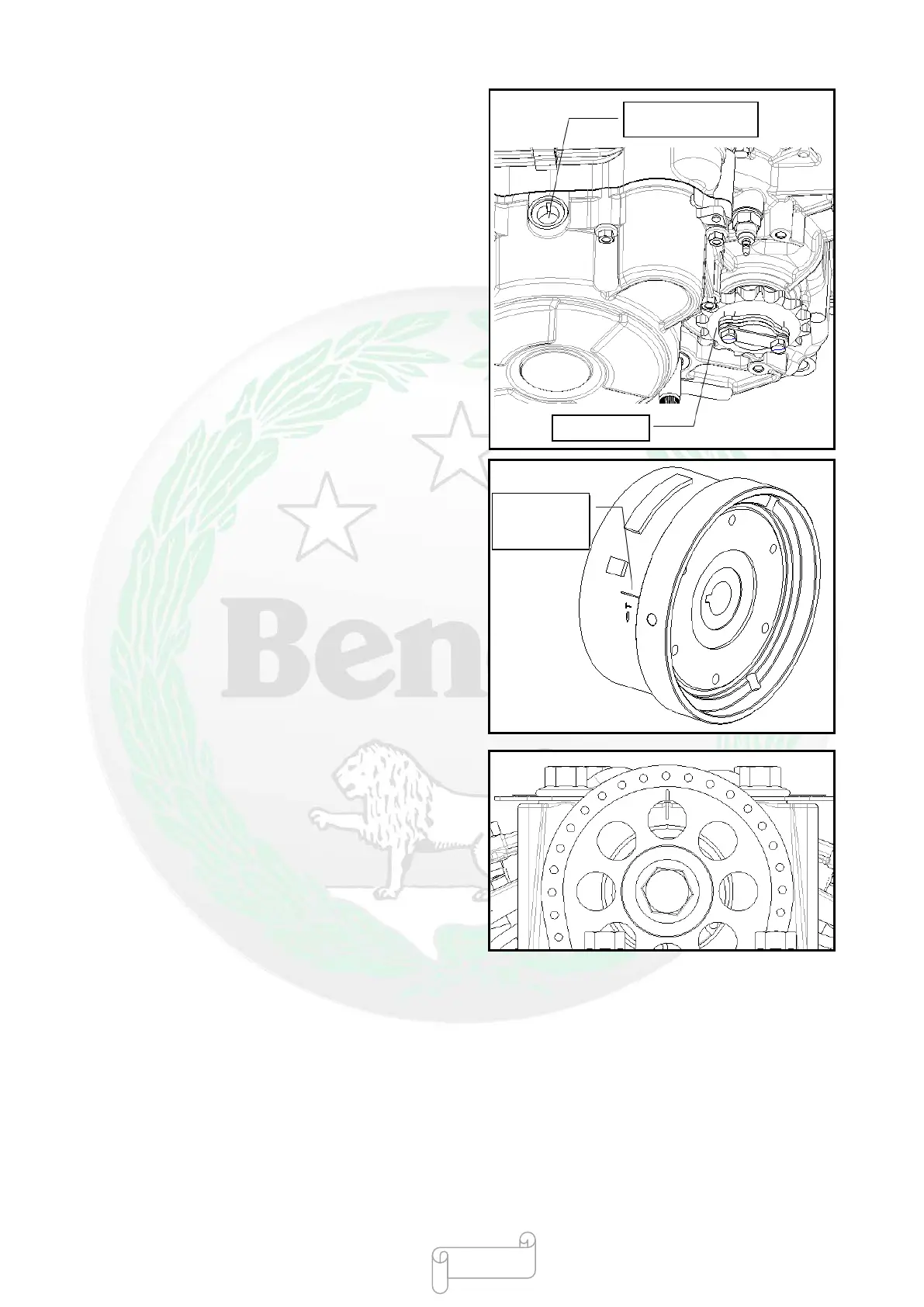

●Rotate the output sprocket to rotate the flywheel
assembly and align the timing mark on the flywheel
assembly with the timing mark on the left cover
observation hole.
●After ensuring that the timing mark is aligned, put the
chain on the sprocket of camshaft, align the timing
mark on the sprocket of camshaft with that on the
cylinder cover and put them into the camshaft, and then
complete aligning the timing marks.
Timing mark on the
observation hole
Output sprocket t
Timing mark on
the flywheel
assembly
- 62 -

Benelli TNT125 Specifications

General

Displacement	125 cc
Transmission	5-speed
Fuel System	EFI
Fuel Capacity	7.2 liters
Seat Height	780 mm
Dry Weight	116 kg
Bore x Stroke	54 mm x 54.5 mm
Starting System	Electric
Wheelbase	1215 mm
Engine Type	Single cylinder, 4-stroke, air-cooled
Front Suspension	Upside-down fork
Front Brake	Single disc
Rear Brake	Single disc
Front Tire	120/70-12
Rear Tire	130/70-12
Max Power	8.2 kW (11.1 Cv) @ 9500 rpm
Rear Suspension	Swing arm with lateral shock absorber with adjustable spring preload
