check the wheel bearing (see “Disassembling Front
Wheel and Checking Hub Bearing” in the “Wheel/Tire”
chapter).
Use the jack to lift the rear wheel up from the floor
(see “Disassembling Rear Wheel” in the “Wheel/Tire
chapter)

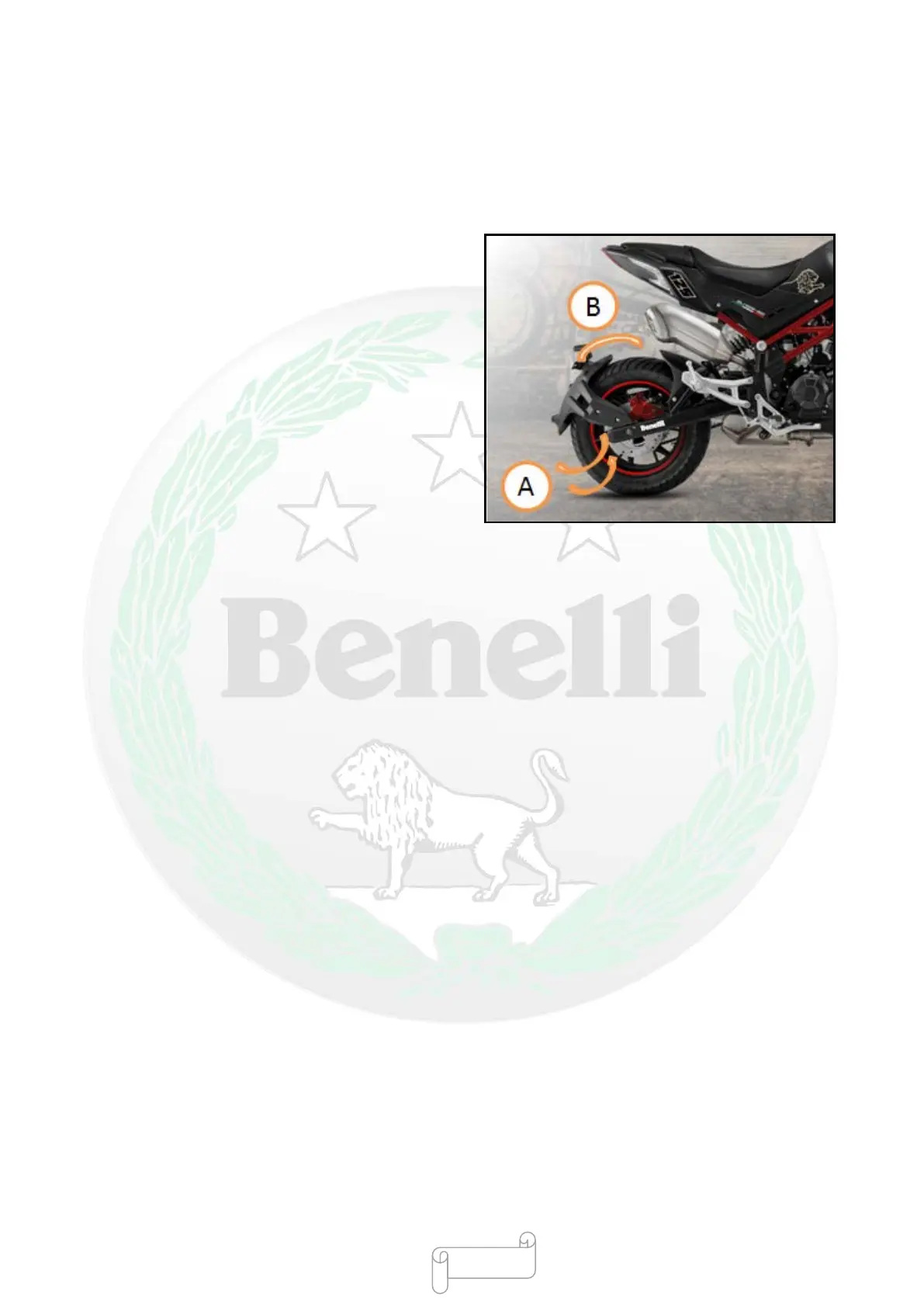

Shake the wheel frame to both sides [A] with both
hands to check whether there is axial clearance in the
rear wheel bearing.
Rotate the rear wheel [B] gently to see whether the
wheel can be rotated smoothly, whether it is difficult to
rotate or whether there is unusual resistance or noise.
If it is found that the wheel is difficult to rotate and
there is resistance or noise, remove the rear wheel and
check the wheel bearing (see “Disassembling Rear
Wheel and Checking Hub Bearing” in the “Wheel/Tire”
chapter) and axle sleeve (see “Checking Axle Sleeve
and Bearing” in “Final Drive Mechanism” chapter)..
- 67 -

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Benelli TNT125 and is the answer not in the manual?

Benelli TNT125 Specifications

General IconGeneral
Displacement125 cc
Transmission5-speed
Fuel SystemEFI
Fuel Capacity7.2 liters
Seat Height780 mm
Dry Weight116 kg
Bore x Stroke54 mm x 54.5 mm
Starting SystemElectric
Wheelbase1215 mm
Engine TypeSingle cylinder, 4-stroke, air-cooled
Front SuspensionUpside-down fork
Front BrakeSingle disc
Rear BrakeSingle disc
Front Tire120/70-12
Rear Tire130/70-12
Max Power8.2 kW (11.1 Cv) @ 9500 rpm
Rear SuspensionSwing arm with lateral shock absorber with adjustable spring preload
