Intel Arria 10 User Manual

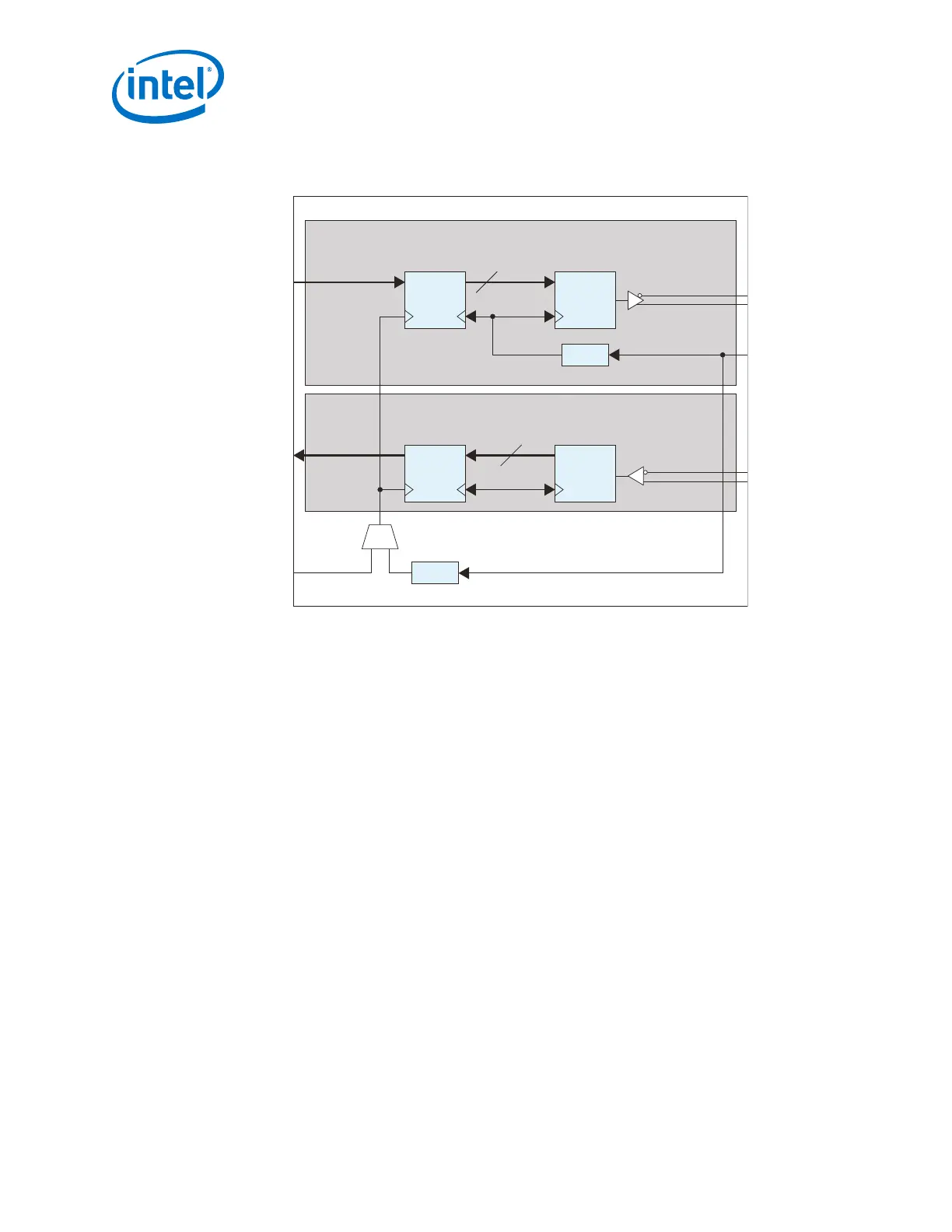

Figure 58. Clock Generation and Distribution for 10GBASE-R with FEC Support
Example using a 64-bit PCS-PMA interface width.
TX PLL
64
TX PMATX PCS
TX
64 Bit Data
8 Bit Control
10.3125 Gbps
Serial
pll_ref_clk
644.53125 MHz
161.13 MHz
64
RX PMARX PCS
RX
64 Bit Data
8 Bit Control
10.3125 Gbps
Serial
156.25 MHz
fPLL
rx_coreclkin
8/33
10GBASE-R Hard IP Transceiver Channel
161.13 MHz
2.6.2.1. The XGMII Clocking Scheme in 10GBASE-R
The XGMII interface, specified by IEEE 802.3-2008, defines the 32-bit data and 4-bit
wide control character. These characters are clocked between the MAC/RS and the PCS
at both the positive and negative edge (double data rate – DDR) of the 156.25 MHz
interface clock.
The transceivers do not support the XGMII interface to the MAC/RS as defined in the
IEEE 802.3-2008 specification. Instead, they support a 64-bit data and 8-bit control
single data rate (SDR) interface between the MAC/RS and the PCS.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
128

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
