channels in the bank can be reconfigured as GX transceiver channels. However, when
any of the GT capable transceiver channels in transceiver banks GXBL1E, GXBL1G,
and GXBL1H is enabled as a GT transceiver channel, the remaining channels in the
transceiver bank cannot be used with the exception of the other GT capable channel in
the transceiver bank.
If you're using GT transceivers in bank GXBL1E, then the adjacent PCIe Hard IP block
cannot be used.

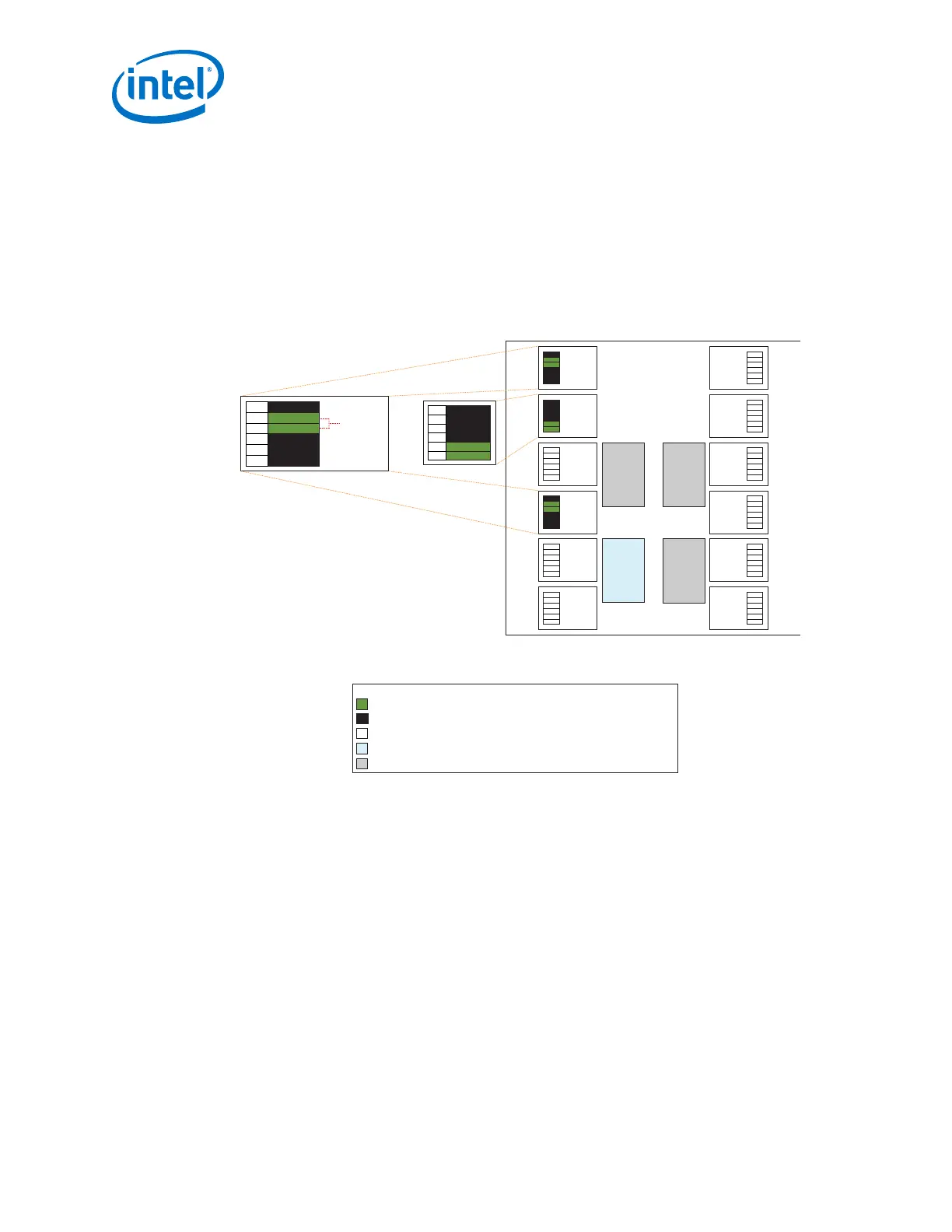

Figure 8. Arria 10 GT Device with 72 Transceiver Channels and Four PCIe Hard IP
Blocks
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank (3)
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
Transceiver
Bank
GT 115 SF45
GT 090 SF45
GT Channels
Capable of Short
Reach 25.8 Gbps
GXBL1C
GXBL1D
GXBL1E
GXBL1F
GXBL1G
GXBL1H
GXBR4C
GXBR4D
GXBR4E
GXBR4F
GXBR4G
GXBR4H
Notes:
(1) Nomenclature of left column bottom transceiver banks always end with “C”.
(2) Nomenclature of right column bottom transceiver banks may end with “C”, “D”, or “E”.
(3) If a GT channel is used in transceiver bank GXBL1E, the PCIe Hard IP adjacent to GXBL1F and GXBL1E cannot be used.
(1) (2)
GX or Restricted
GT or GX
GT or GX
GX or Restricted
CH5
CH4
CH3
CH2
CH1
CH0
PCIe
Gen1 - Gen3
Hard IP
PCIe
Gen1 - Gen3
Hard IP
PCIe
Gen1 - Gen3
Hard IP
PCIe
Gen1 - Gen3
(with CvP)
Hard IP
Legend:
GX transceiver channels (channel 2 and 5) with usage restrictions.
GT transceiver channels (channel 0, 1, 3, and 4).
PCIe Gen1 - Gen3 Hard IP blocks with Configuration via Protocol (CvP) capabilities.
PCIe Gen1 - Gen3 Hard IP blocks without Configuration via Protocol (CvP) capabilities.
GX transceiver channels without usage restrictions.
GX or Restricted
GX or Restricted
GT or GX
GT or GX
CH5
CH4
CH3
CH2
CH1
CH0
GX or Restricted
GX or Restricted
GX or Restricted
GX or Restricted
The GT device has 72 transceiver channels, which include 6 GT transceiver channels
supporting data rates greater than 17.4 Gbps. If all six GT transceiver channels are
used in GT mode, there are 54 GX transceiver channels that can drive chip to chip
data rates up to 17.4 Gbps and backplanes at data rates up to 12.5 Gbps and 12 GX
channels that are unusable.
In the GT device, the GX transceiver channels on the entire right side can be used in
standard or reduced power mode. In GT devices where none of the GT channels are
used to operate in GT data rates above 17.4 Gbps, the transceiver channels on either
the entire right side or entire left side can be used as GX channels in standard or
reduced power mode.
Related Information
• IntelArria 10 Avalon-ST Interface for PCIe Solutions User Guide
• IntelArria 10 Avalon-MM Interface for PCIe Solutions User Guide
• IntelArria 10 Avalon-MM DMA Interface for PCIe Solutions User Guide
