Intel Arria 10 User Manual

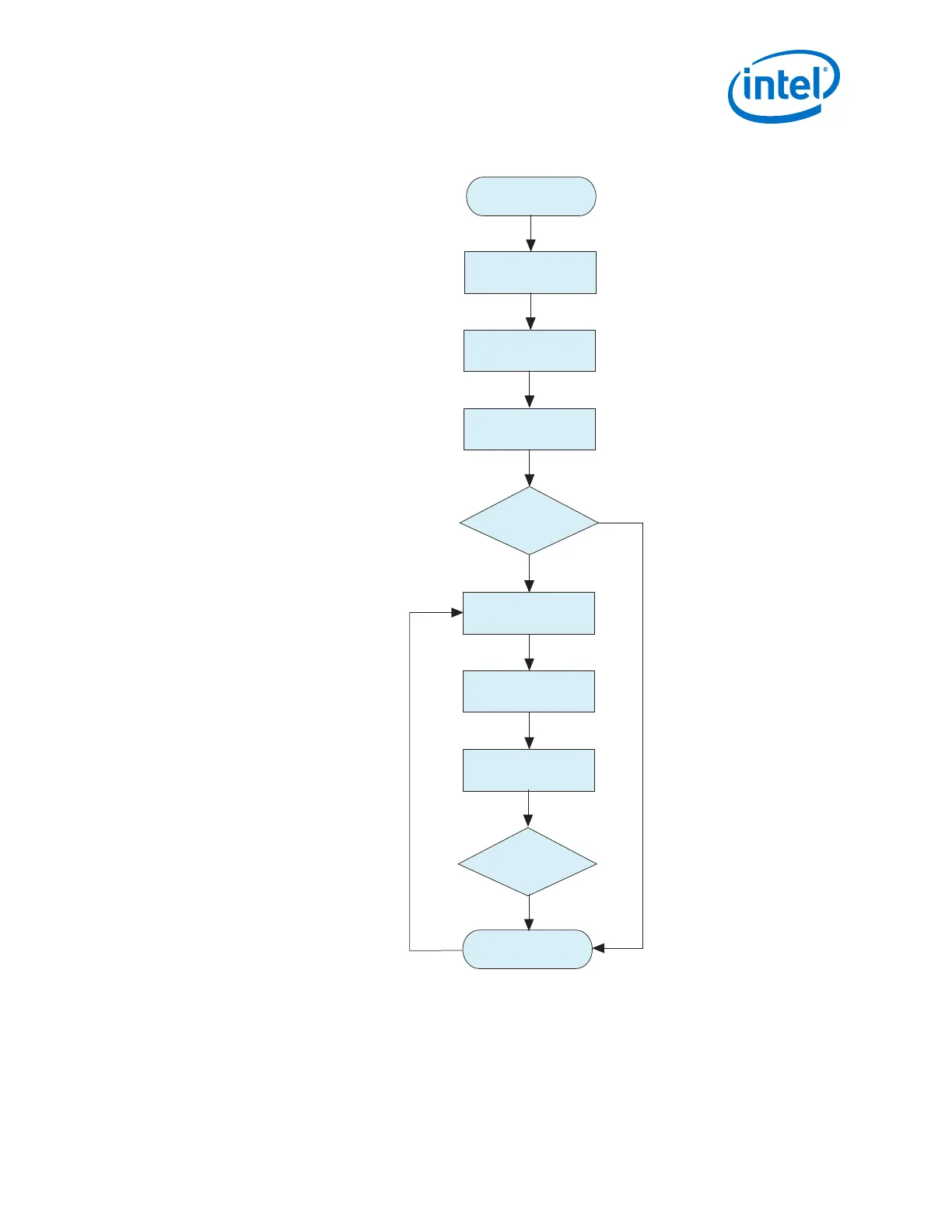

Figure 167. Custom flow Simulation
Start Simulator & Open
Quartus Prime Project
Debug Design &
Make RTL Changes
Does
Simulation Give
Expected Results?
Yes
Compile Design, Testbench,
& Simulation Libraries
Load Design
& Run Simulation
Does
Simulation Give
Expected Results?
No
Simulation Complete
No
Compile Sim Model Libs
Using Sim Lib Compiler
Load Design &
Run Simulation
Does
Simulation Give
Expected Results?
Yes
Compile Design, Testbench,
& Simulation Libraries
2.10.3.1. How to Use the Simulation Library Compiler
The Simulation Library Compiler compiles Intel simulation libraries for supported
simulation tools, and saves the simulation files in the output directory you specify.
2. Implementing Protocols in Arria 10 Transceivers
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
333

Intel Arria 10 Specifications

General

Transceiver Data Rate	Up to 17.4 Gbps
Transceiver Protocols Supported	CPRI, JESD204B
Transceiver Power Consumption	Varies depending on configuration and data rate. Refer to Intel Arria 10 device power estimation tools.
Transceiver Features	Clock data recovery
Power Consumption per Channel	Varies depending on data rate and equalization settings. Refer to Intel Arria 10 device power estimation tools.
Transceiver Type	FPGA integrated transceiver
Operating Temperature Range	-40°C to 100°C (Industrial)
Number of Transceiver Channels	up to 96 full-duplex
