Intel Arria 10 User Manual

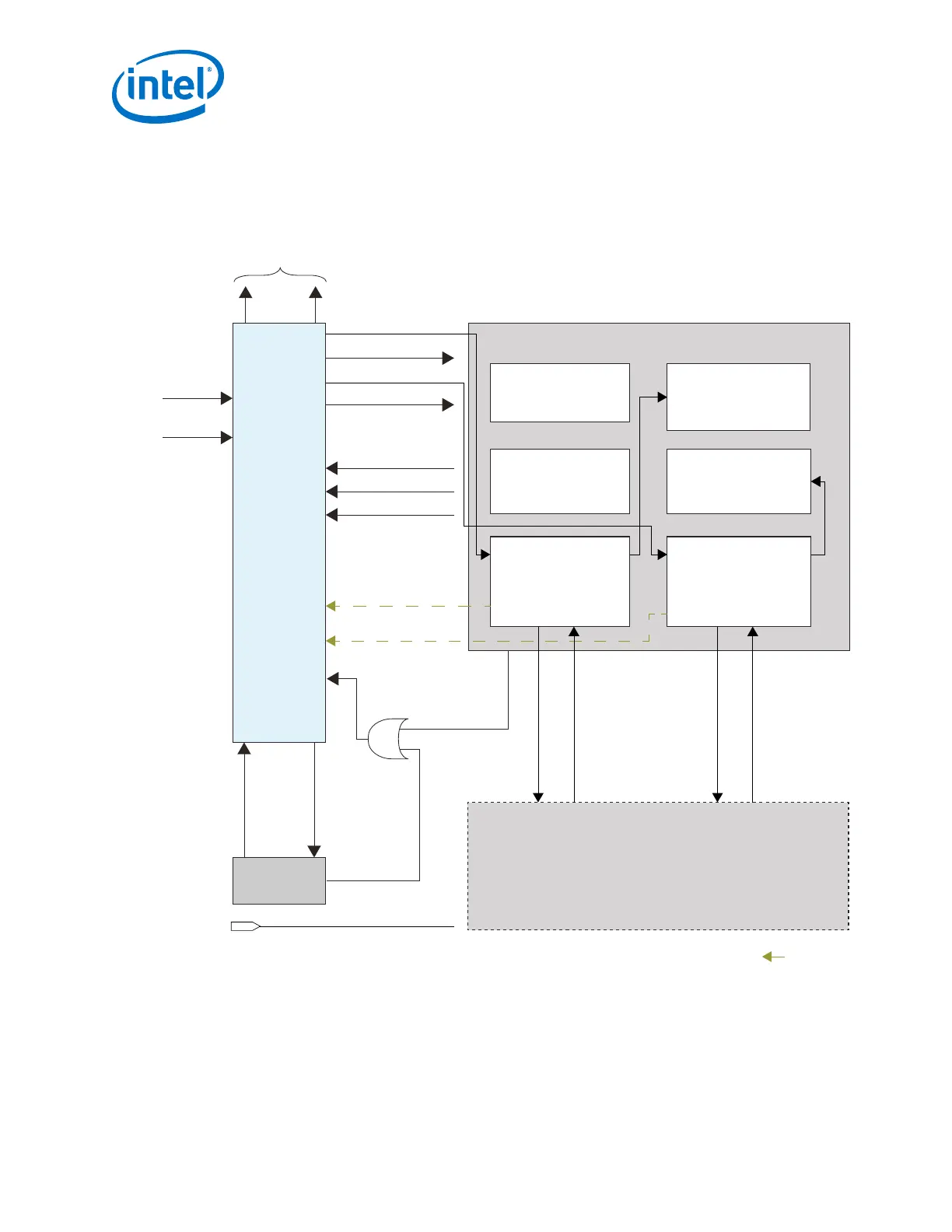

Figure 215. Transceiver PHY Reset Controller System Diagram
(user-coded
Reset Controller
Transceiver PHY Instance
tx_analogreset
tx_digitalreset
rx_analogreset
rx_digitalreset
rx_cal_busy
rx_is_lockedtoref
rx_is_lockedtodata
Transmit
PLL
pll_powerdown
pll_locked
clock
reset
Receiver
PCS
Receiver
PMA
Transmitter
PCS
Transmitter
PMA
or Intel IP)
tx_analogreset_ack
rx_analogreset_ack
reset_req_0
reset_out_0
reset_req_1
reset_out_1
tre_reset_req
tre_reset_in tre_reset_req
tre_reset_in
Transceiver Reset Sequencer Inferred Block
clk_usrpin
Optional
tx_ready rx_ready
Status Signals
tx_cal_busy (1)
pll_tx_cal_busy
pll_cal_busy (1)
You can logical OR the pll_cal_busy and tx_cal_busy signals.
pll_tx_cal_busy connects to the controller’s tx_cal_busy input port.
Note:
(1)
(2)
(2) The ports are inputs for user logic that implement Model 2. The ports can be used as status monitoring for Model 1 implementation. .
(2)
4. Resetting Transceiver Channels
UG-01143 | 2018.06.15
Intel
®
Arria
®
10 Transceiver PHY User Guide
434
