F5 – Information Menu
Gem-5 User’s Manual 237
An example of a screen (Page 1) is shown in Figure 109. The time period covered by
the report is “From...” the start date “To...” the current date and time.
In Two-Step mode Position 1 and Position 2 tallies are reported separately. In One-
Step mode Monitor and Recount tallies are reported instead. A “Recount” occurs
when the occupant repositions for a second count without leaving the monitor.

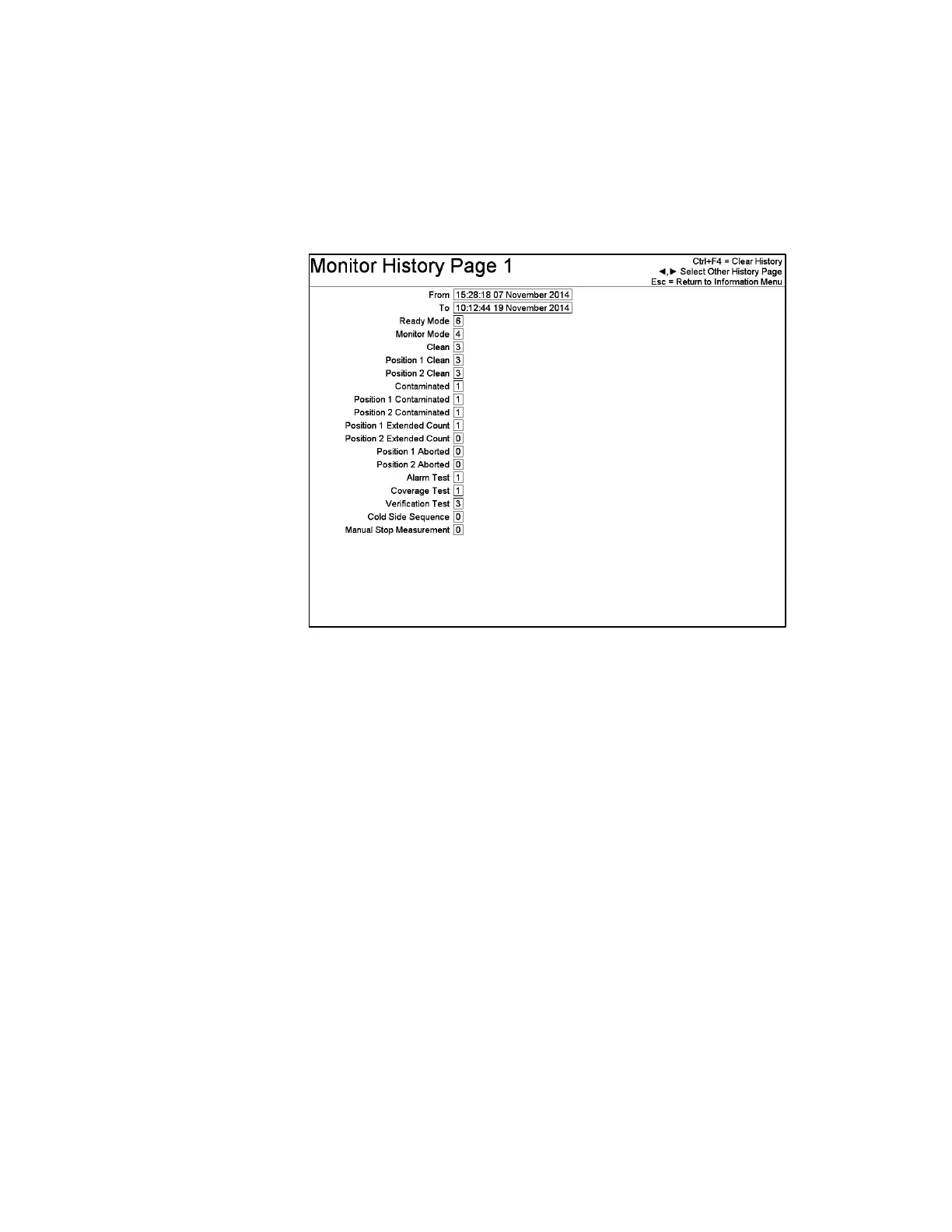

Figure 109 Monitor History Screen (Page 1)
Report Items
Notes: Position 2 normally only applies while operating in the Two-Step mode.
Ready Mode: The number of times the approach sensor has been activated by the
arrival of an occupant. This includes times when the monitor has stopped the
background update routine because of potential interference from nearby personnel.
Monitor Mode: The number of times an occupant has stood in the monitor or has
activated any sensor other than the approach sensor.
Clean, Contaminated: The number of occupants who have completed monitoring
with a “Clean” or “Contaminated result, respectively.
Position 1/ Position 2 Clean: The number of occupants who have a “Clean” result
for monitoring in Position 1 and Position 2, respectively.
Position 1/ Position 2 Contaminated: the number of occupants who have a
“Contaminated” result for monitoring in Position 1 and Position 2, respectively.
Position 1(Monitor) Extended Count/ Position 2 (Recount) Extended Count:
These counters display the number of times an extended count time was required to
