Nokia 7360 Intelligent Services Access Manager FX Series User Manual

7360 ISAM FX-16 shelf cabling
106
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
Keeping a distance of 4 in. (10 cm) between signal and power cables is advisable
where it imposes no practical problems.
Crossing of signal cables with power cables and parallel routing over short distances
is acceptable.
6.5.2 Power distribution unit
The 7360 ISAM FX-16 shelf is designed to be used as stand-alone equipment and is
equipped with a −48 Vdc power distribution unit with terminal block.
The power distribution terminal block is located at the bottom of the shelf and is
covered with a plastic safety cover; see Figure 37.

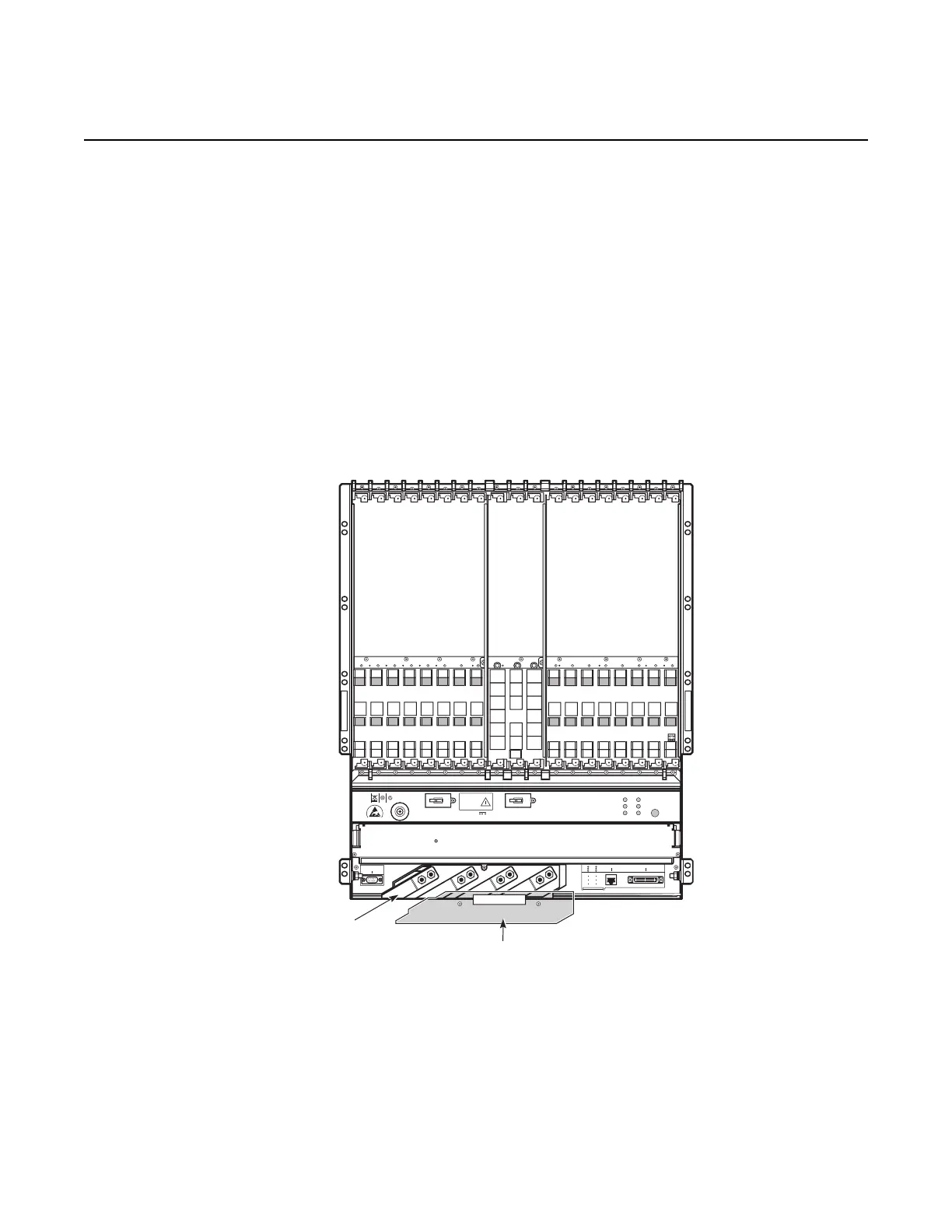

Figure 37 Power distribution unit on 7360 ISAM FX-16
Figure 38 shows the label on the safety cover.
Energy Hazard
ALM
01 02 03 04 05 06 07 08 NTA
NTIO NTB 09 10 11 12 13 14 15 16
22189
7360 ISAM FX-16
N594
R
T
H
A
E
B
O
N
D
I
N
G
P
O
I
N
T
ESD
ON
OFF
A/70 FOR LT
ON
OFF
B/70 FOR LT
-48V 70A
Energy Hazard
BAT A
BAT B
ACO
CRITICAL
MAJOR
MINOR
BITS INTERFACE
TIME OF DAY
1 Hz-PULSE
NT-A NT-B
RING
TIP
FRAME GND
CO ALARMS
CRAFT PORT
TB1-2 B
AT RTN A
TB1-3 B
A
T
RTN B
TB1-1 -48V B
AT A
TB1-4 -48V B
AT B
TB
TB
TB
TB1
TB1
TB1
CAUTION: BEFORE REMOVING TERMINAL COVER,
DISCONNECT BOTH “A” AND “B” POWER SOURCES
CAUTION: TORQUE NUTS TO 65 IN-LBS MAX
Power unit
Safety
cover
