6.7 BITS interface connections
The 7360 ISAM FX-16 requires six wire-wrappable pins for the BITS clock timing
connection. BITS timing signals will be supplied using two twisted pair cables (22
AWG solid copper conductors with overall shield and drain wire, Belden 1175A or
equivalent). One cable will connect to the 3 wire-wrap pins for NT-A, and the other
will connect to the 3 wire-wrap pins for NT-B.

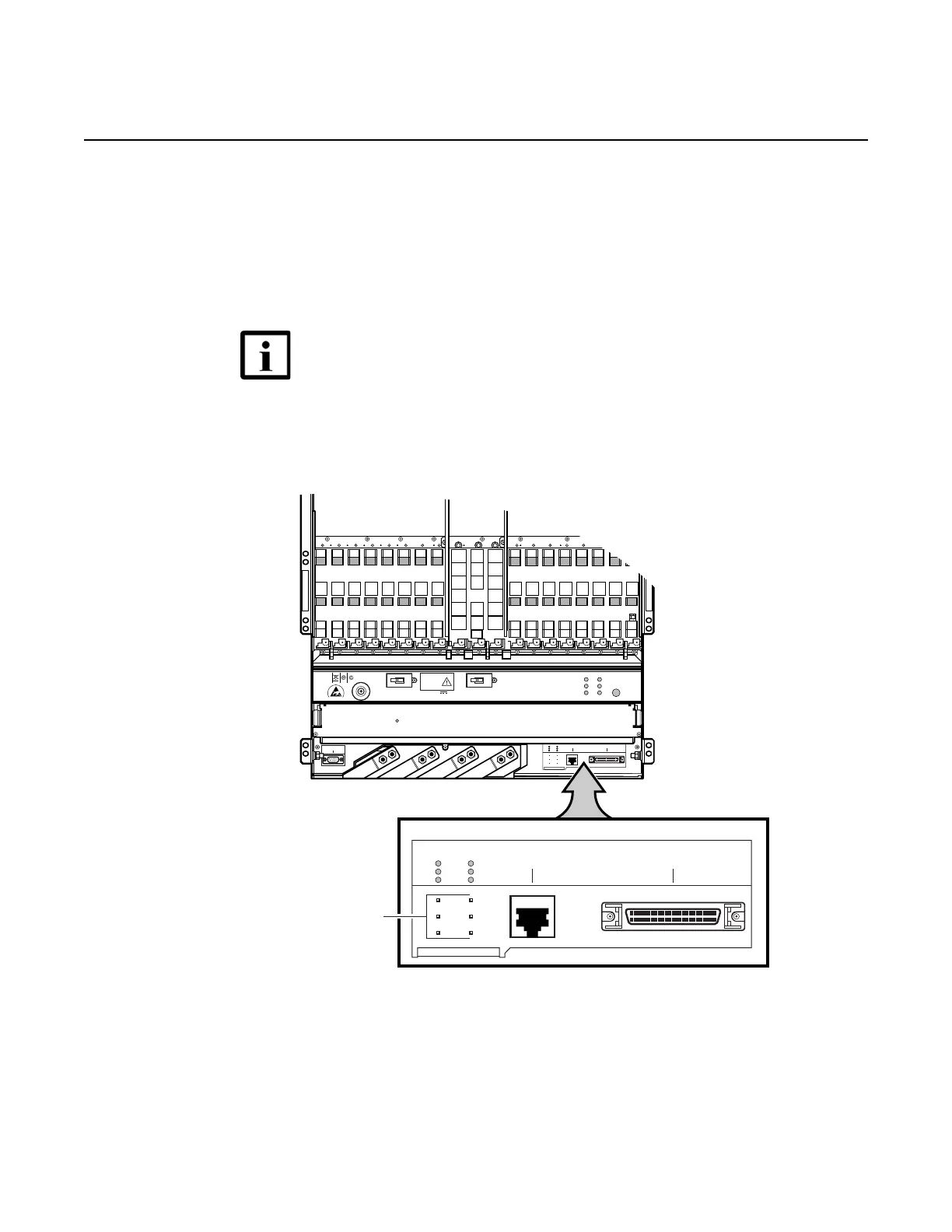

Figure 42 shows the BITS interface connections on the 7360 ISAM FX-16.
Figure 42 BITS interface connections on 7360 ISAM FX-16
The BITS cables need to be wire-wrapped to the pins according to the BITS interface
connections. For a description of the BITS connector pinning, see Appendix 25.
Note — Connect the drain wire (FG) at one end only, either at
the 7360 ISAM FX-16 or at the source.
Energy Hazard
ALM
01 02 03 04 05 06 07 08 NTA NTIO NTB 09 10 11 12 13 14 15 16
7360 ISAM FX-16
N594
R
T
H
A
E
B
O
N
D
I
N
G
P
O
I
N
T
ESD
ON
OFF
A/70 FOR LT
ON
OFF
B/70 FOR LT
-48V 70A
Energy Hazard
BAT A
BAT B
ACO
CRITICAL
MAJOR
MINOR
BITS INTERFACE
TIME OF DAY
1 Hz-PULSE
NT-A NT-B
RING
TIP
FRAME GND
CO ALARMS
CRAFT PORT
TB1-2 BA
T
RTN A
TB1-3 B
A
T
RTN B
TB1-1 -48V B
A
T
A
TB1-4 -48V B
A
T
B
22213
BITS INTERFACE
TIME OF DAY
1 Hz-PULSE
NT-A NT-B
RING
TIP
FRAME GND
CO ALARMS
BITS connector
