7360 ISAM FX-4 shelf cabling
358
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

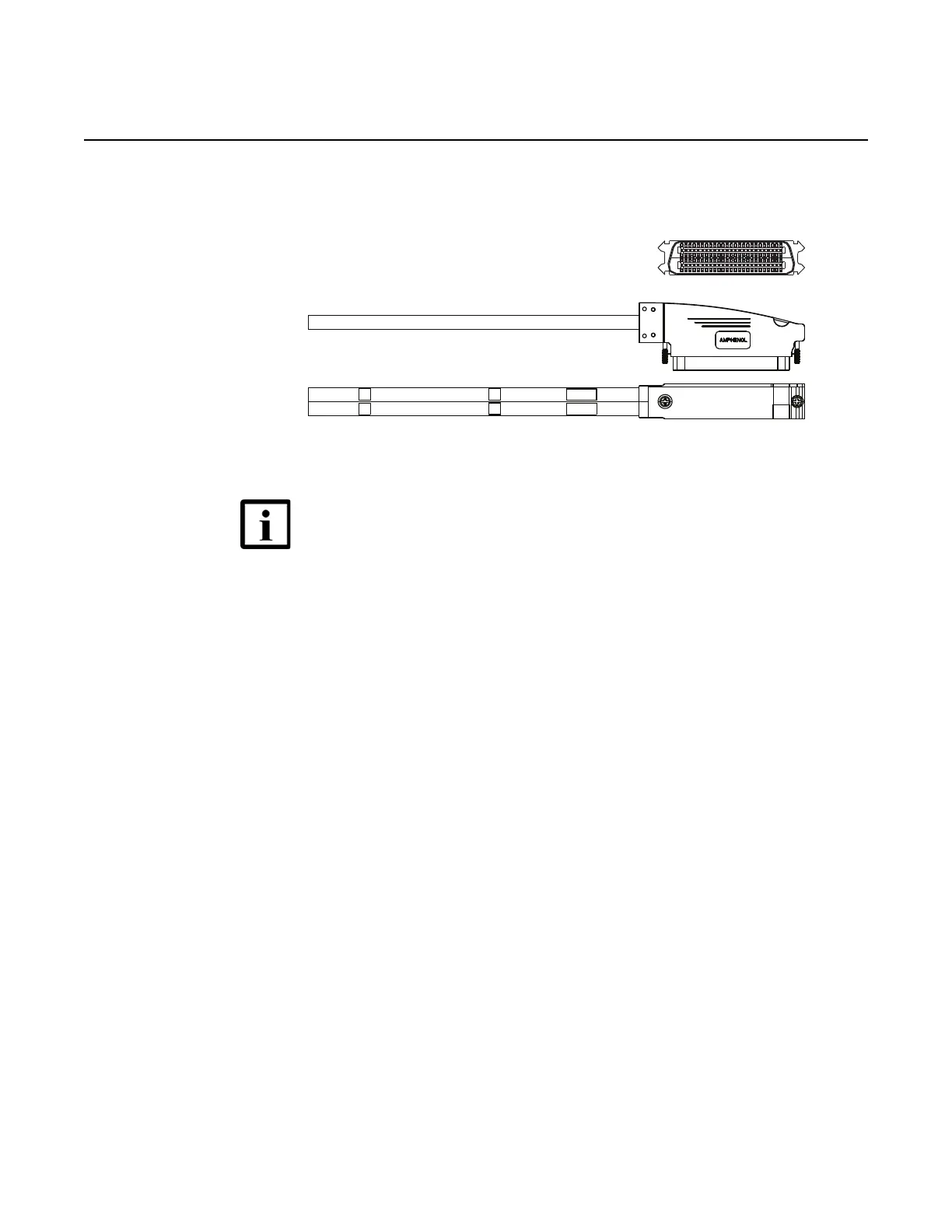

Figure 203 MDF cable for 48-line cards
18.11.2 Prerequisites
The following tools are required:
• MDF (LINE/POTS) cables as provided by Nokia
• an antistatic wrist strap
• tie-wraps
• lacing cord for tying up and/or bundling cables
Note 1 — See Appendix 25 for the pinning of the CHAMP100
connectors.
Note 2 — See the 7360 ISAM FX Product Information Guide for
ordering information.
Solder side
125
76 100
26
50
51
75
No3455
