Installing a 7360 ISAM FX-4 shelf
324
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

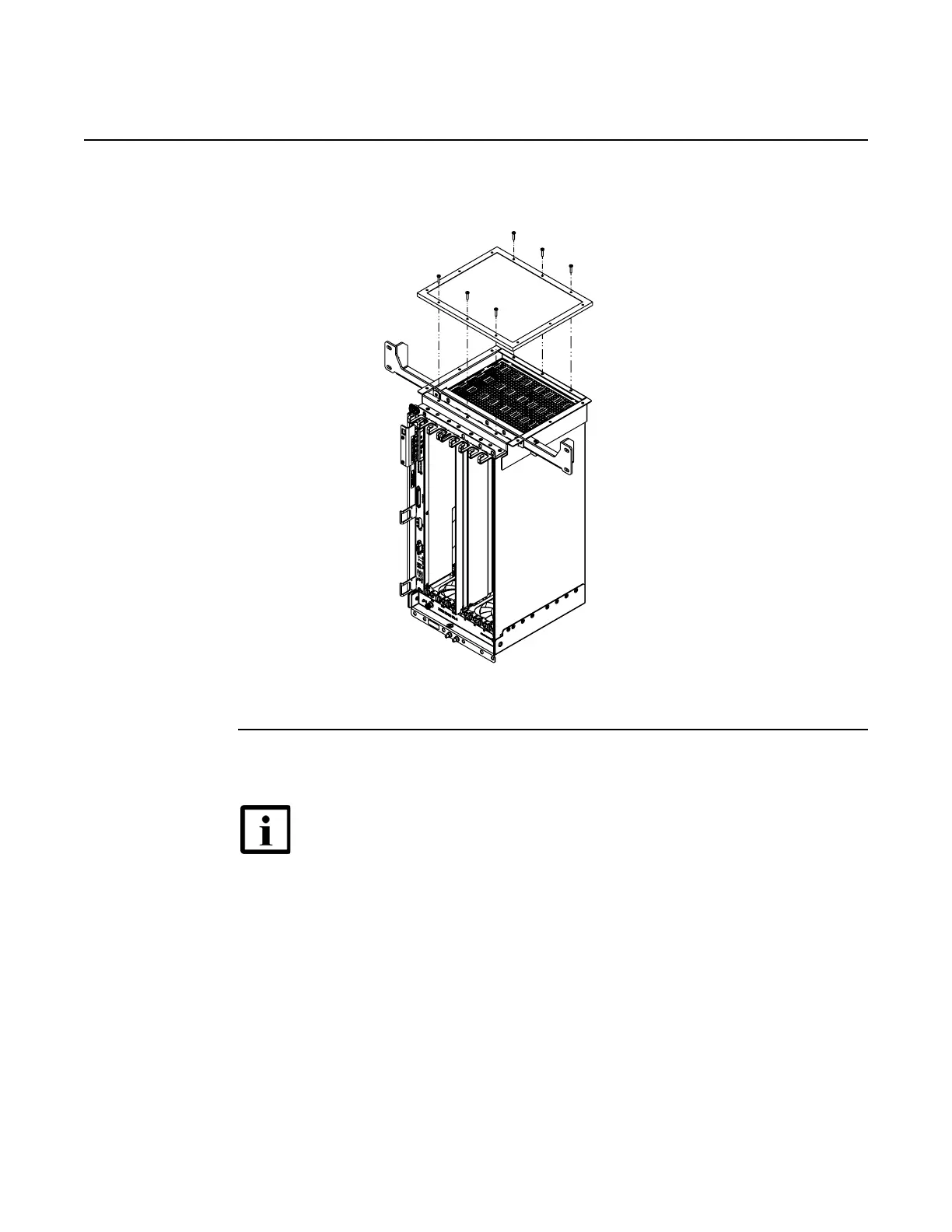

Figure 179 Mounting the 7360 ISAM FX-4 intumescent panel onto the skirt
assembly
10 Orient the top baffle horizontally over the top of the intumescent panel aligning the holes, and
attach it to the intumescent panel using the M3 × 14 mm screws as shown in Figure 180.
Note — Torque the mounting bracket screws to 4.3 in. to 6.3 in. per lbs
after placing it on top of the intumescent panel.
23581
