ANSI Hardware Installation Manual Installing a 7360 ISAM FX-16 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 87
DRAFT
3 Mount the drip tray in the lower mounting position, as shown in Figure 26. Attach the drip tray
with screws to the rack uprights.

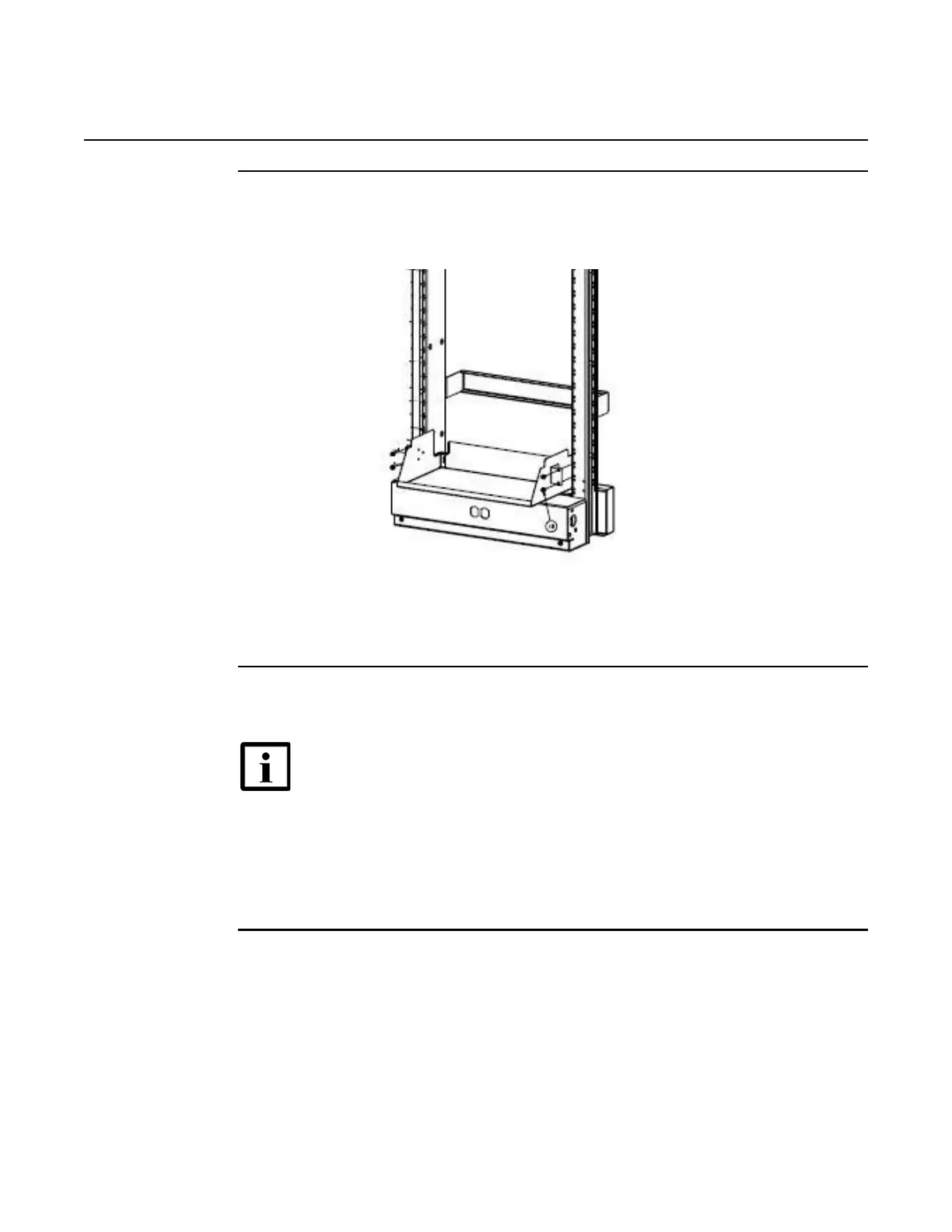

Figure 26 Mounting 7360 ISAM FX-16 lower drip tray
4 If mounting a second shelf in the rack, verify the upper shelf unit and drip tray mounting
positions; see Figure 22.
5 Mount the drip tray in the upper mounting position. Attach the drip tray with screws to the rack
upright, as shown in Figure 27.
Note 1 — Ensure the heat and fiber baffle kit is installed onto the first
7360 ISAM FX-16 shelf mounted in the lower mounting position in the
rack prior to installing the drip tray for a second 7360 ISAM FX-16 shelf
in the upper mounting position in the rack.
Note 2 — If replacing the heat and fiber baffle kit from the
7360 ISAM FX-16 shelf installed in the lower mounting position of the
rack, the drip tray installed under a second 7360 ISAM FX-16 shelf
mounted in the upper mounting position of the rack must first be removed
to ensure no interference with the replacement installation.
