Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-8 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 227
DRAFT

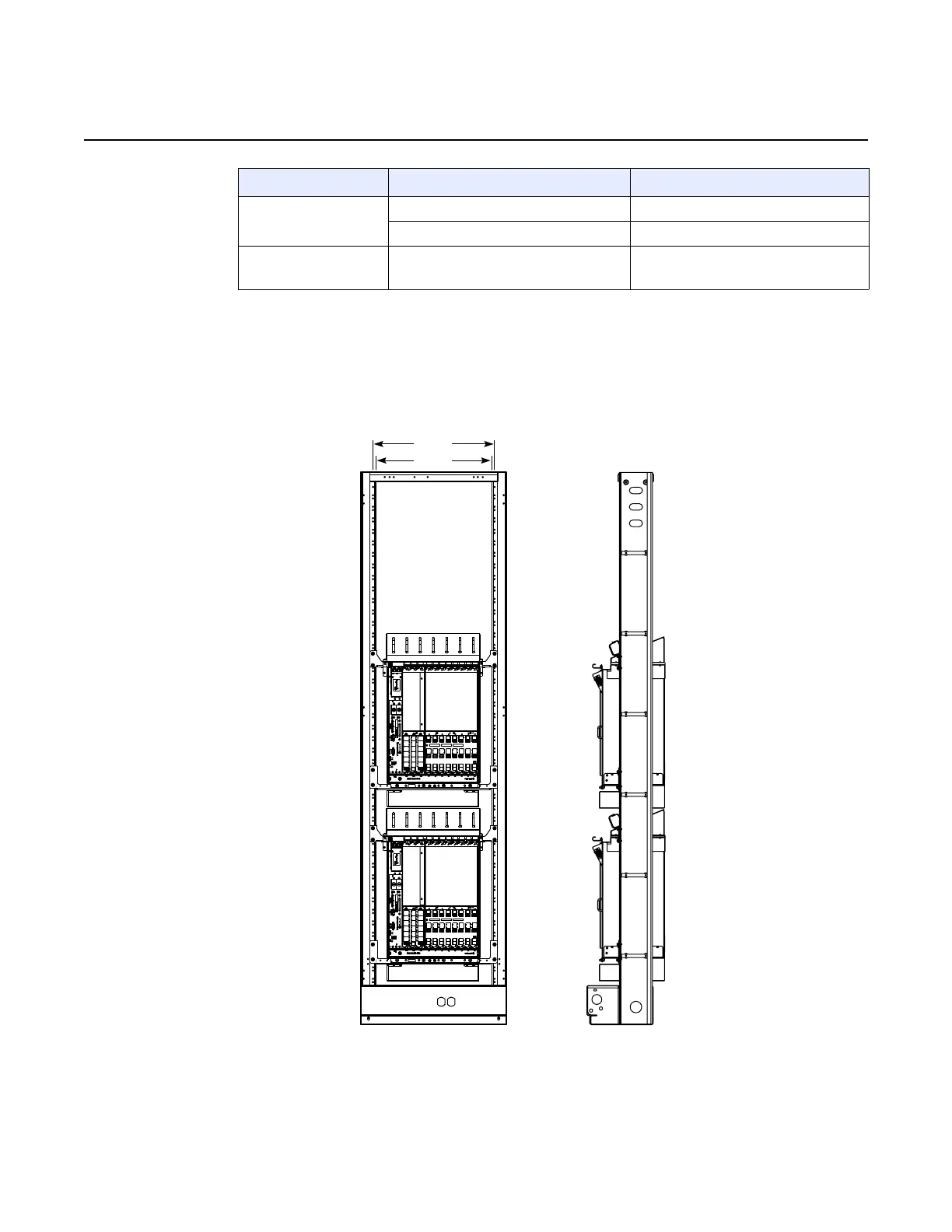

Figure 116 shows the 7360 ISAM FX-8 vertical rack mounting configuration in a 19
in. EIA standard rack.
Figure 116 Vertical mounting configuration for 7360 ISAM FX-8 in a 19 in.
EIA standard rack
SR 2 NFXS-E NFXS-E
Vertical shelf mount kit Vertical shelf mount kit
Fan 2 BFAN-E
(with fan filter)
BFAN-E
(with fan filter)
Rack unit EIA standard 19 in. rack (17.75 in. I.D.) Seismic 19 in. rack (17.5 in. I.D.)
(2 of 2)
18.312
17.750
23345
