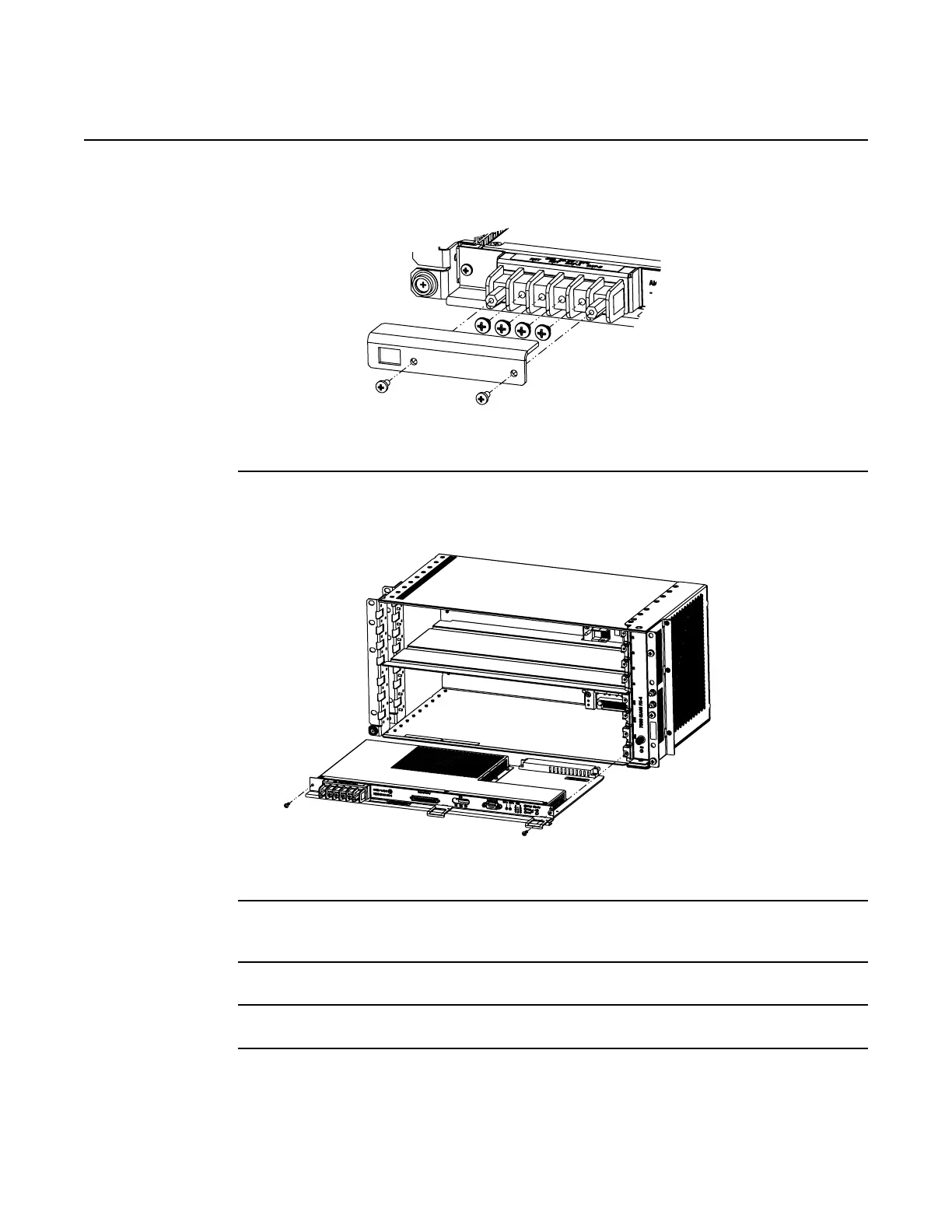

Nokia 7360 Intelligent Services Access Manager FX Series - Figure 222 Remove Safety Cover and Power Cable Screws on 7360 ISAM FX-4; Figure 223 Remove Fixation Screws for NGFC-G Card

ANSI Hardware Installation Manual Installing cards in the 7360 ISAM FX-4 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 381
DRAFT
Figure 222 Remove safety cover and power cable screws on 7360 ISAM FX-
4
3 Remove the fixation screws located on the front panel of the card; see Figure 223.
Figure 223 Remove fixation screws for NGFC-G card
4 Remove the NGFC-G card from the shelf and wear the antistatic wrist strap. Place the card
in an ESD protective bag.
5 Remove the new NGFC-G card from its ESD protective bag. Wear the antistatic wrist strap.
6 Slide the new NGFC-G card in its slot.
7 Secure the NGFC-G card in place with the fixation screws. Maximum torque: 1 N.m ±10%.
