Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual 7360 ISAM FX-4 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 359
DRAFT
Procedure 79 MDF cabling procedure for LT cards with integrated splitter
Proceed as follows to connect the MDF cables for LINE and POTS to the LT card with integrated
splitter:
1 Connect the MDF cable for the LINE to the right-hand CHAMP connector on the LT card with
integrated splitter, as shown in Figure 204.

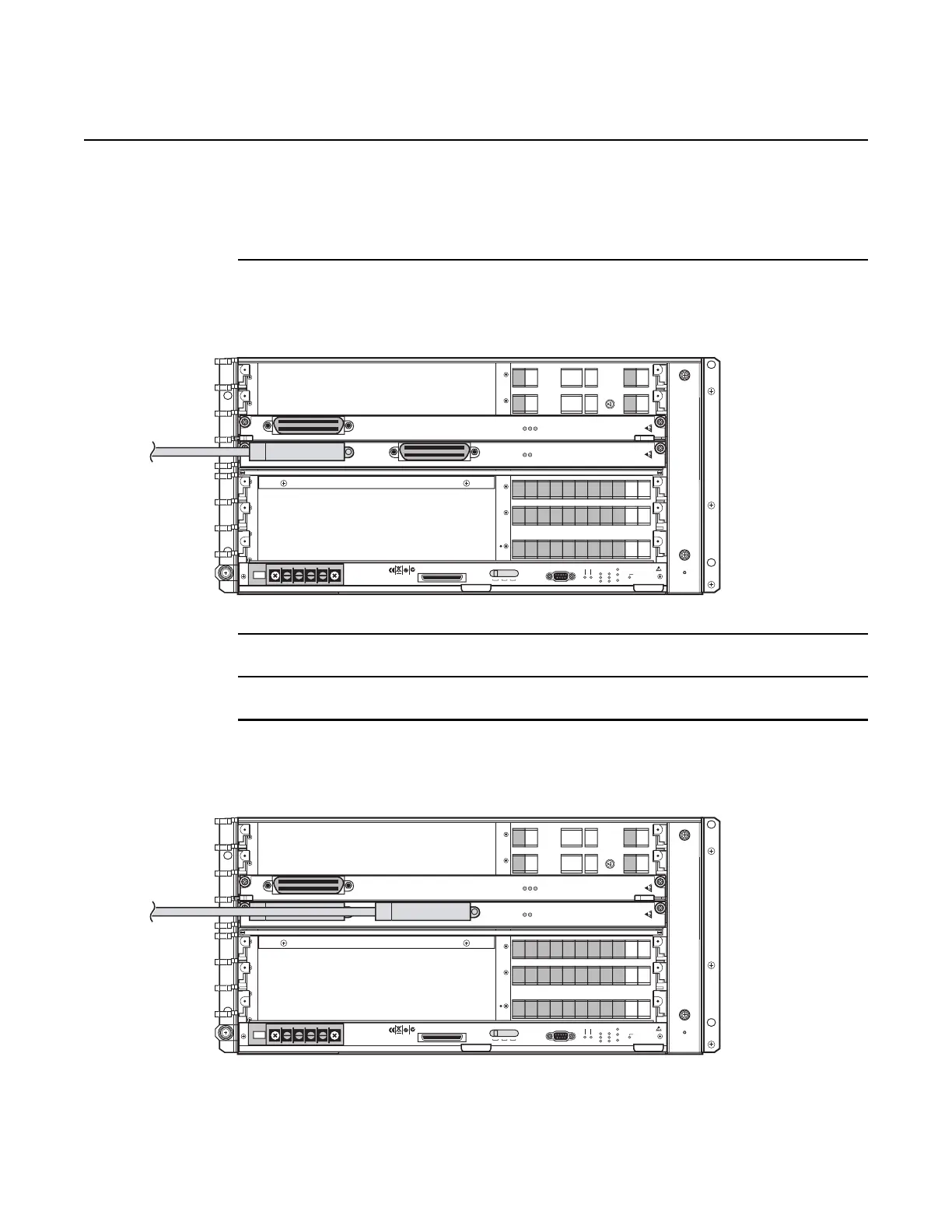

Figure 204 MDF cable LINE connection on 7360 ISAM FX-4
2 Secure the connector with standoffs and nuts.
3 Route and connect the other end of the MDF cable as per site practices.
4 Connect the MDF cable for the LINE to the left-hand CHAMP connector on the LT card with
integrated splitter, as shown in Figure 205.
Figure 205 MDF cable POTS connection on 7360 ISAM FX-4
FAN
NTA NTIO NTB 01 02 03 04
23896
7360 ISAM FX-4
TOD/IHZ
Critical Alarms
FUSE BAT A Remote CraftBITSExternal Alarms
NTA GND NTB
Major
ACO
1
AB
2
3
Minor
BAT B
N594
7360 ISAM FX-4
xDSL
PWR ALM MAJ
POTS LINE
PWR
ALM
FAN
NTA NTIO NTB 01 02 03 04
23897
7360 ISAM FX-4
TOD/IHZ
Critical Alarms
FUSE BAT A Remote CraftBITSExternal Alarms
NTA GND NTB
Major
ACO
1
AB
2
3
Minor
BAT B
N594
7360 ISAM FX-4
xDSL
PWR ALM MAJ
POTS LINE
PWR
ALM
