3 Connect the grounding cable to one of the two frame grounding points on the top of the rack,
as shown in Figure 235, using the screws provided with the rack.

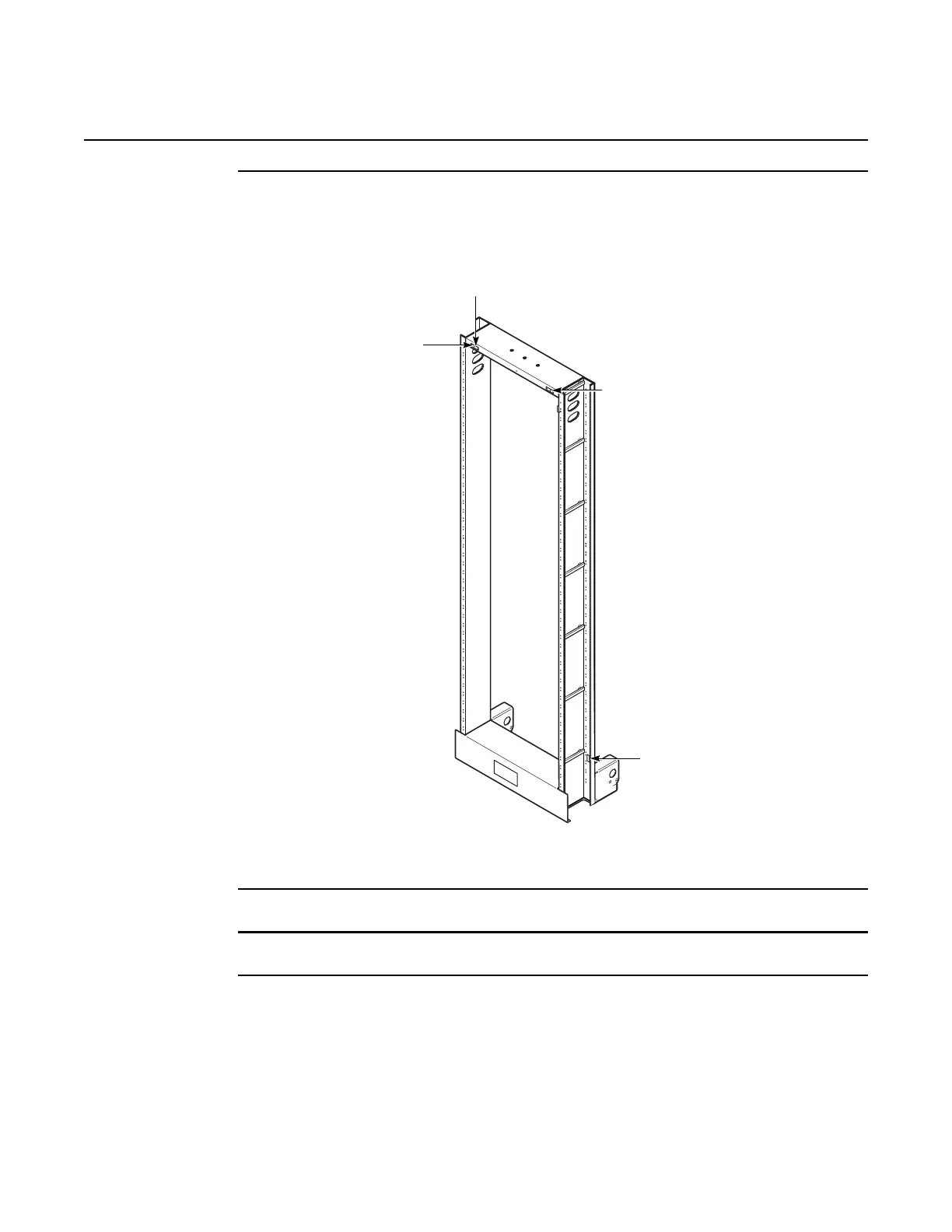

Figure 235 External frame ground point rear view
4 Perform power and ground tests as per local practices.
5 STOP. This procedure is complete.
22676
Frame ground point
Frame ground point
No. 6 AWG lug and 2 12-24 screws
(provided with the rack)
Frame ground point
(may be located on
the opposite side
on some racks)
Rack frame ground locations rear view
