Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Fiber optic cable management in the
7360 ISAM FX-4 shelf
388
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
Procedure 87 To mount the fiber management guide
Use the following procedure to mount the fiber management guide onto the 7360 ISAM FX-4.
1 Align the notches on the front of the fiber management guide with the finger guides located
on the top of the shelf, see Figure 227.

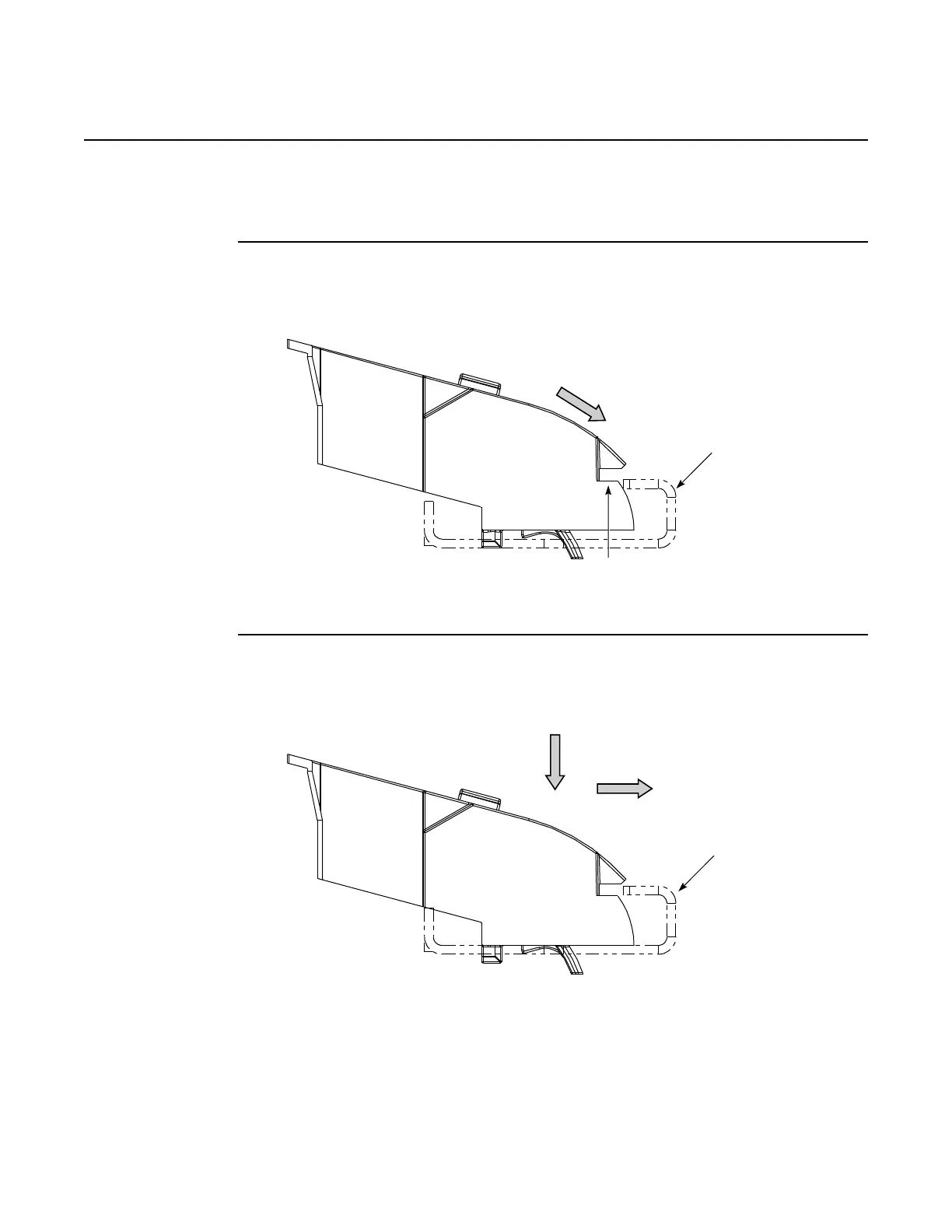

Figure 227 Alignment of 7360 ISAM FX-4 fiber management guide
2 Push down on the fiber management guide and slide it forward onto the finger guides, see
Figure 228.
Figure 228 Mount the 7360 ISAM FX-4 fiber management guide
Notch
Finger guide
22203
Finger guide
22204
