Nokia 7360 Intelligent Services Access Manager FX Series - Figure 124 Attaching the 7360 ISAM FX-8 Bottom Mounting Bracket in a 19 In.rack

Installing a 7360 ISAM FX-8 shelf
238
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

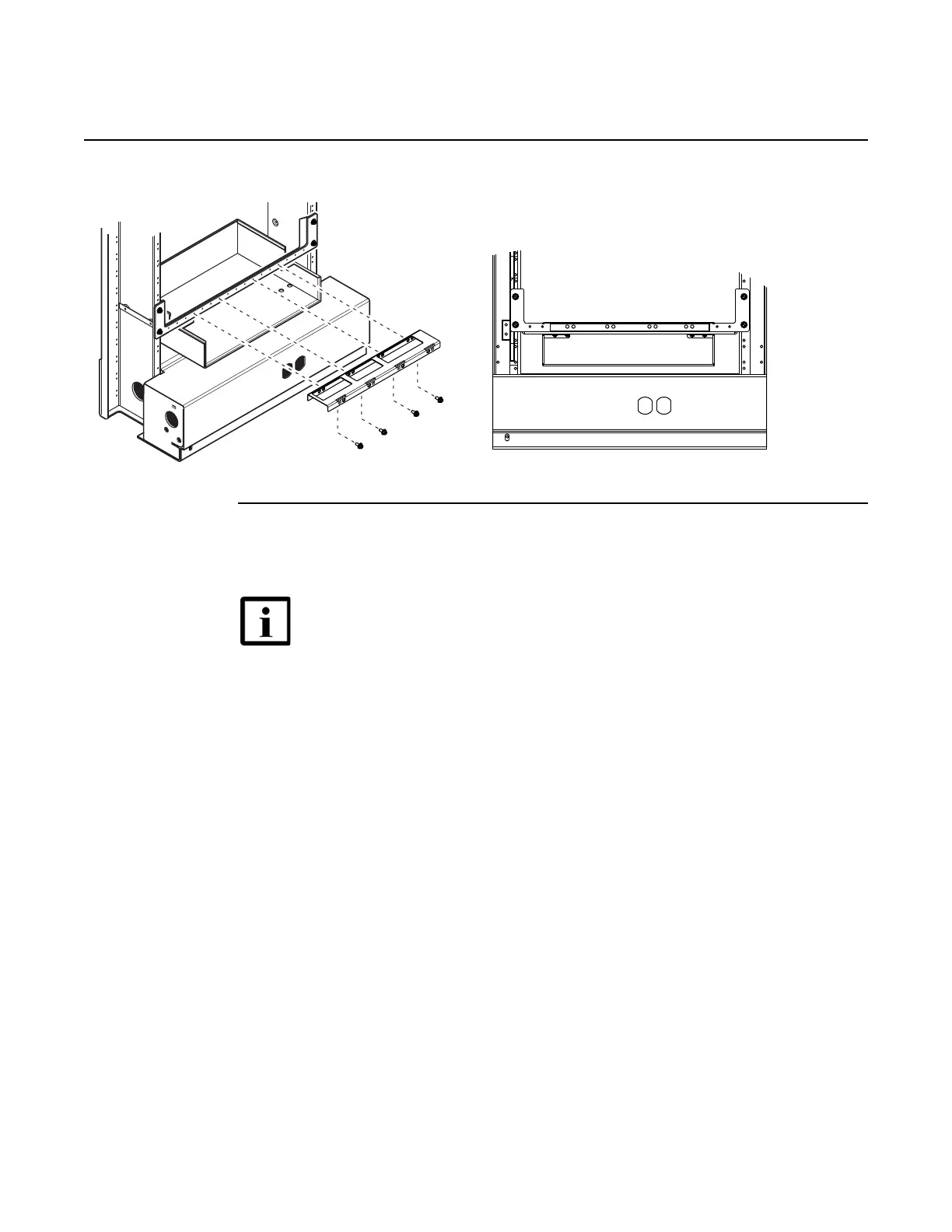

Figure 124 Attaching the 7360 ISAM FX-8 bottom mounting bracket in a 19 in.rack
12 Attach the shelf assembly above the air intake/drip tray assembly and onto the bottom
mounting bracket using the 12-24 × 1/2 in. (12.7 mm) screws and the screws and washers
that were removed earlier, as shown in Figure 125.
23561
Note 1 — Removing the bottom mounting bracket from the shelf in the
previous step allows the screws to be easily attached to the recessed
flange on the bottom of the shelf in this step.
Note 2 — Torque the mounting bracket screws to 28 in. to 30 in. per lbs
after attaching the shelf assembly to the rack.
