Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-8 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 233
DRAFT
5 Install the pre-assembled shelf horizontal mounting bracket and air intake baffle/drip tray
onto the bottom of the 19 in. rack as shown in Figure 119.

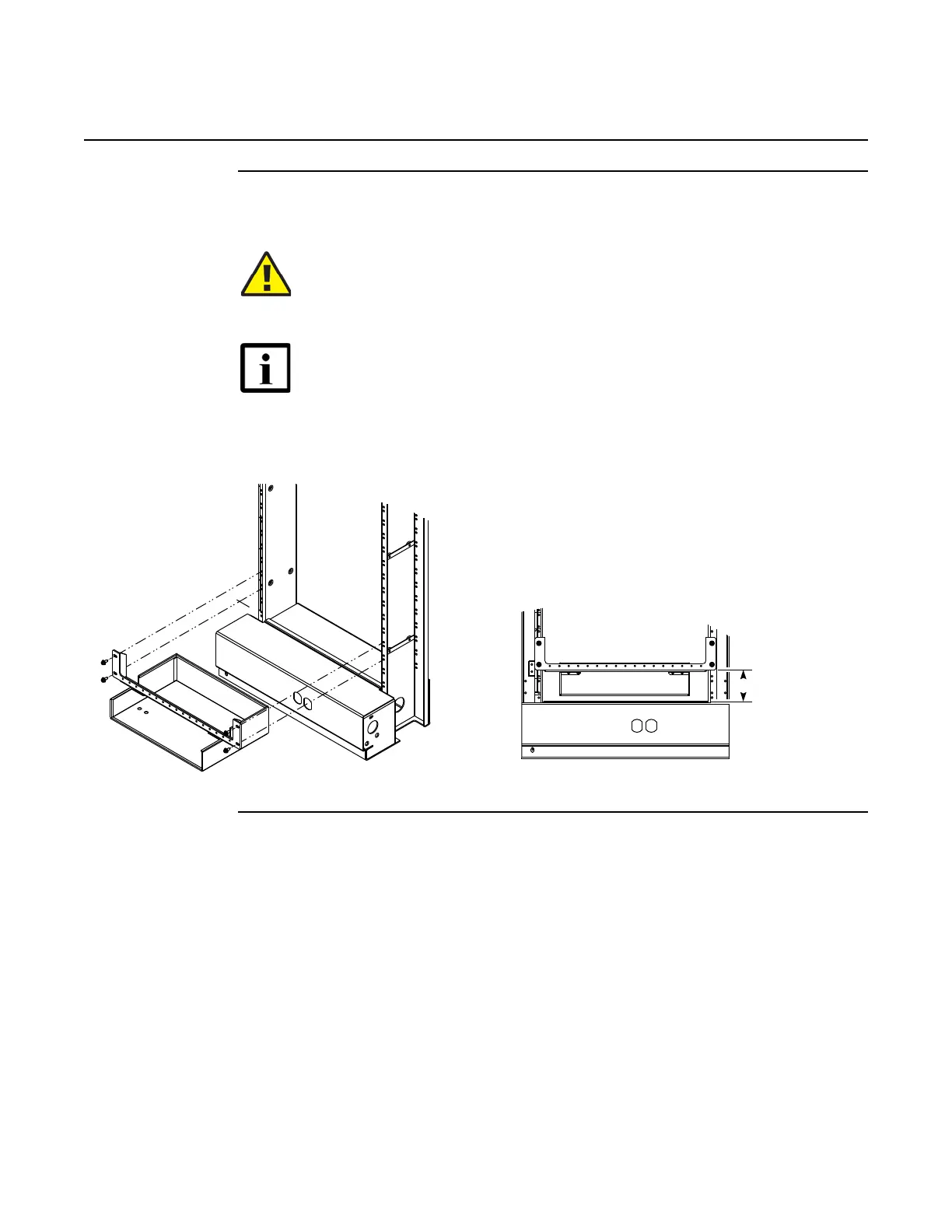

Figure 119 Mounting the 7360 ISAM FX-8 pre-assembled shelf mounting bracket and air intake
baffle/drip tray in a 19 in. rack
6 Remove and discard the top mounting bracket and screws that were shipped with the shelf,
see Figure 120 for the location.
Caution — The pre-assembled shelf mounting bracket and air intake
baffle/drip tray is required in the bottom position of each installed
7360 ISAM FX-8 shelf in a rack.
Note — Torque the mounting bracket screws to 28 in. to 30 in. per lbs
after attaching the air intake/drip tray assembly to the rack.
85.3
23352
