Connector pinning of the external interfaces
450
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
25.6.2 Line number
The following designations are used for the line number:
• T: tip
• R: ring
• NC: not connected
25.6.3 Connector pinning

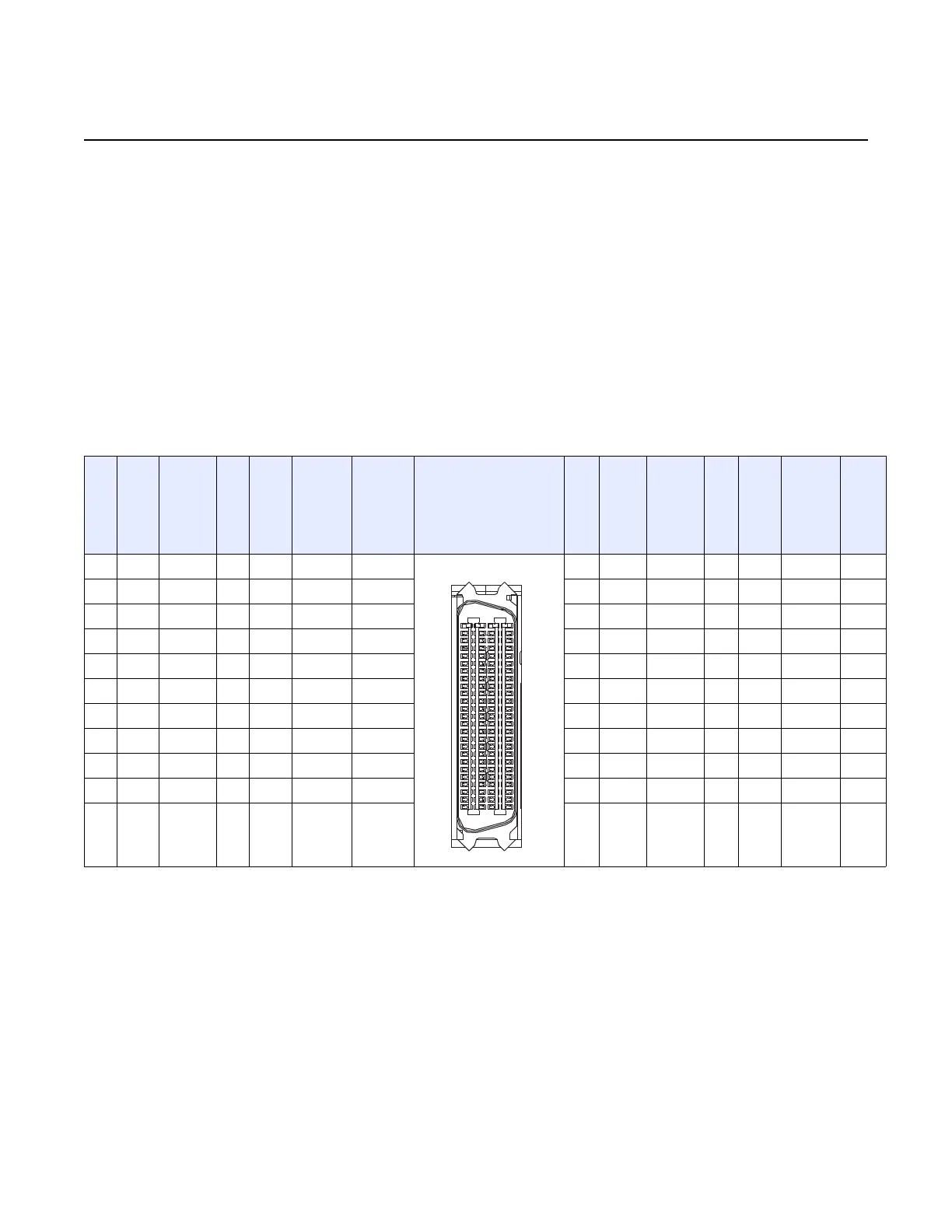

Table 26 shows the pinning for the CHAMP100 MDF cable.
Table 26 Wiring list for CHAMP100 MDF cable
Pin
Line
number
Wire
color
Pin number
Line number
Wire
color
Binder group
Connector
layout
Pin
Line
number
Wire
color
Pin number
Line number
Wire
color
Binder group
1 NC — 26 NC — Orange 51 NC — 76 NC — Blue
2 37T BK/GN 27 36T BK/OR Orange 52 13T BK/GN 77 12T BK/OR Blue
3 37R GN/BK 28 36R OR/BK Orange 53 13R GN/BK 78 12R OR/BK Blue
4 38T BK/BN 29 35T BK/BL Orange 54 14T BK/BN 79 11T BK/BL Blue
5 38R BN/BK 30 35R BL/BK Orange 55 14R BN/BK 80 11R BL/BK Blue
6 39T BK/SL 31 34T RD/SL Orange 56 15T BK/SL 81 10T RD/SL Blue
7 39R SL/BK 32 34R SL/RD Orange 57 15R SL/BK 82 10R SL/RD Blue
8 40T YE/BL 33 33T RD/BN Orange 58 16T YE/BL 83 09T RD/BN Blue
9 40R BL/YE 34 33R BN/RD Orange 59 16R BL/YE 84 09R BN/RD Blue
10 41T YE/OR 35 32T RD/GN Orange 60 17T YE/OR 85 08T RD/GN Blue
11 41R OR/YE 36 32R GN/RD Orange 61 17R OR/YE 86 08R GN/RD Blue
(1 of 2)
