Nokia 7360 Intelligent Services Access Manager FX Series User Manual

Installing cards in the 7360 ISAM FX-4 shelf
378
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

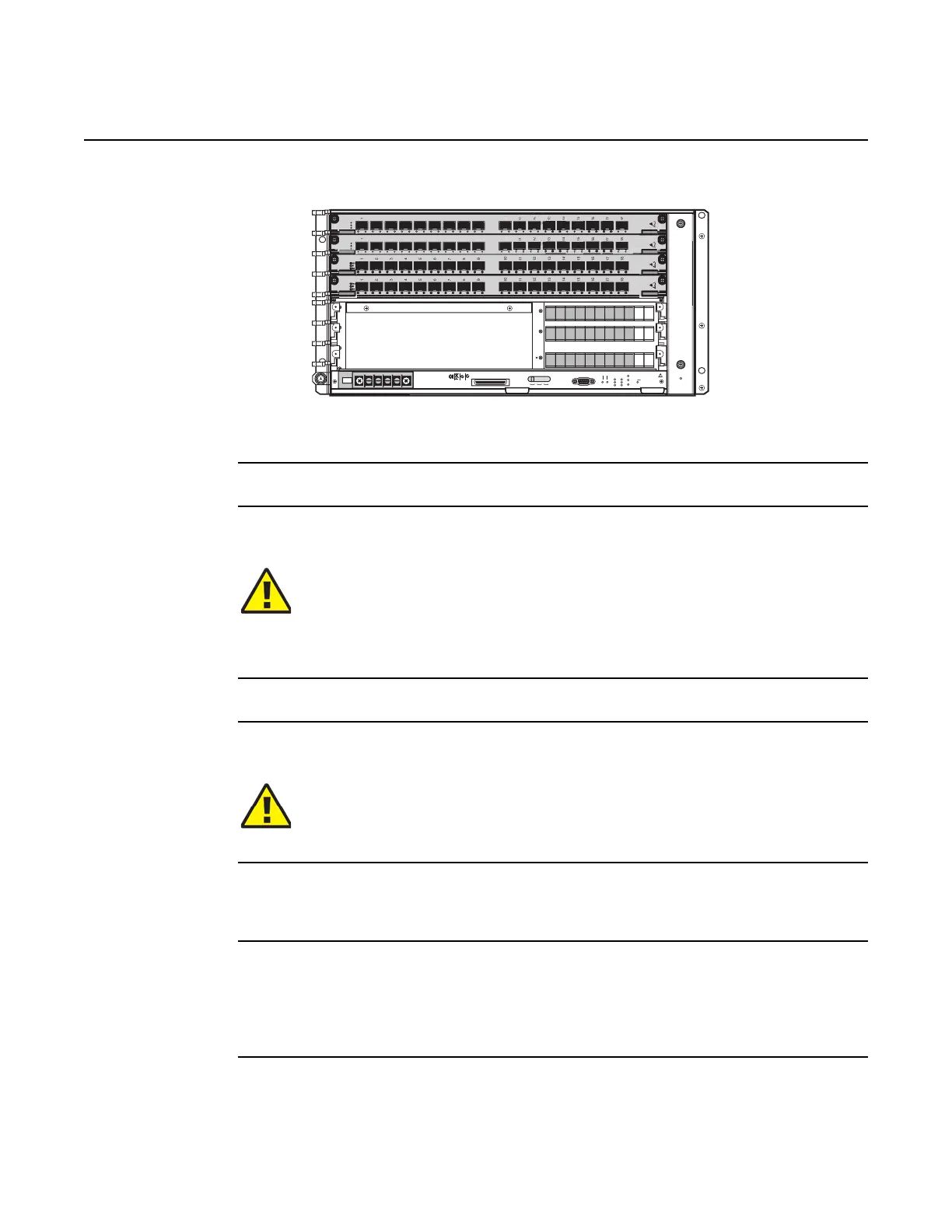

Figure 218 LT card slots in 7360 ISAM FX-4
1 Locate the free LT card slots for mounting the LT cards; see Figure 218.
2 Remove the LT card from its ESD protective bag. Wear the antistatic wrist strap.
3 Ensure the insertion/extraction tabs on the card are in the unlocked position.
4 Slide the LT card in the appropriate LT card slot.
5 Press the insertion/extraction tabs on the front panel to lock the card in place. Attach fixation
screws located at the top and the bottom of the front panel of the card; see Figure 218.
Maximum torque: 2.66 lbf-in. (0.3 N.m).
6 The card first displays a heartbeat signal, that is, the green PWR LED is flashing. Then the
card displays an enabling operation signal:
• the green PWR LED is steady on
• the red ALM LED is off
7 In the same way, install all the planned LT cards for the shelf.
Caution — Risk of damage by ESD when card is not connected.
This card contains devices that are susceptible to damage caused by
ESD in unconnected circuit conditions.
Carefully follow ESD safety precautions.
Caution — When sliding the LT card into slot 1, special attention is
required so that the solder side of the LT card does not come into contact
with the EMC shielding plate adjacent to the LT card slot. If not done
properly, this may cause damage at the solder side of the LT card.
22397
FAN
NTA NTIO NTB 01 02 03 04
7360 ISAM FX-4
TOD/IHZ
Critical Alarms
FUSE
BAT A
Remote CraftBITSExternal Alarms
NTA GND NTB
Major
ACO
1
AB
2
3
Minor
BAT B
N594
7360 ISAM FX-4
2 3 4 5 6 7 8 9 1
10
PWR
A/S
ALM
2 3 4 5 6 7 8 9 1
10
PWR
A/S
ALM
2
3
4
5
6
7
8
9
1
10
PWR
A
/S
ALM
ALM
2
3
4
5
6
7
8
9
1
1
0
PWR
A
/S
ALM
ALM
