Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual 7360 ISAM FX-8 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 275
DRAFT
Procedure 58 MDF cabling procedure for LT cards with integrated splitter
Proceed as follows to connect the MDF cables for LINE and POTS to the LT card with integrated
splitter:
1 Connect the MDF cable for the LINE to the right-hand CHAMP connector on the LT card with
integrated splitter, as shown in Figure 146.

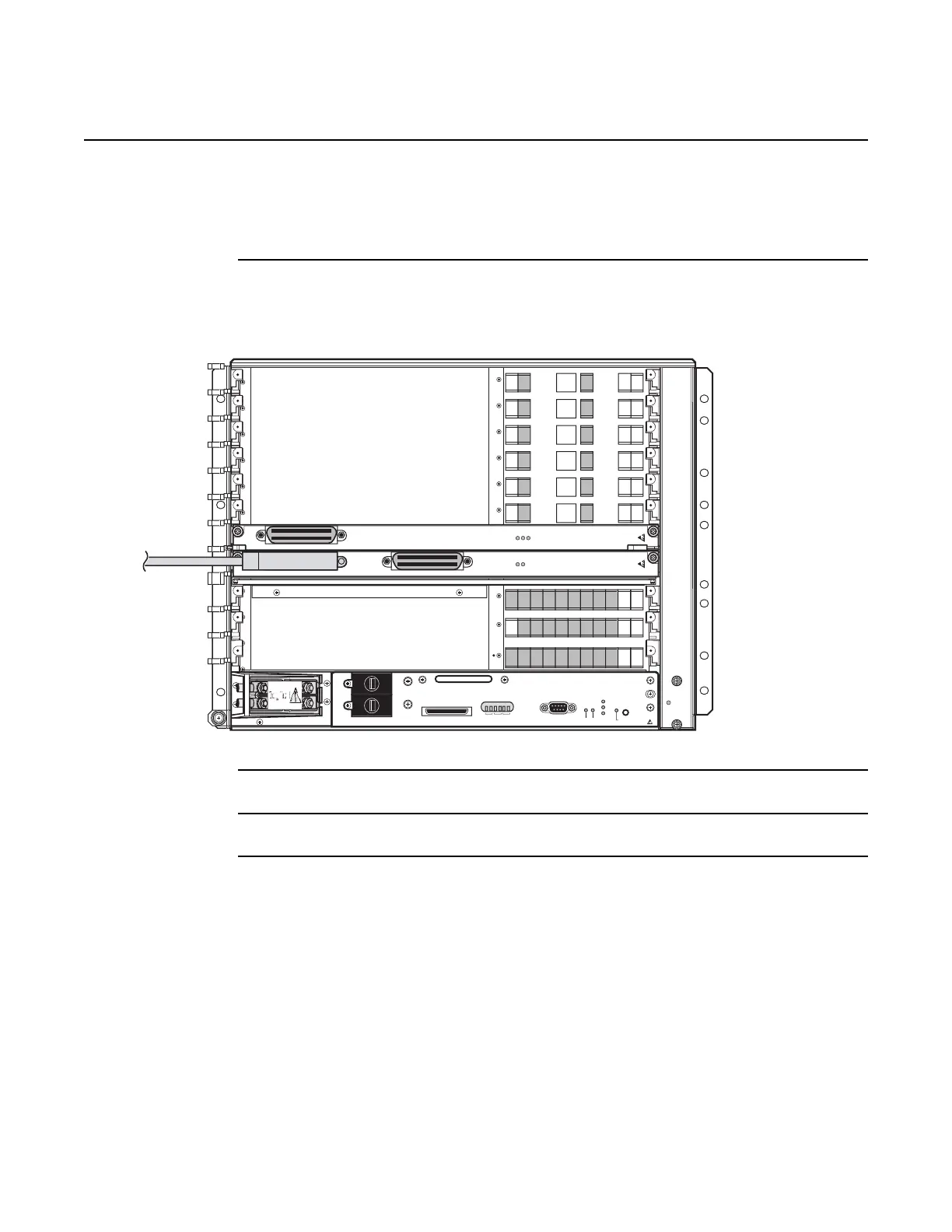

Figure 146 MDF cable LINE connection on 7360 ISAM FX-8
2 Secure the connector with standoffs and nuts.
3 Route and connect the other end of the MDF cable as per site practices.
4 Connect the MDF cable for the LINE to the left-hand CHAMP connector on the LT card with
integrated splitter, as shown in Figure 147.
TOD/IHZ
23895
FAN
NTA
NTIO NTB 01 02 03 04 05 06 07 08
7360 ISAM FX-8
Energy Hazard
Critical
Alarms
ACO
BAT A
Remote Craft
BITS
External Alarms
Major
Minor
BAT B
7360 ISAM FX-8
B-40A
A-40A
NTA GND NTB
xDSL
PWR ALM MAJ
POTS LINE
PWR
ALM
