ANSI Hardware Installation Manual Fiber optic cable management in the 7360 ISAM
FX-12 shelf
Issue: 09 3HH-12893-AAAA-TCZZA 217
DRAFT
Procedure 45 To mount the fiber management guide
Use the following procedure to mount the fiber management guide onto the 7360 ISAM FX-12.
1 Align the notches on the front of the fiber management guide with the finger guides located
along the fiber management bracket at the top of the shelf, see Figure 112.

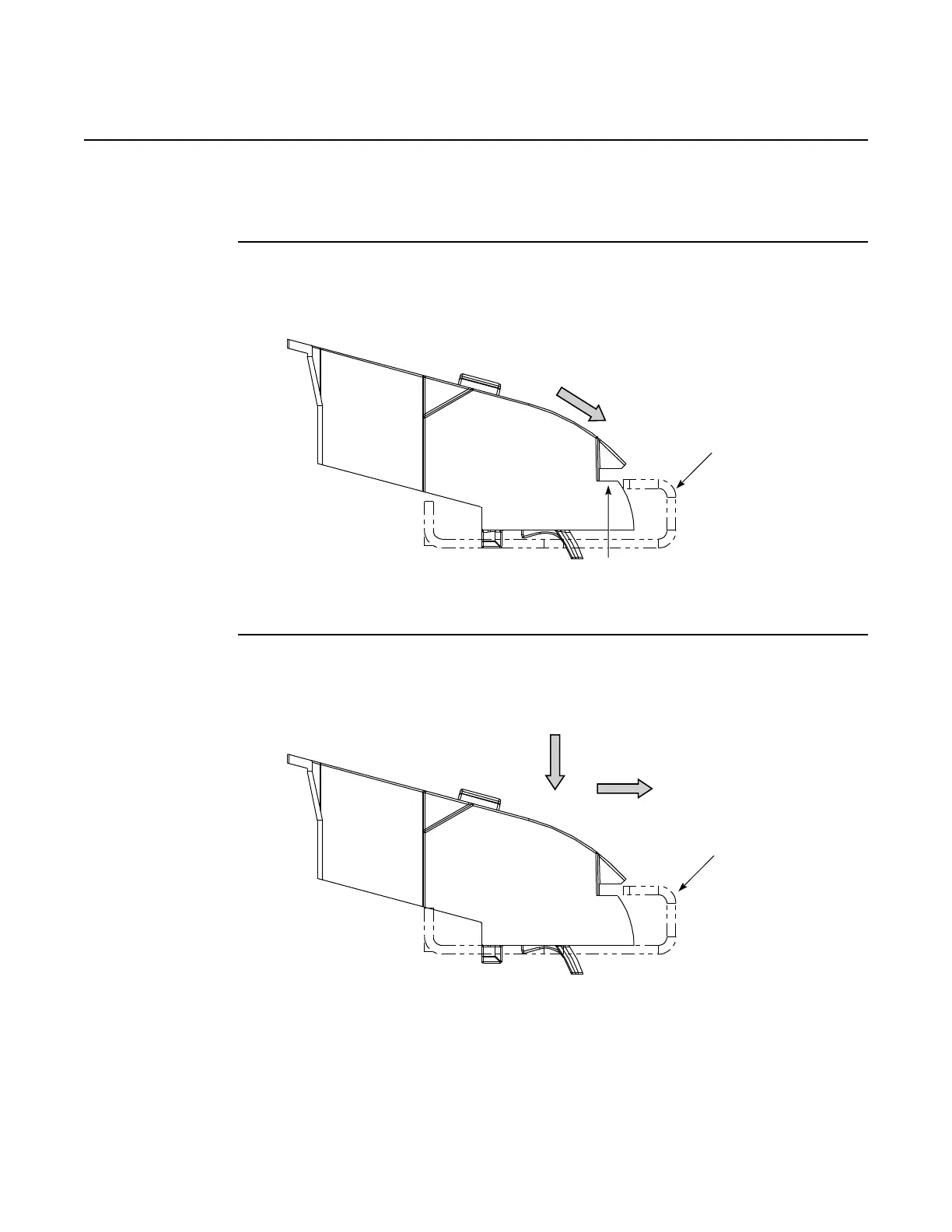

Figure 112 Alignment of 7360 ISAM FX-12 fiber management guide
2 Push down on the fiber management guide and slide it forward onto the finger guides of the
shelf, see Figure 113.
Figure 113 Mounting of 7360 ISAM FX-12 fiber management guide
