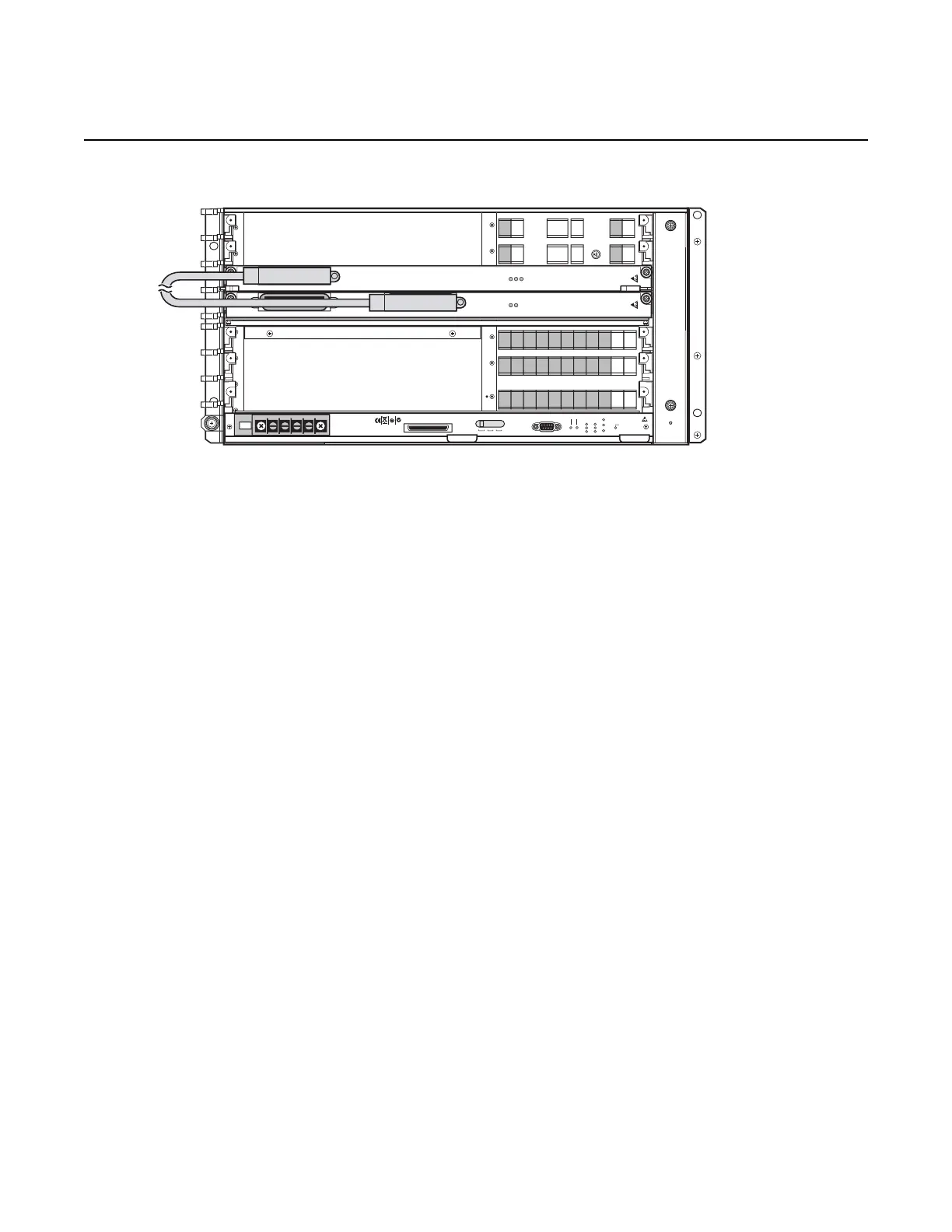

Figure 202 Combo cable connection on 7360 ISAM FX-4
18.11 POTS and LINE MDF cable connector
This section describes the procedures to install MDF cables (xDSL and POTS)
between the 7360 ISAM FX-4 and the Main Distribution Frame (MDF).
18.11.1 MDF cable type
The following cables can be used:
• for 24-line and 48-line cards: an MDF cable with two bundles of 24-pair cables and
one CHAMP100 connector; see Figure 203.
FAN
NTA NTIO NTB 01 02 03 04
23898
7360 ISAM FX-4
TOD/IHZ
Critical Alarms
FUSE BAT A Remote CraftBITSExternal Alarms
NTA GND NTB
Major
ACO
1
AB
2
3
Minor
BAT B
N594
7360 ISAM FX-4
xDSL
PWR ALM MAJ
POTS LINE
PWR
ALM
