Installing a 7360 ISAM FX-8 shelf

226

ANSI Hardware Installation Manual

3HH-12893-AAAA-TCZZA Issue: 09

DRAFT

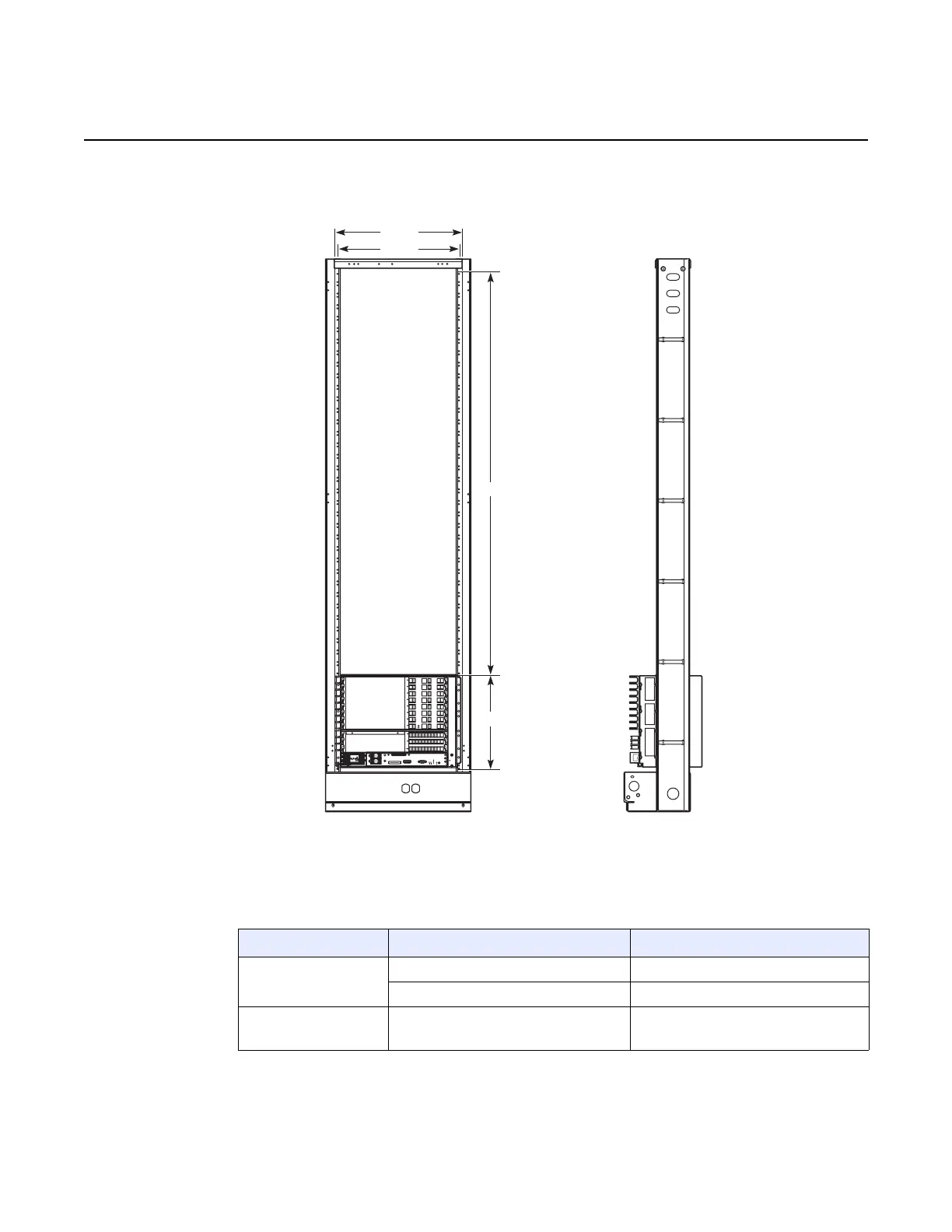

Figure 115 Horizontal mounting configuration for 7360 ISAM FX-8 in a 19 in.

EIA standard rack

Table 9 Vertical mounting configurations for 7360 ISAM FX-8 in a 19 in.

rack

Rack unit EIA standard 19 in. rack (17.75 in. I.D.) Seismic 19 in. rack (17.5 in. I.D.)

SR 1 NFXS-E NFXS-E

Vertical shelf mount kit Vertical shelf mount kit

Fan 1 BFAN-E

(with fan filter)

BFAN-E

(with fan filter)

(1 of 2)

Energy Hazzard

22736

TOD/IHZ

FAN

NTA

NTIO NTB 01 02 03 04 05 06 07 08

7360 ISAM FX-8

Energy Hazard

Critical

Alarms

ACO

BAT A

Remote Craft

BITS

External Alarms

Major

Minor

BAT B

7360 ISAM FX-8

B-40A

A-40A

NTA GND NTB

18.312

17.750

35 RU

8 RU
