Installing a 7360 ISAM FX-4 shelf
336
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
5 Attach the rack adapter brackets to the shelf using 12-24 × 1/2 in. (12.7 mm) screws as
shown in Figure 188.
Figure 188 Mounting the 7360 ISAM FX-4 rack adapter brackets to a 23 in. rack

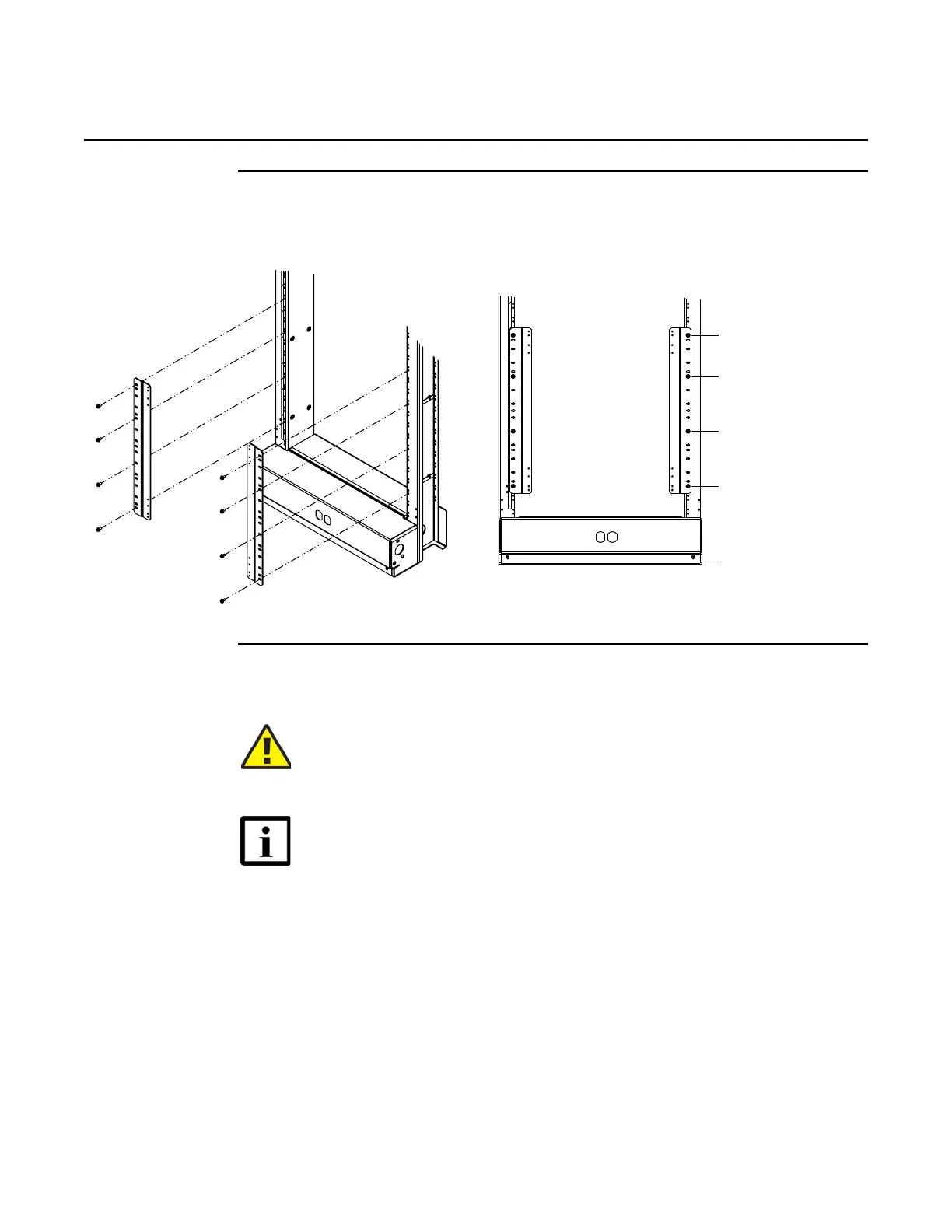

6 Install the pre-assembled shelf horizontal mounting bracket and air intake baffle/drip tray
onto the bottom of the 23 in. rack as shown in Figure 189.
23598
743.0 FEF
609.6 FEF
431.8 FEF
254.0 FEF
0.0
23605
Caution — The pre-assembled shelf mounting bracket and air intake
baffle/drip tray is required in the bottom position of each installed
7360 ISAM FX-4 shelf in a rack.
Note — Torque the mounting bracket screws to 28 in. to 30 in. per lbs
after attaching the air intake/drip tray assembly to the rack.
