Installing cards in the 7360 ISAM FX-16 shelf
126
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

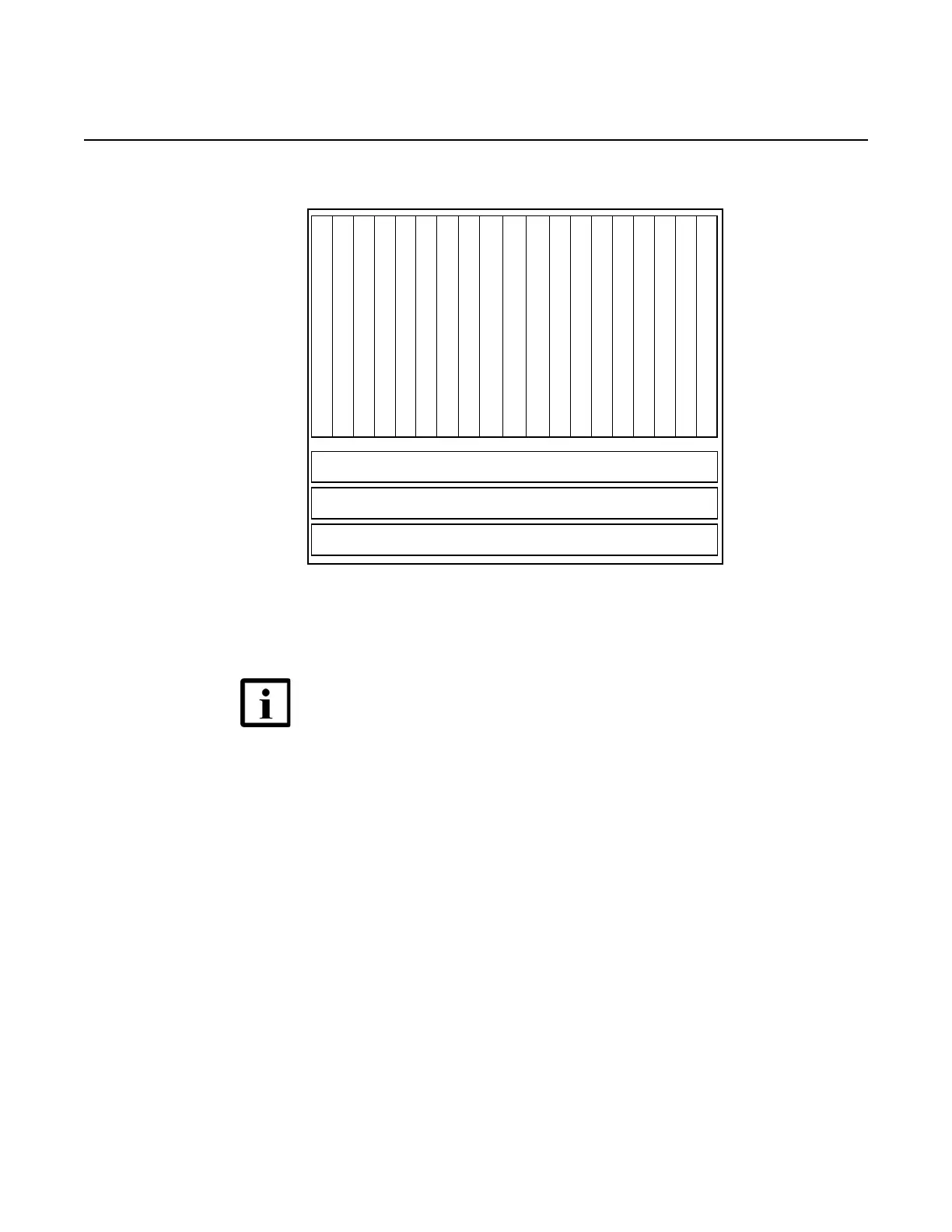

Figure 52 NT and LT slot positions in 7360 ISAM FX-16
The 7360 ISAM FX-16 can be equipped with a maximum of 16 LT cards, 2 NT cards,
and 1 NTIO card.
7.3 Dummy front panels
Dummy front panels must be installed in any unused slot of a shelf to:
• ensure EMC compliance
• ensure thermal compliance via a correct airflow in the shelf
• ensure safety by avoiding direct contact with backplane connectors
At slot deployment, the dummy front panel is replaced by the appropriate card and
the optical cables are connected to the card.
For more information on specific dummy front panels, see the 7360 ISAM FX Product
Information Guide.
Note — Due to the length of the QSFP+ cable, it is
recommended that the vectoring vector processor card be
installed in slot #9.
Fan unit
CBs, LEDs and switches
Connectors
LT
1
LT
2
LT
3
LT
4
LT
5
LT
6
LT
7
LT
8
NT
A
NTIO NT
B
LT
9
LT
10
LT
11
LT
12
LT
13
LT
14
LT
15
LT
16
22131
