Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual 7360 ISAM FX-12 shelf cabling
Issue: 09 3HH-12893-AAAA-TCZZA 177
DRAFT

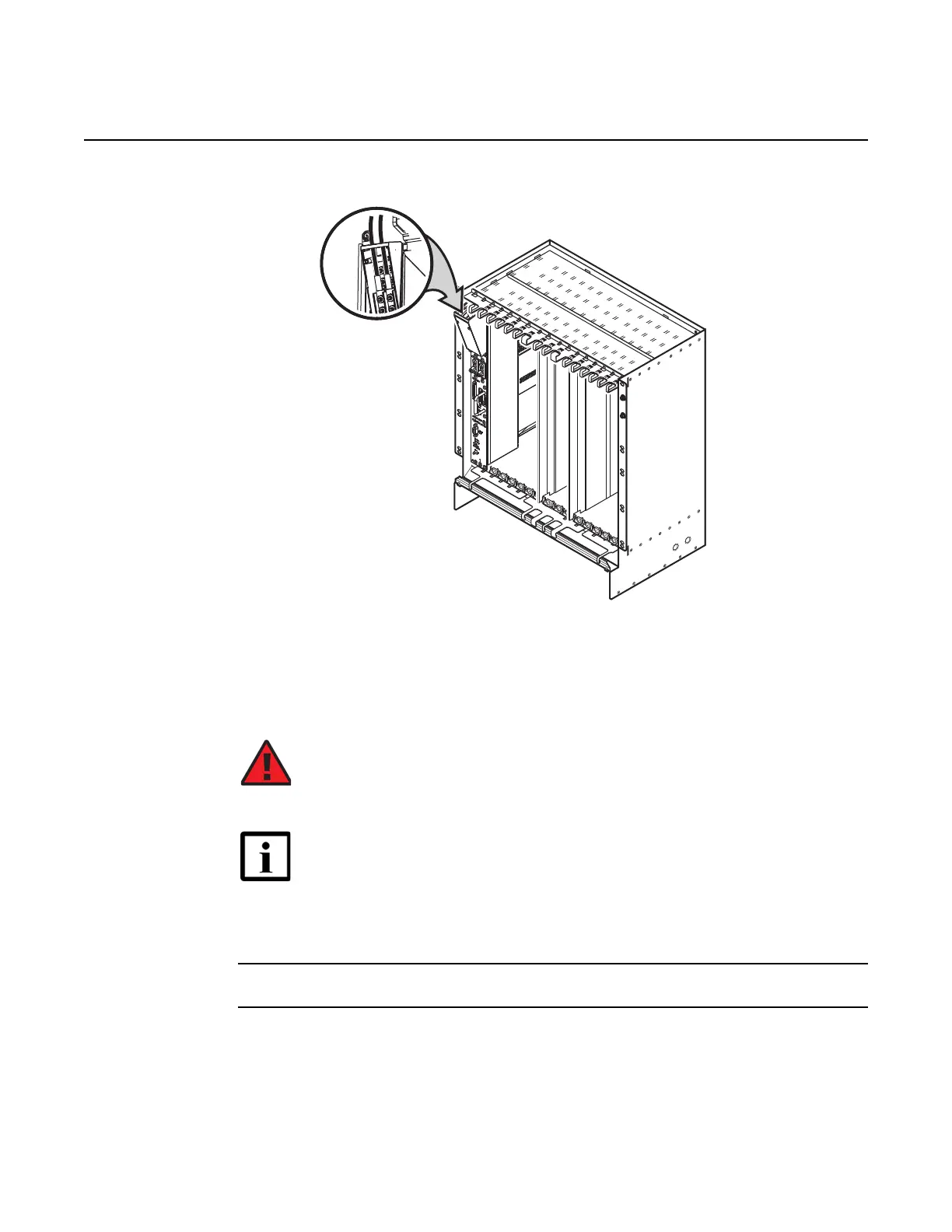

Figure 81 Power cable routing for 7360 ISAM FX-12
Procedure 35 To connect power cables
Use the following procedure to connect the power cables to the 7360 ISAM FX-12 shelf.
1 Ensure the power to the cables has been disconnected.
2 Loosen the screws on the safety cover and remove the safety cover; see Figure 82.
GFC
LT
1
LT
2
L
T
3
LT4
LT5
LT6
N
T
A
N
T
I
/
O
N
T
B
LT
7
LT
8
LT9
LT
1
0
L
T1
1
L
T
12
24952
Danger — Before connecting the power cables, make sure that the
power to the cables has been disconnected and the circuit breakers for
BAT A and BAT B are switched off.
Note 1 — Power cables connect the PDF directly to the shelf.
Note 2 — All hardware shown in Figure 82 is provided with the 7360
ISAM FX-12 shelf.
Note 3 — Avoid sharp bends in cables. Use the proper bend radius
when installing cables.
