Nokia 7360 Intelligent Services Access Manager FX Series User Manual

ANSI Hardware Installation Manual Installing cards in the 7360 ISAM WM shelf
Issue: 09 3HH-12893-AAAA-TCZZA 421
DRAFT
23.3.1 For 7360 ISAM WM power cards
A dummy front panel must be used when a second power card is not installed in the
7360 ISAM WM shelf. Figure 245 shows the dummy front panel for the
7360 ISAM WM power card slot.

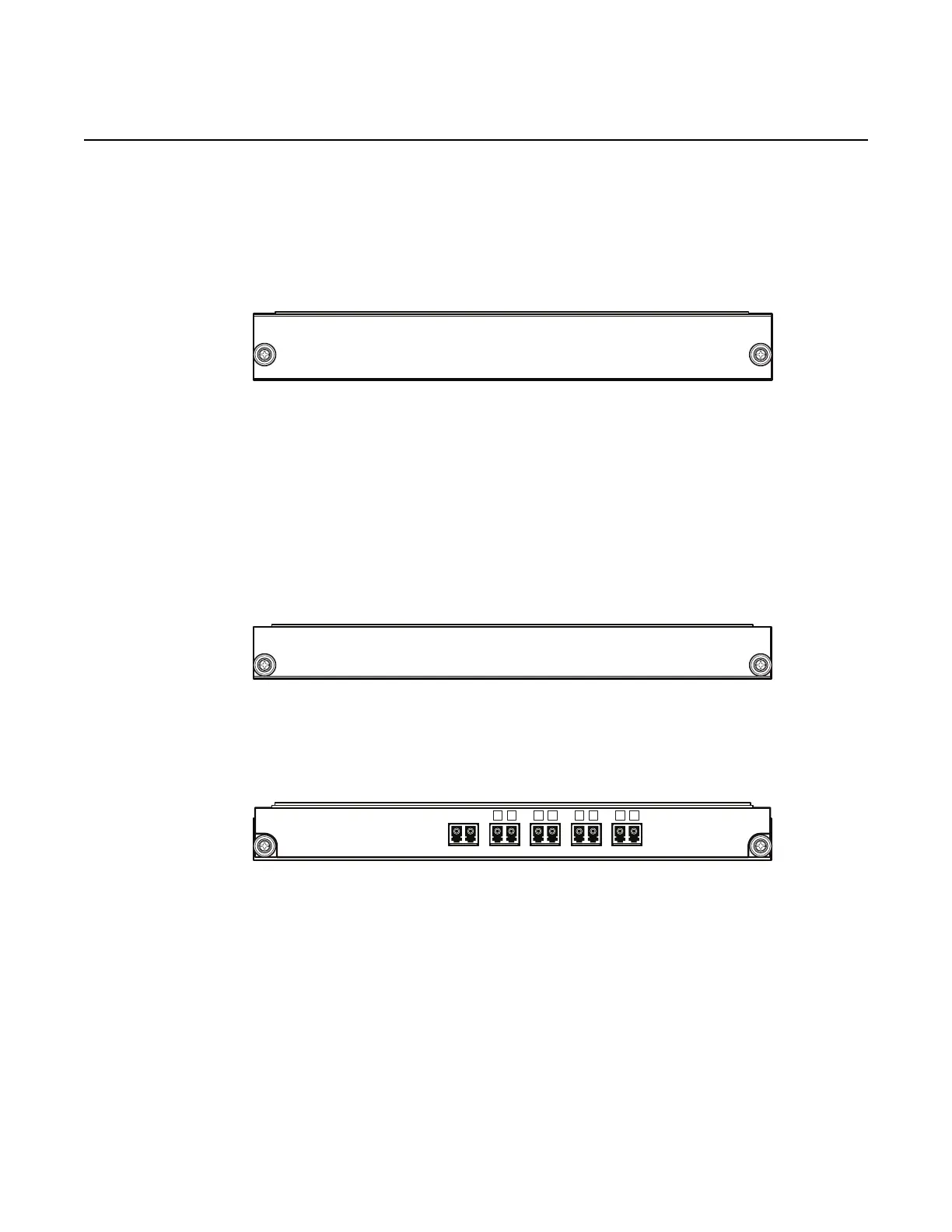

Figure 245 Dummy front panel for 7360 ISAM WM power card slots
23.3.2 For 7360 ISAM WM line cards
A dummy front panel must be used whenever a line card is not installed in any of the
line card slots of the 7360 ISAM WM shelf. Figure 246 shows the dummy front panel
to be used when the LC slot does not require pre-cabling. Figure 247 shows the
dummy front panel to be used when the LC slot does require pre-cabling.
Figure 246 Dummy front panel for 7360 ISAM WM line card slots
Figure 247 Dummy front panel with pre-cabling for 7360 ISAM WM line card
slots
23.4 Recommended tools
The following tools are recommended:
• screwdriver to secure cards
• antistatic wrist strap for handling cards with ESD sensitive devices
• ohmmeter to check connection of wrist strap to earth bounding point
25761
25760
1 2 3 4 1 2 3 4
A B
PORT BODN PORT A
25759
