Nokia 7360 Intelligent Services Access Manager FX Series - Figure 123 Mounting the 7360 ISAM FX-8 Top Baffle

To Next Page

To Previous Page

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-8 shelf

Issue: 09 3HH-12893-AAAA-TCZZA 237

DRAFT

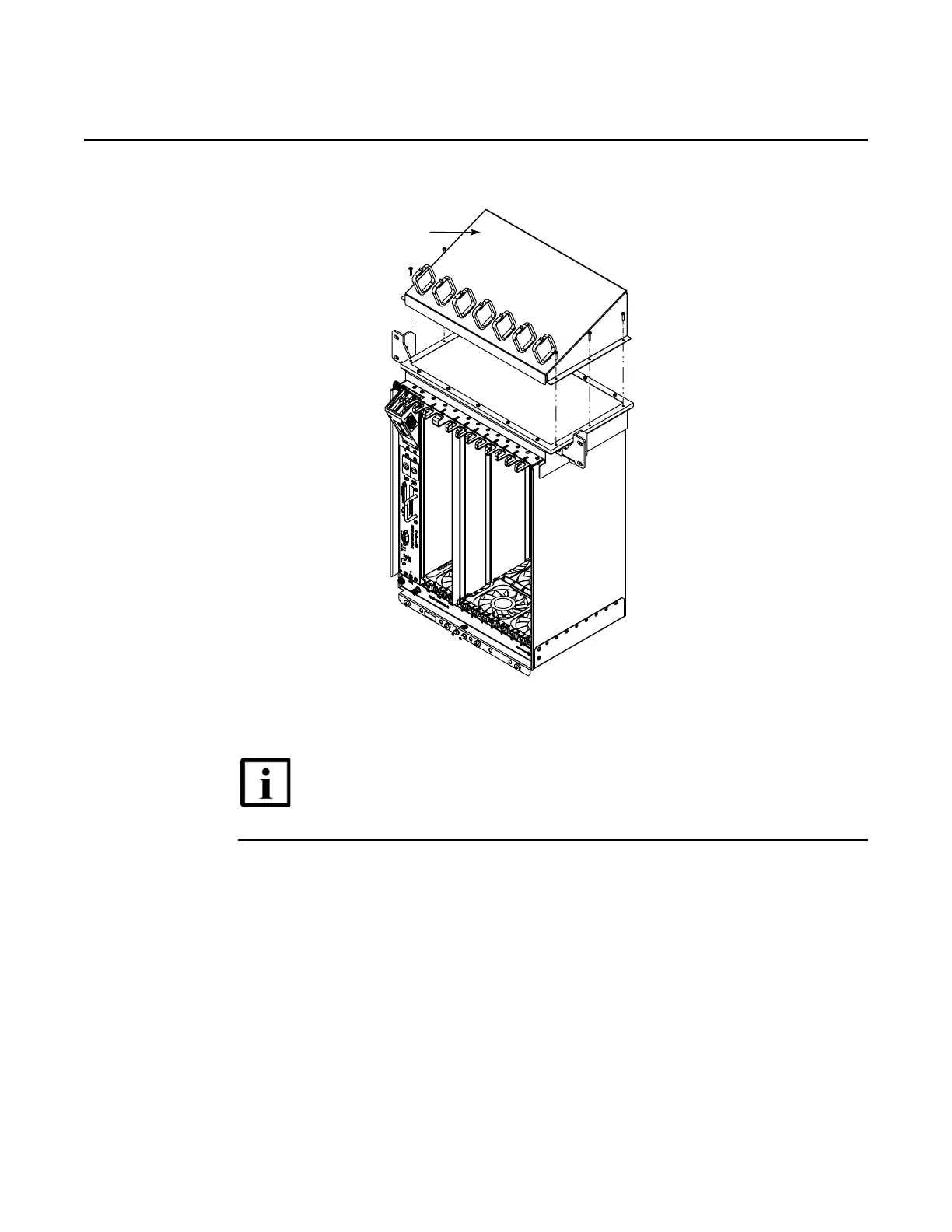

Figure 123 Mounting the 7360 ISAM FX-8 top baffle

11 Attach the bottom mounting bracket that was removed in an earlier step to the shelf horizontal

mounting bracket and the air intake baffle/drip tray assembly using the 12-24 × 1/2 in. (12.7

mm) screws. Ensure that the flange is facing down, and align the right side of the bracket to

the right side of the drip tray. See Figure 124.

Note — Proceed to step 8 to complete the 23 in. rack installation.

Continue on to step 11 for the 19 in. rack installation.

23355

Baffle
