Nokia 7360 Intelligent Services Access Manager FX Series - Figure 173 Vertical Mounting Configuration for 7360 ISAM FX-4 in a 19 In. EIA Standard Rack

To Next Page

To Previous Page

ANSI Hardware Installation Manual Installing a 7360 ISAM FX-4 shelf

Issue: 09 3HH-12893-AAAA-TCZZA 315

DRAFT

Figure 173 shows the 7360 ISAM FX-4 vertical rack mounting configuration in a 19

in. EIA standard rack.

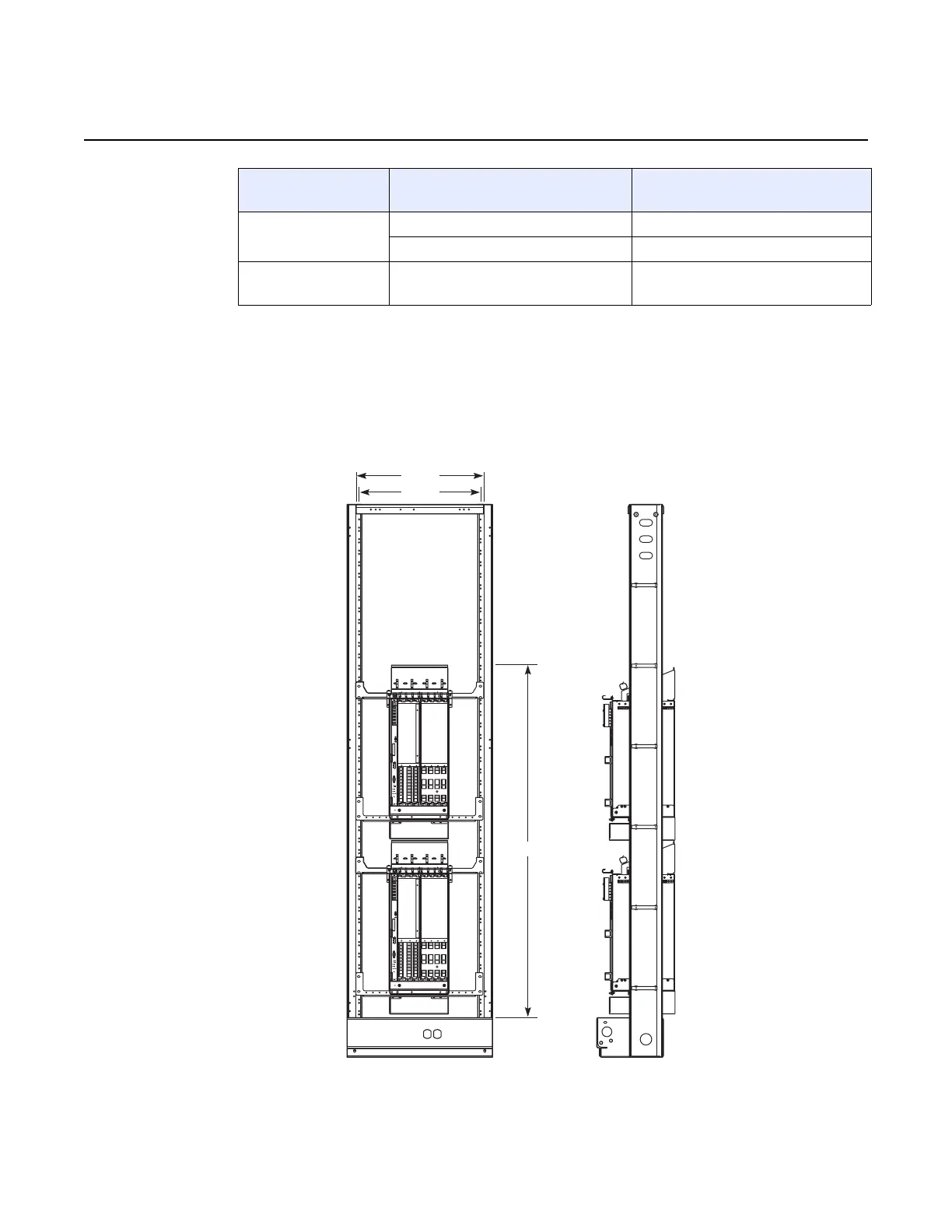

Figure 173 Vertical mounting configuration for 7360 ISAM FX-4 in a 19 in.

EIA standard rack

SR 2 NFXS-F NFXS-F

Vertical shelf mount kit Vertical shelf mount kit

Fan 2 BFAN-X

(with fan filter)

BFAN-X

(with fan filter)

Rack unit EIA standard 19 in. rack (17.75 in.

opening)

Seismic 19 in. rack (17.5 in. opening)

(2 of 2)

23567

18.312

17.750

31 RU

FAN

NTA NTIO NTB 01 02 03 04

7360 ISAM FX-4

TOD/IHZ

Critical Alarms

FUSE

BAT A

Remote CraftBITSExternal Alarms

NTA GND NTB

Major

ACO

Minor

BAT B

N594

7360 ISAM FX-4

FAN

NTA NTIO NTB 01 02 03 04

7360 ISAM FX-4

TOD/IHZ

Critical Alarms

FUSE

BAT A

Remote CraftBITSExternal Alarms

NTA GND NTB

Major

ACO

Minor

BAT B

N594

7360 ISAM FX-4
