7360 ISAM WM shelf cabling
416
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT

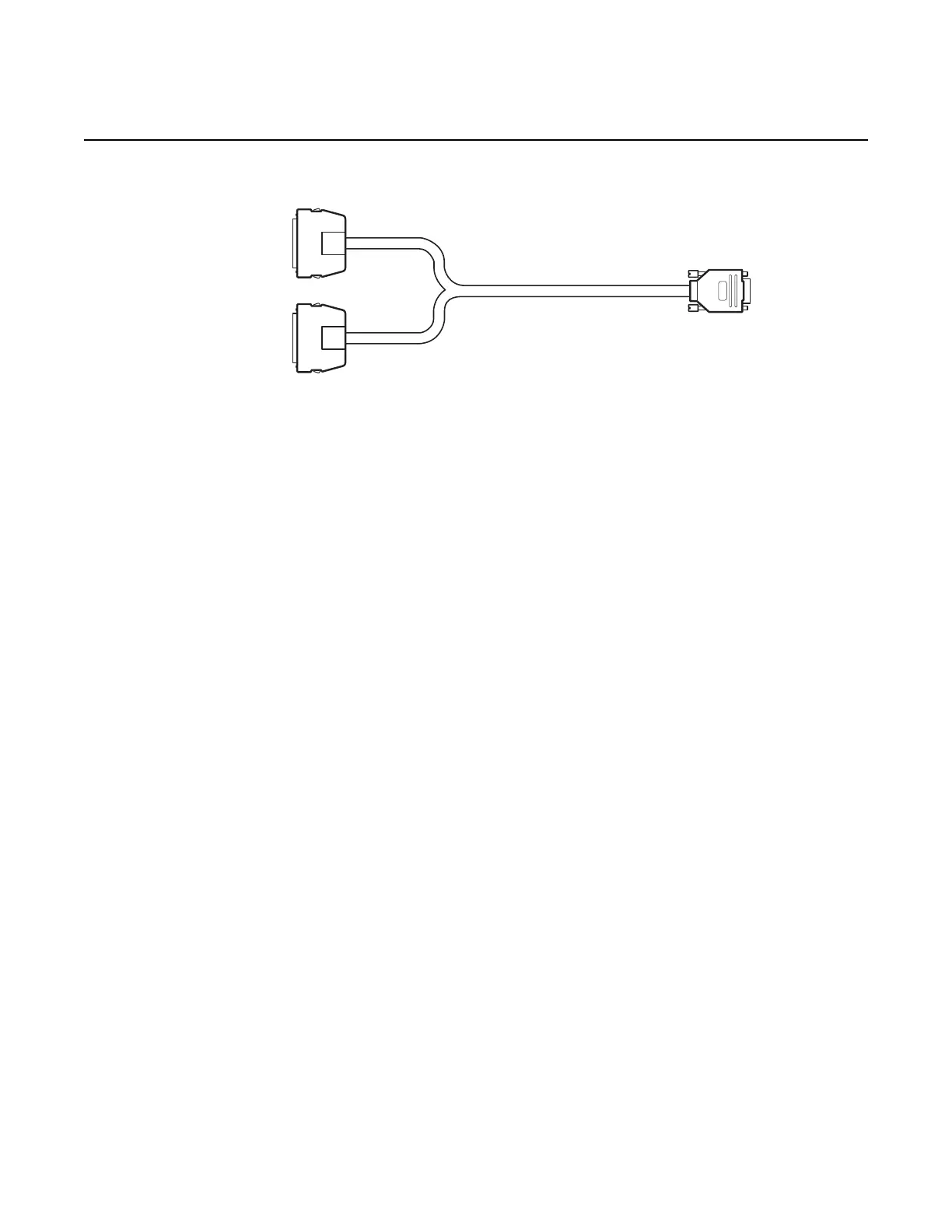

Figure 242 7360 ISAM WM alarm cable
22.6.1 Alarm cable routing connection
The alarm cable is routed from the FWPC-A at the front of the 7360 ISAM WM,
through the right side of the rack, and connected to the alarm connector on the right
side of the 7360 ISAM FX-16 shelf; see Figure 243.
The male DB50 connector should be connected to the alarm connector of the
7360 ISAM FX-16, and the female DB50 connector should be connected to the rack
CO alarm cable.
