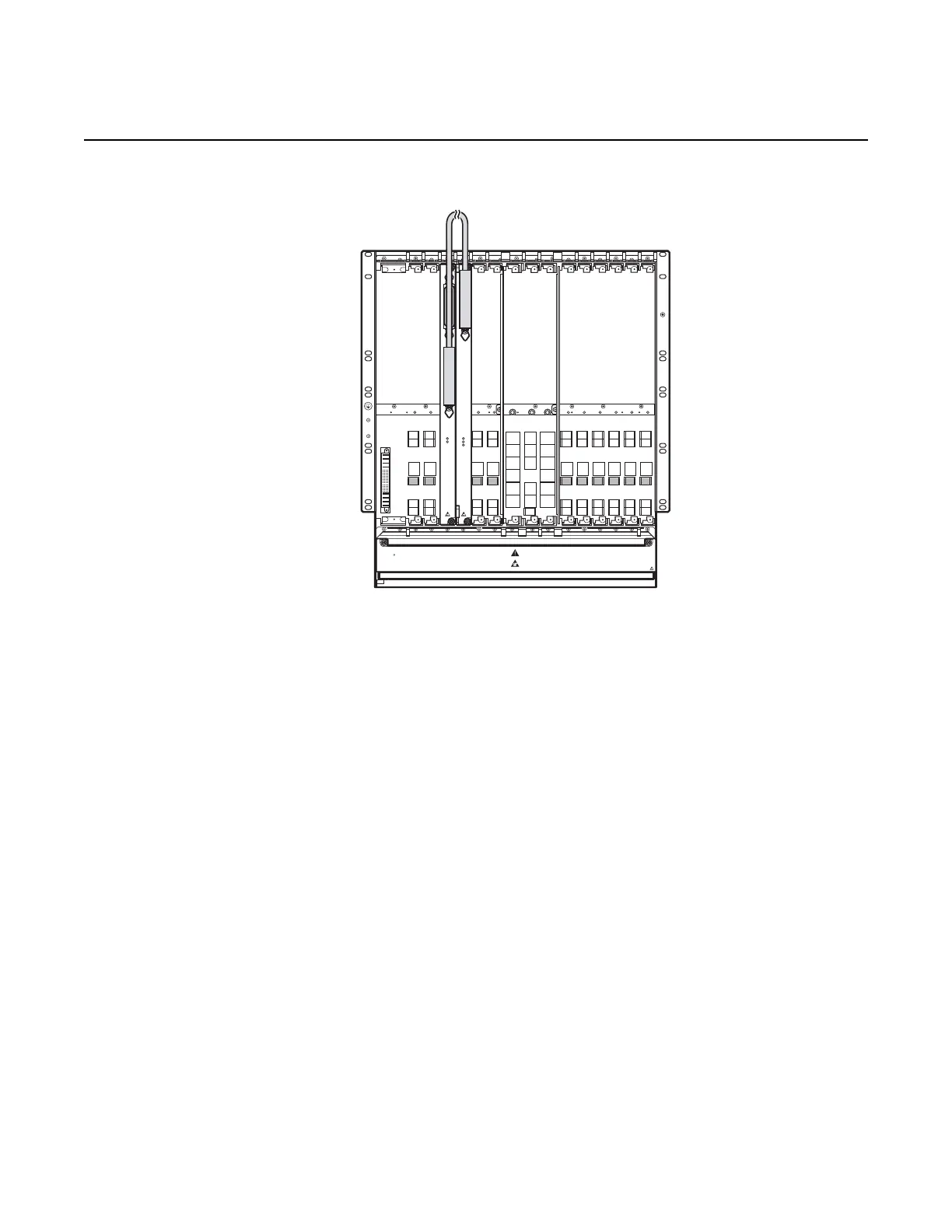

Figure 87 Combo cable connection on 7360 ISAM FX-12
10.11 POTS and LINE MDF cable connector
This section describes the procedures to install MDF cables (xDSL and POTS)
between the 7360 ISAM FX-12 and the Main Distribution Frame (MDF).
10.11.1 MDF cable type
The following cables can be used:
• for 24-line and 48-line cards: an MDF cable with two bundles of 24-pair cables and
one CHAMP100 connector; see Figure 88.
24946
GF C LT1 LT2 LT 3 LT4 LT6 NTA NTB NTIO LT5 LT7 LT8 LT9 LT10 LT12LT11
Alarm
ENERGY HAZARD
ROATING FAN BLADES
KEEP FINGERS AWAY FROM
TOP AND BOTTOM OF FAN TRAY
xDSL
PWR
ALM
MAJ
POTS LINE
PWR
ALM
