Installing a 7360 ISAM FX-12 shelf
166
ANSI Hardware Installation Manual
3HH-12893-AAAA-TCZZA Issue: 09
DRAFT
4 Verify if the fan unit type is correct for the rack configuration. See Table 7.
5 Remove the installed fan unit:
i Loosen the captive screws of the fan cover and remove the cover; see Figure 77.

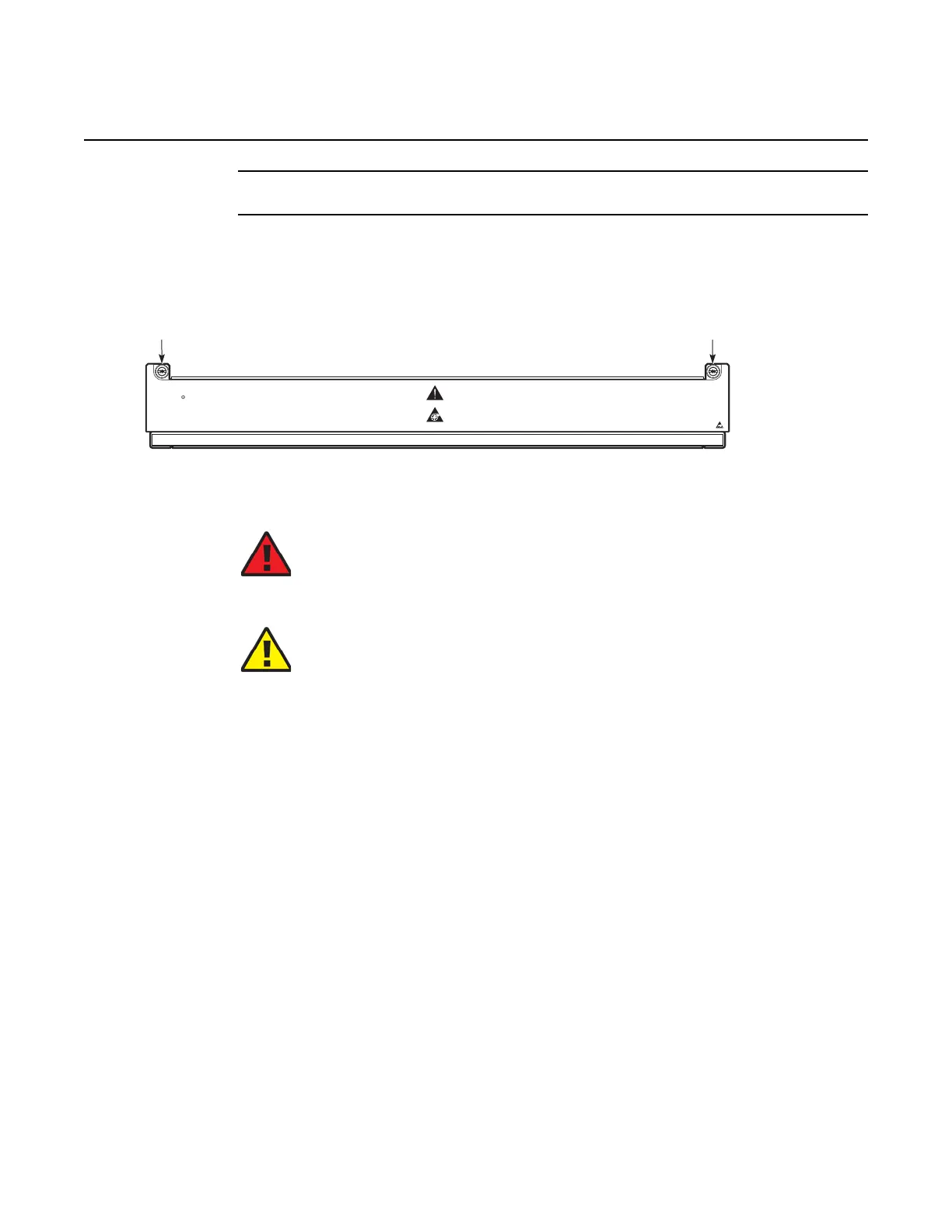

Figure 77 Remove the fan cover
ii Pull the unit out of the fan area by the handles; see Figure 78.
Alarm
ENERGY HAZARD
ROATING FAN BLADES
KEEP FINGERS AWAY FROM
TOP AND BOTTOM OF FAN TRAY
24846
Captive screw Captive screw
Danger — When the fan unit is extracted, the fans will still be rotating.
Do not to touch the fans, because this may cause bodily harm.
Caution — To prevent possible damage to equipment, take care to not
allow dust into the cage card area, or onto card components, when
removing the fan filter.
