6 Ensure the drip tray is installed in the correct mounting position in the shelf.
7 Mount the shelf in the first lower mounting position in the rack by lifting the shelf over the
installed drip tray and then lowering it slowly into the correct mounting position. Attach the
shelf using the ten 12 × 24 1/2 in. (12 mm) hex screws provided in the bag labeled ‘Use these
screws to mount shelf to equipment rack’.
Figure 23 shows the previously installed bottom drip tray, and then the mounting of a lower
7360 ISAM FX-16 shelf in a 23 in. rack.

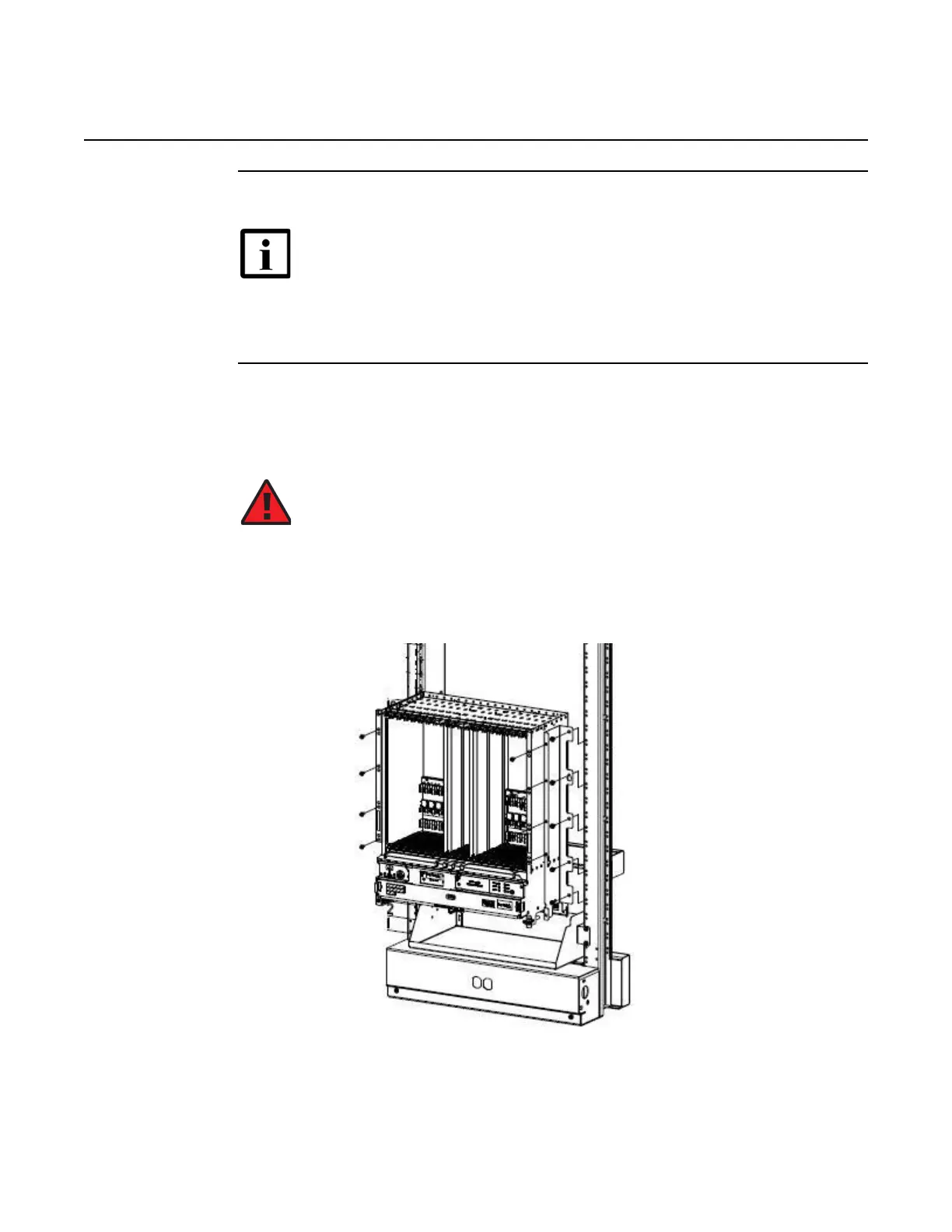

Figure 23 Mounting 7360 ISAM FX-16 lower shelf in a 23 in. rack
Note 1 — The drip tray must be installed prior to mounting the shelf in
the rack. See 5.3 “Installing a drip tray below a 7360 ISAM FX-16 shelf”.
Note 2 — Once the drip tray is installed, the 7360 ISAM FX-16 shelf
must be lifted over the drip tray and then lowered into the correct
mounting position to avoid interference between the shelf and the drip
tray side walls.
Danger — Risk of physical harm or damage when lifting shelf.
The shelf must be lifted by two persons. Pay attention to possible sharp
edges, when handling. It is advisable to wear protective gloves.
